SMC CA2‑40Z‑PS Cylinder Repair Kit NBR Rod Piston Cushion Seal Set For 40mm Bore CA2 Standard Pneumatic Cylinder Includes Lubricating Grease Pack

Product Description:

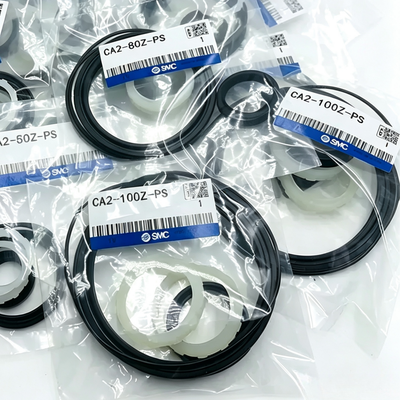

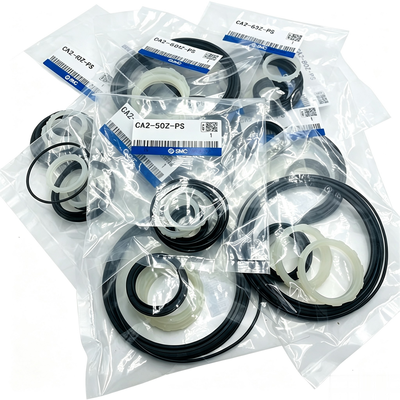

These tie rod cylinder seal kits are precisely engineered replacement sets specifically designed for the maintenance and overhaul of CA2 series standard pneumatic cylinders. They are available for cylinder bore sizes ranging from 40mm up to 100mm. Each kit includes all the essential sealing components needed for a complete cylinder rebuild, such as the cushion seal, rod seal, piston seal, and cylinder tube gasket. Additionally, every seal kit comes with a grease pack to ensure proper lubrication during installation, with quantities adjusted according to bore size: 10g for 40-50mm, 20g for 63-80mm, and 30g for 100mm bore cylinders.

The seals included in these kits are crafted from premium materials to guarantee durability and reliable operation. Urethane is used for the cushion seal, while NBR (nitrile rubber) is employed for the rod seal, piston seal, and cylinder tube gasket. These materials provide excellent resistance against wear, oil exposure, and abrasion, making them ideal for pneumatic applications. Furthermore, the CA2-Z series cylinders utilizing these seals are approximately 15% lighter than the original CA2 cylinders and meet RoHS compliance standards.

Regular replacement of seals with these kits is essential to restore the cylinder’s optimal performance, prevent air leakage, and significantly extend the service life of existing actuators. This maintenance approach offers a cost-effective alternative to full cylinder replacement. It is important to note that the cushion valve seal is a non-replaceable component and therefore is not included in the seal kit. Additionally, for cylinders with trunnion mounting types, seal replacement is generally not recommended due to the challenges associated with realigning components during reassembly.

Features:

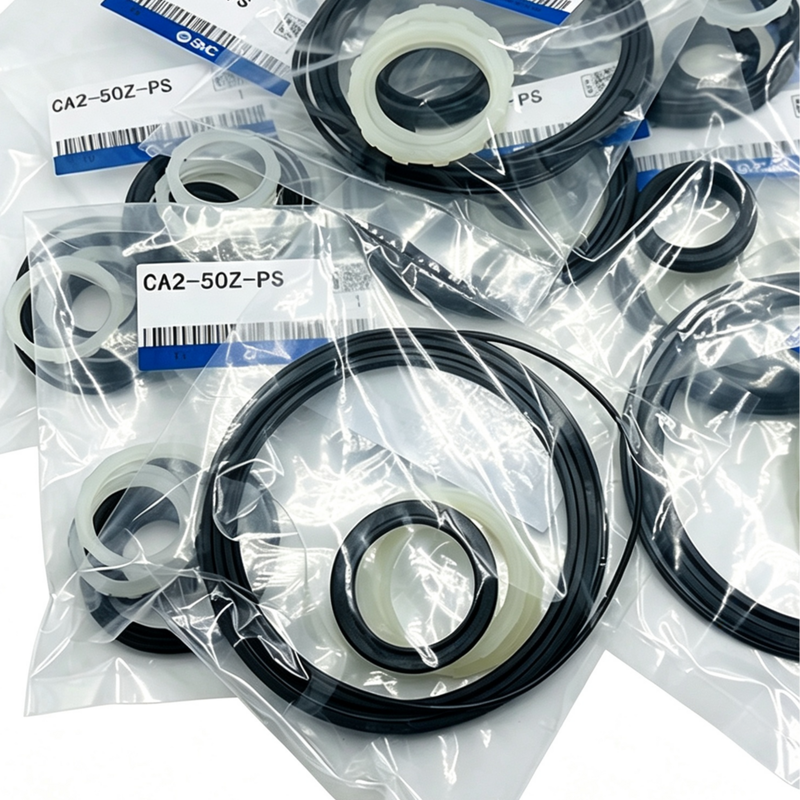

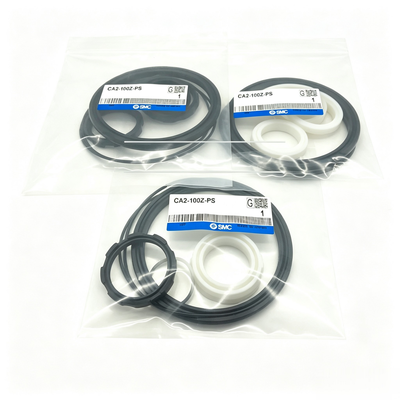

The complete seal kit contains all the necessary components for a full cylinder rebuild. Each kit is equipped with a cushion seal, rod seal, piston seal, and cylinder tube gasket to ensure comprehensive replacement and optimal performance.

This seal kit is available in a broad range of bore sizes, including 40mm, 50mm, 63mm, 80mm, and 100mm, catering to various cylinder specifications and requirements.

Manufactured with high-quality materials, the cushion seal is made of durable urethane, while the rod seal, piston seal, and tube gasket are crafted from NBR (Nitrile Butadiene Rubber). These materials provide excellent resistance against oil and wear, enhancing the longevity and reliability of the seals.

Specifically designed for compatibility with the CA2 series, these kits fit the CA2-Z series standard tie rod pneumatic cylinders. This ensures a perfect match and seamless integration during maintenance.

Each kit also includes a grease pack, which aids in proper lubrication during installation, extending the life of the seals and maintaining cylinder efficiency.

By replacing worn or damaged seals, the kit effectively eliminates air leakage within the cylinder. This restoration helps recover the original force and speed of the pneumatic cylinder, resulting in improved overall performance.

The seal kits are tailored for use with the lightweight CA2-Z series cylinders, which are approximately 15% lighter compared to standard CA2 cylinders, contributing to easier handling and installation.

From a maintenance perspective, this seal kit offers a cost-effective solution. It provides a more affordable alternative to purchasing a new cylinder while significantly extending the service life of the actuator.

The operating temperature range for these seals spans from -10°C to +70°C, making them suitable for a wide variety of applications. Additionally, they support operating pressures between 0.05 to 1.0 MPa, accommodating typical pneumatic system requirements.

These products comply with RoHS standards, ensuring they meet necessary environmental and safety regulations important for sustainable manufacturing and use.

For inventory management, the seal kits are designed with simplicity in mind — featuring a single kit number per bore size. This makes stocking and ordering more straightforward for businesses.

Moreover, grease packs are available separately under product codes GR-S-010 (10g) and GR-S-020 (20g) to suit individual lubrication needs beyond the included pack in the kit.
