Product Description:

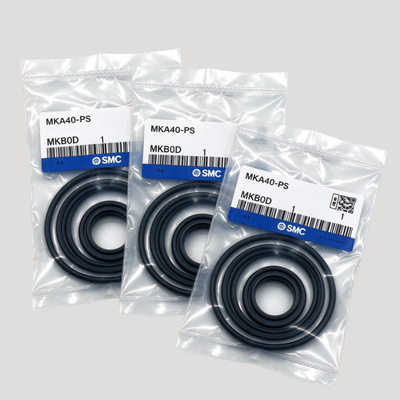

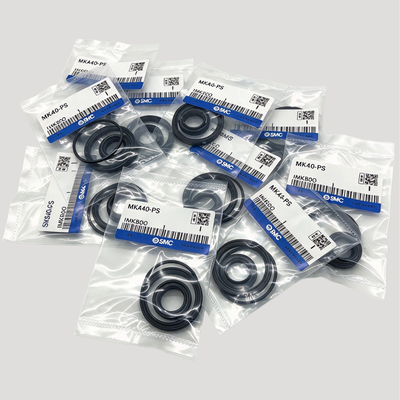

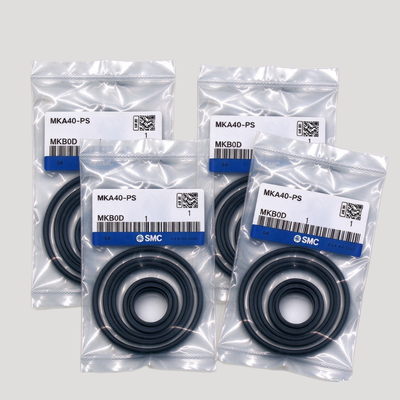

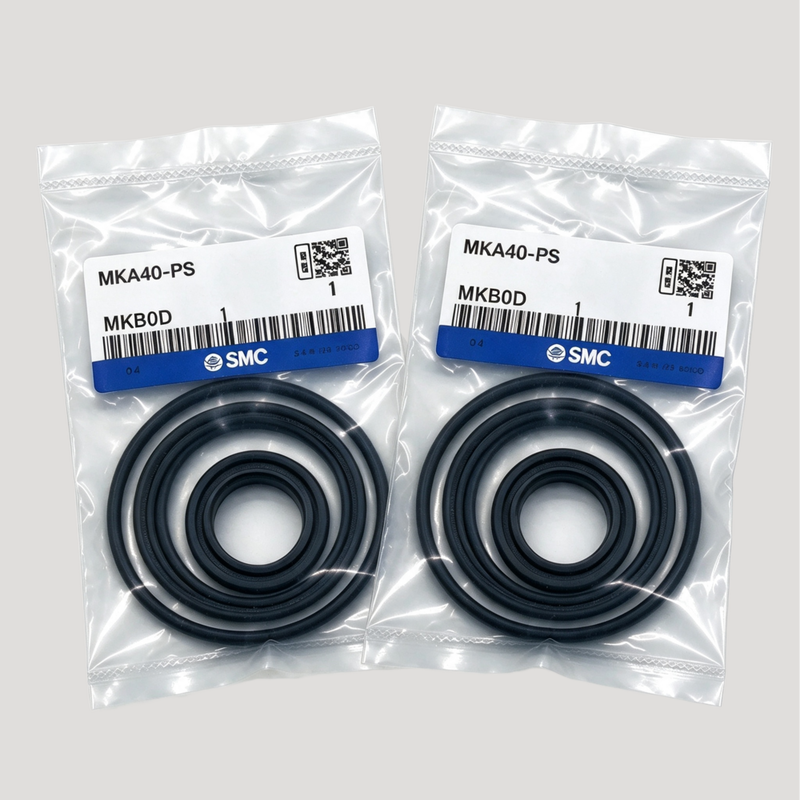

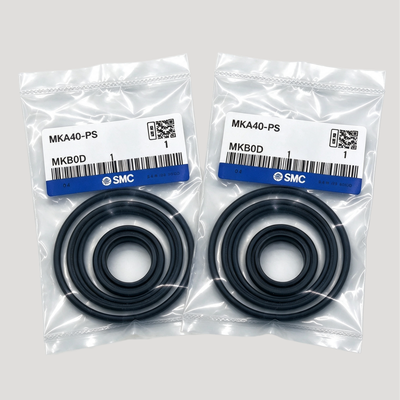

These rotary clamp cylinder seal kits are carefully crafted replacement sets, specifically designed for the maintenance and overhaul of the MKA and MKB series pneumatic rotary clamp cylinders. They cater to bore sizes ranging from 16mm up to 63mm. Each kit is equipped with the essential sealing components needed to perform a thorough cylinder rebuild, including a wiper ring, piston seal, rod seal, valve seal, and tube gasket. Additionally, every seal kit comes with a grease pack to ensure proper lubrication during installation—10g for bores between 16mm and 50mm, and 20g for 63mm bores.
The seals are made from premium materials to guarantee durability and performance. NBR (nitrile rubber) is used for the piston seal, rod seal, valve seal, and tube gasket, while the cushion seal is crafted from urethane. These materials provide excellent resistance to wear, oil, and abrasion, ensuring reliable operation in demanding pneumatic clamping applications. The MKA and MKB series cylinders are engineered to combine both linear and rotary motion, delivering precise and consistent clamping force even within tight spaces commonly found in automated systems.
Regular replacement of seals using these kits helps restore the original performance of the cylinders, prevents air leakage, and significantly extends the service life of existing actuators without the high cost of full replacements. It is important to note that the cushion valve seal is a non-replaceable component and therefore is not included in these seal kits.
Features:
The Complete Seal Kit provides everything needed for a full cylinder rebuild. Each kit contains essential components such as a wiper ring, piston seal, rod seal, valve seal, and tube gasket, ensuring a comprehensive repair solution.
Available in a wide range of bore sizes, the kits accommodate 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm cylinders. This variety makes it easy to find the perfect fit for your specific application.
High-quality materials are used for the seals, including NBR and urethane. NBR seals are known for their excellent resistance to oil, while the urethane cushion seal provides dependable cushioning at the end of the stroke to protect the cylinder.
These kits are compatible with MKA and MKB series rotary clamp cylinders. Specifically, they are designed for MKA models with both ends tapped and MKB models featuring through-hole basics, ensuring seamless integration.
To facilitate proper installation, each kit comes with a grease pack. This allows for correct lubrication of components during assembly, enhancing the longevity and performance of the cylinder.
Replacing worn seals with this kit restores the original clamping force, operational speed, and rotary motion precision. This maintenance step is crucial for maintaining the functionality and reliability of your equipment.
Offering a cost-effective alternative to purchasing a new cylinder, the seal kit significantly extends the service life of actuators while reducing overall maintenance expenses.
The design supports quick and easy installation using standard tools, minimizing downtime and labor costs associated with cylinder rebuilds.
Engineered to operate within a temperature range of -10°C to +70°C, the seals perform reliably in various environmental conditions.
Lastly, inventory management is simplified by providing one kit number per bore size. This streamlines stocking and ordering processes, enhancing convenience for maintenance teams.
Technical Parameters:
| Series |
MKA / MKB |
| Cushion Type |
Rubber Bumper |
| Operating Temperature |
-10°C To +70°C |
| Action Type |
Double Acting, Rotary Clamp |
| Kit Contents |
Wiper Ring, Piston Seal, Rod Seal, Valve Seal, Tube Gasket |
| Bore Sizes |
16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm |
Applications:
Automated Clamping Systems
We specialize in the maintenance of rotary clamp cylinders used in precision clamping operations. Ensuring these components operate smoothly is critical for maintaining accuracy and efficiency in automated systems.
Pick and Place Units
Our services include the repair of clamp cylinders utilized in pick-and-place machines and assembly systems. Proper cylinder functionality is essential to achieve reliable and repeatable positioning during manufacturing processes.
Material Handling Equipment
We offer seal replacement for clamp cylinders used in material handling and positioning equipment. Replacing worn seals helps prevent leaks and maintains optimal performance in demanding operational environments.
Packaging Machinery
Maintenance services for clamp cylinders in packaging and filling machines are another area of our expertise. Regular upkeep contributes to minimizing downtime and ensuring smooth operation within packaging lines.
Electronic Component Manufacturing
We provide cylinder repair solutions specifically designed for precision assembly equipment used in electronic component manufacturing. Our work helps maintain the high standards required in this industry.
General Industrial Pneumatics
For any industrial application that demands reliable sealing of rotary clamp cylinders, our services are fully equipped to deliver dependable maintenance and repair, ensuring the longevity and effectiveness of pneumatic systems.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a variety of industrial applications. For technical support, please refer to the detailed installation and maintenance manuals provided with the product. Ensure the cylinder is installed according to the specified guidelines to prevent operational issues.
Regular maintenance is recommended to extend the life of the pneumatic cylinder. This includes checking for air leaks, inspecting seals and rods for wear or damage, and ensuring proper lubrication as specified in the manual. Replacement parts and accessories are available to maintain optimal performance.
For troubleshooting common issues such as air leakage, abnormal noise, or reduced stroke efficiency, consult the troubleshooting section in the product documentation. Proper adjustment of air pressure and alignment can often resolve these problems.
Our technical support team is available to assist with more complex inquiries, including customization options, integration with existing systems, and performance optimization. Please have your product model number and specifications ready when seeking assistance.
We are committed to providing high-quality service to ensure your Piston Pneumatic Cylinder operates smoothly and meets your application needs. For further information about product updates, maintenance tips, and service options, please refer to our official product website or authorized distributor channels.
Packing and Shipping:
Product Packaging: Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static bubble wrap to prevent any surface damage. It is then placed in a sturdy, custom-fitted cardboard box with foam inserts to secure the product firmly in place. The packaging is labeled clearly with product details, handling instructions, and safety warnings to ensure proper care.
Shipping: We offer reliable shipping options to deliver your Piston Pneumatic Cylinder promptly and safely. Orders are processed within 1-2 business days, and shipping times vary depending on the destination. The product is shipped via trusted carriers with tracking available for all shipments. For international orders, customs documentation is included to facilitate smooth delivery. We also provide insurance options to cover any damage or loss during transit.
