Product Description:

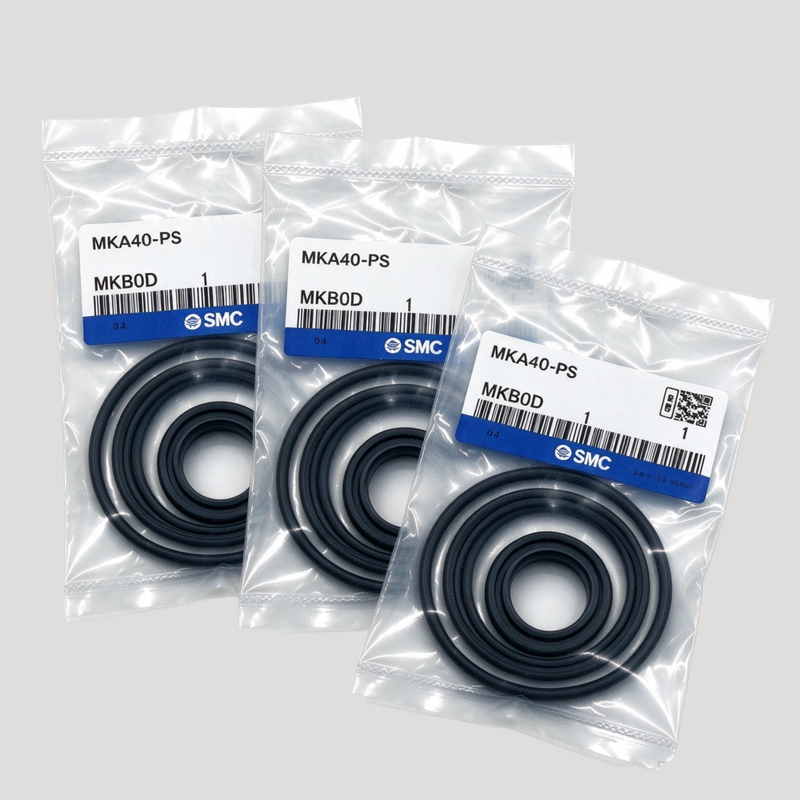

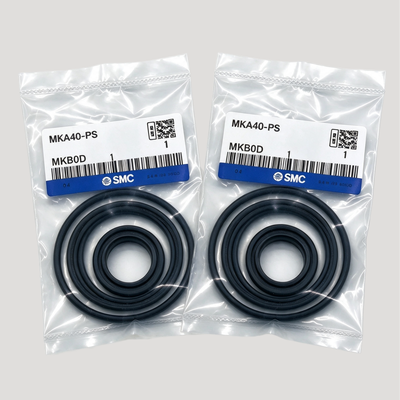

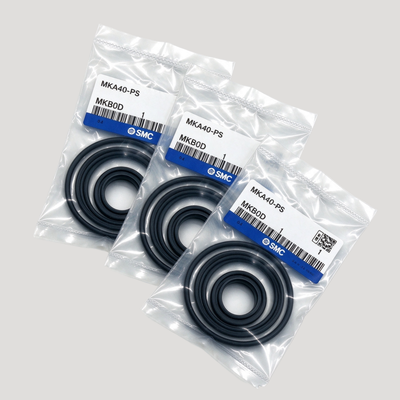

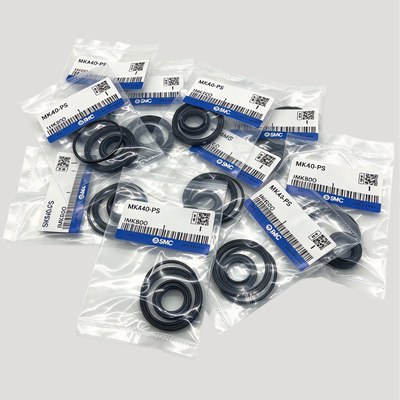

These rotary clamp cylinder seal kits are meticulously engineered replacement sets tailored for the maintenance and refurbishment of MKA and MKB series pneumatic rotary clamp cylinders. Designed to accommodate bore sizes ranging from 16mm to 63mm, each kit includes all the essential sealing components needed for a comprehensive cylinder rebuild. The components provided are a wiper ring, piston seal, rod seal, valve seal, and tube gasket. Additionally, every kit comes with a grease pack to ensure proper lubrication during installation—10g for bore sizes between 16mm and 50mm, and 20g for the 63mm bore size.
The seals are crafted from premium materials to guarantee durability and effective performance. NBR (nitrile rubber) is used for the piston seal, rod seal, valve seal, and tube gasket, offering excellent resistance against wear, oil, and abrasion. Meanwhile, urethane is employed for the cushion seal. Such high-quality materials ensure reliable operation in demanding pneumatic clamping environments. The MKA and MKB series cylinders are notable for combining both linear and rotary movements, enabling precise clamping actions within automated systems and delivering consistent force even in limited spaces.
Consistently replacing seals with these kits helps restore the cylinders’ optimal performance by preventing air leakage and significantly extending the service life of existing actuators. This maintenance approach provides a cost-effective alternative compared to full actuator replacements. It is important to note that the cushion valve seal is not replaceable and, therefore, is not included in the seal kit.
Features:
The Complete Seal Kit is a comprehensive set designed for a full cylinder rebuild. Each kit contains essential components such as the wiper ring, piston seal, rod seal, valve seal, and tube gasket, ensuring every part needed for effective maintenance is included.
These kits are available in a wide range of bore sizes, including 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm. This variety ensures compatibility with various cylinder dimensions to meet different application requirements.
Crafted from high-quality materials, the seals utilize NBR (nitrile butadiene rubber) for excellent oil resistance, while the urethane cushion seal provides dependable end-of-stroke cushioning. This combination enhances durability and performance.
The seal kits are specifically designed to be compatible with the MKA and MKB series rotary clamp cylinders. This includes MKA cylinders with both ends tapped and MKB cylinders featuring a through-hole basic design.
For convenience during installation, each kit also comes with a grease pack. This grease ensures proper lubrication, contributing to easy assembly and smooth operation after replacement.
By replacing worn seals using these kits, the original clamping force, speed, and rotary motion accuracy of the cylinder can be restored effectively. This maintenance step is crucial to maintaining optimal cylinder performance.
Opting for this seal kit offers a cost-effective maintenance solution. It is priced at a fraction of the cost of purchasing a new cylinder, while significantly extending the service life of your actuator.
The design allows for quick and easy installation with commonly available tools. This user-friendly setup reduces downtime and simplifies the replacement process.
Suitable for a wide operating temperature range from -10°C up to +70°C, these seal kits perform reliably under various environmental conditions.
Additionally, having one standardized kit number per bore size simplifies inventory management. This makes stocking and ordering more efficient for maintenance teams.
