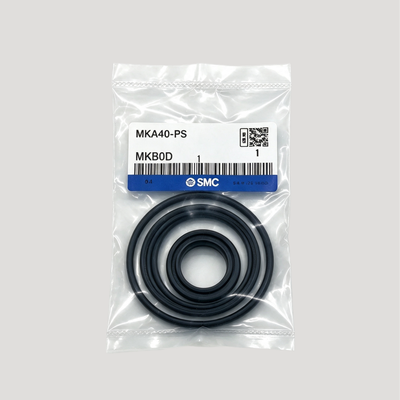

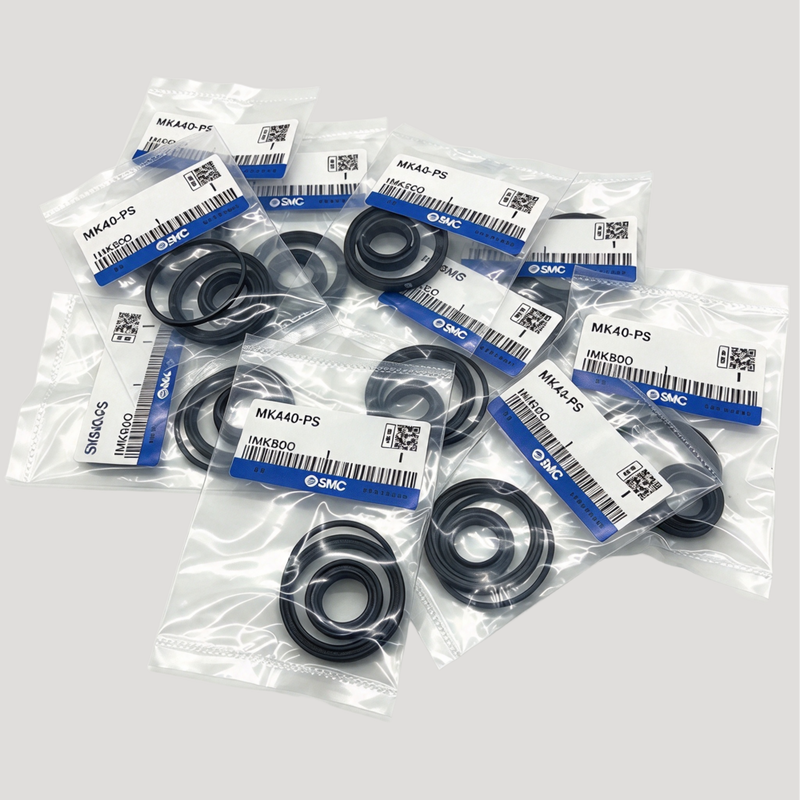

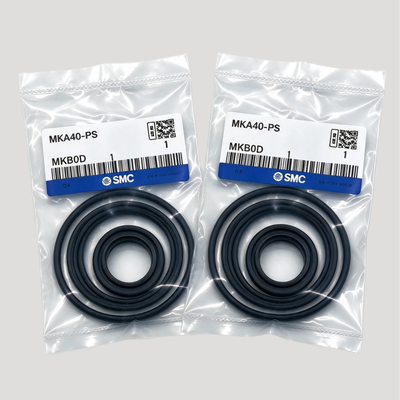

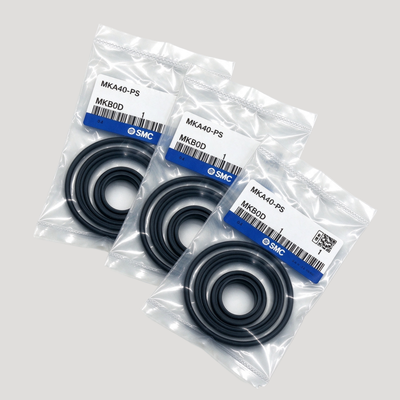

MKB/MKA40-PS Seal Repair Pack For SMC MK Series Rotary Swing Clamp Air Cylinder Contains Rod Seal And Wear Ring For Workshop On Site Service

Product Description:

These rotary clamp cylinder seal kits are carefully crafted replacement sets specifically designed for the maintenance and complete overhaul of MKA and MKB series pneumatic rotary clamp cylinders. Catering to bore sizes ranging from 16mm up to 63mm, each kit is equipped with all the essential sealing components necessary for a thorough cylinder rebuild. The components include a wiper ring, piston seal, rod seal, valve seal, and tube gasket, ensuring a comprehensive restoration of sealing functionality.

In addition to the sealing elements, each kit also provides a grease pack to facilitate proper lubrication during installation. The grease quantity varies depending on the bore size: 10 grams for bore sizes between 16mm and 50mm, and 20 grams for the 63mm bore size. This inclusion helps maintain optimal performance and longevity of the rotary clamp cylinders after servicing.

The seals in these kits are constructed from high-quality materials, ensuring durability and reliable operation. NBR (nitrile rubber) is used for the piston seal, rod seal, valve seal, and tube gasket due to its excellent resistance to wear, oil, and abrasion. Meanwhile, urethane is employed for the cushion seal, providing added durability where it's needed most. The MKA and MKB series cylinders themselves combine both linear and rotary motion to deliver precise clamping within automated systems, offering consistent force even in limited spaces.

By performing regular seal replacements with these kits, users can effectively restore the cylinder's performance, prevent air leakage, and significantly extend the service life of existing actuators. This approach offers a cost-effective alternative to complete cylinder replacement. It is important to note that the cushion valve seal is a non-replaceable component and therefore is not included within the seal kit.

Features:

The Complete Seal Kit contains everything needed for a comprehensive cylinder rebuild. Each kit comes equipped with a wiper ring, piston seal, rod seal, valve seal, and tube gasket, ensuring a full and thorough refurbishment.

These kits are available in a wide range of bore sizes, including 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm. This variety guarantees a perfect fit for many applications.

High-quality materials are used in the seals; NBR seals provide excellent resistance to oil, while the urethane cushion seal ensures dependable cushioning at the end of the stroke. This combination enhances durability and performance.

The kits are specifically designed to be compatible with MKA and MKB series rotary clamp cylinders. This includes MKA cylinders with both ends tapped and MKB cylinders featuring a through-hole basic design.

Each kit also includes a grease pack to facilitate proper lubrication during installation, helping to maintain optimal function and longevity of the seals.

By replacing worn seals with this kit, users can effectively restore the original clamping force, operational speed, and rotational precision of their cylinders, ensuring consistent and reliable performance.

This seal kit offers a cost-effective maintenance solution, providing a budget-friendly alternative to purchasing a new cylinder while significantly extending the service life of the actuator.

Installation is quick and straightforward, designed to be performed using standard tools, which minimizes downtime and simplifies maintenance procedures.

The seals are suitable for operating temperatures ranging from -10°C to +70°C, making them versatile for various working environments.

Inventory management is simplified with a single kit number assigned per bore size, streamlining stocking and ordering processes.

Technical Parameters:

Applications:

Maintenance of rotary clamp cylinders is essential for ensuring precision in clamping operations. Proper upkeep helps maintain accuracy and prolongs the lifespan of the equipment.

Repair services for clamp cylinders used in pick-and-place and assembly systems are vital. These repairs ensure smooth functioning and minimize downtime in automated workflows.

Replacing seals on clamp cylinders within handling and positioning machinery is a key maintenance task. Effective seal replacement prevents leaks and maintains operational efficiency.

Routine maintenance of clamp cylinders in packaging and filling machines ensures consistent performance and reduces the risk of unexpected failures during production.

In precision assembly equipment for electronic components, timely cylinder repairs contribute to maintaining high-quality standards and reliable manufacturing processes.

For a wide range of applications requiring dependable sealing of rotary clamp cylinders, maintenance and repair services are crucial. Ensuring the reliability of these components supports overall industrial productivity.

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. For technical support, please ensure you have the model number, specifications, and operating conditions ready to help us assist you more effectively.

We offer comprehensive services including installation guidance, troubleshooting, maintenance advice, and repair support. Our technical team is equipped to help you optimize the performance and longevity of your pneumatic cylinder.

For maintenance, regularly inspect the cylinder for signs of wear or damage, ensure proper lubrication, and verify that all fittings and connections are secure. Avoid exposure to corrosive environments unless the cylinder is specifically rated for such conditions.

If you encounter any operational issues such as air leaks, unusual noises, or reduced performance, consult the troubleshooting section of the user manual or contact our support team for detailed assistance.

Spare parts and replacement components are available to ensure minimal downtime. We recommend using only genuine parts to maintain product integrity and warranty coverage.

For custom applications or special requirements, our engineering team can provide tailored solutions to meet your specific needs. Please prepare detailed application information to facilitate this process.

Your satisfaction and the optimal functioning of your Piston Pneumatic Cylinder are our priorities. We are committed to providing prompt, professional, and knowledgeable support throughout the lifecycle of your product.
