Product Description:
The Norgren F07, F72G, and F73G series are general purpose filters engineered to eliminate water, oil, and solid particles from compressed air systems. By doing so, they protect downstream pneumatic equipment from potential contamination and corrosion. These filters are ideal for applications including industrial automation, packaging machinery, material handling, and various pneumatic systems where the use of clean, dry air is critical for ensuring dependable performance.
The F07 series represents a range of miniature filters equipped with G1/8 and G1/4 ports, making them perfect for installations where space is limited. Constructed with a zinc alloy body and a polycarbonate bowl, these filters provide 360-degree visibility of condensate levels. They typically handle a flow rate of 9 liters per second and can operate at pressures up to 10 bar.

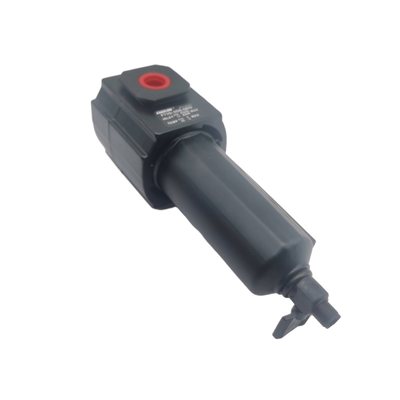

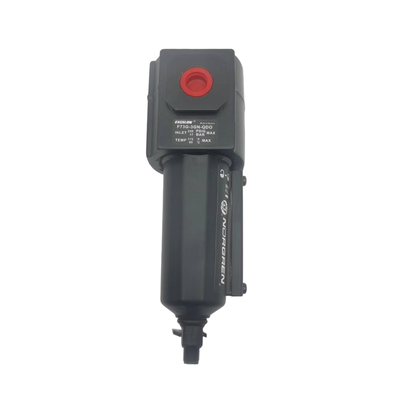

Meanwhile, the F72G and F73G series belong to the Excelon modular system, which supports both in-line and modular configurations alongside other Excelon air preparation products. The F72G filters are constructed with a zinc body, whereas the F73G series utilizes an aluminium body. Both feature polycarbonate bowls with a quick-release bayonet design for ease of maintenance. The flow rates for these filters are 30 liters per second for the F72G and 35 liters per second for the F73G, and both can withstand a maximum operating pressure of 10 bar.
All models in these series are equipped with filter elements available in 5 μm or 40 μm ratings. They offer options for either manual or automatic drainage, and their polycarbonate bowls can be fitted with optional metal guards to withstand harsh working environments. The transparent bowls facilitate easy visual monitoring of condensate levels, while the modular design streamlines maintenance procedures and allows for straightforward system expansion.
Features:
General Purpose Filtration
The filtration system is designed to effectively remove water, oil, and solid particles from compressed air lines. This purification process helps safeguard downstream equipment, ensuring optimal performance and longevity.
Multiple Series for Various Flow Rates
To accommodate different system sizes, several series are available: the F07 with a flow rate of 9 L/s, the F72G at 30 L/s, and the F73G offering 35 L/s. These options enable users to select the appropriate filter based on their specific flow requirements.
Excelon Modular System Compatibility
The F72G and F73G filter models are designed for flexible installation. They can be used either inline or as part of the modular Excelon air preparation system, allowing seamless integration with other Excelon products.
Compact and Space-Saving Design
The F07 series features a compact miniature design, making it particularly suitable for installation in tight spaces and smaller pneumatic systems where space is at a premium.
Clear Polycarbonate Bowls for Easy Monitoring
Equipped with transparent polycarbonate bowls, these filters offer 360-degree visibility of condensate levels. This feature allows for simple and efficient monitoring without the need to disassemble the unit.
Quick-Release Bayonet Bowl Design
The bowls on the F72G and F73G models incorporate a quick-release bayonet mechanism. This design enables fast and tool-free removal, simplifying maintenance procedures significantly.
Variety of Filter Elements
Filter elements are available in different grades to meet various filtration needs. Options include 5 μm or 40 μm sintered polypropylene elements, allowing users to choose based on the required level of filtration.
Drain Options for Condensate Removal
For convenience, both manual and automatic drain options are offered. This flexibility ensures efficient condensate removal tailored to the user's operational preferences.
Robust Construction Materials
The bodies of the filters are constructed from durable zinc and aluminium materials, providing strength and resilience suitable for demanding industrial environments.
Operating Specifications
The filters with transparent bowls have a maximum operating pressure of 10 bar. They are also designed to function reliably across a wide temperature range, from -34°C to +50°C.
Optional Metal Bowl Guard
For applications in harsh conditions, an optional metal bowl guard is available to offer additional protection and enhance the durability of the filtration system.
Technical Parameters:
| Port Sizes |
G1/8, G1/4, G3/8 |
| Filtration Options |
5 μm, 40 μm |
| Operating Temperature |
-34°C To +50°C |
| Drain Types |
Manual, Automatic |
| Body Material |
Zinc Alloy |
| Bowl Material |
Polycarbonate |
Applications:
Industrial Automation
Ensuring a clean air supply is essential for the optimal performance of pneumatic actuators, valves, and cylinders used in industrial automation. This clean air helps maintain the reliability and longevity of these components.
Packaging Machinery
Pneumatic components within packaging and filling machines require protection from contaminants to operate efficiently. Clean air filtration safeguards these components, preventing malfunctions and enhancing overall equipment effectiveness.
Material Handling
In material handling systems such as conveyors and pick-and-place units, air filtration plays a critical role in maintaining the smooth operation of pneumatic controls by filtering out impurities from the compressed air supply.
General Pneumatic Systems
Within manufacturing facilities, removing contaminants from compressed air lines is vital for reliable pneumatic system performance. Effective filtration ensures cleaner compressed air, reducing wear and prolonging equipment life.
Compressed Air Distribution
At the point of use, filtration is important for tools and machinery that rely on compressed air. Clean air distribution prevents damage caused by dirt or moisture, thus improving functionality and maintenance intervals.
Food and Beverage Processing
In food and beverage production lines, supplying dry and filtered air is crucial for packaging and processing operations, ensuring product safety and compliance with hygiene standards.
Textile Machinery
Textile manufacturing makes use of pneumatic controls that depend on clean air filtration to operate efficiently. This prevents contamination and helps maintain the quality of textile production.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing precise air filtration, pressure regulation, and lubrication. To maintain the efficiency and reliability of your FRL, regular inspection and maintenance are recommended.
For technical support, please ensure you have your product model number and serial number available. Our support team can assist with installation guidance, troubleshooting common issues, and preventive maintenance tips. We offer detailed product manuals and datasheets to help you understand the specifications and operational parameters of your FRL unit.
If you encounter any performance issues such as pressure fluctuations, air leaks, or lubrication failures, verify that the filter element is clean and replace it if necessary. Check that the regulator knob is set to the desired pressure and that the lubricator reservoir contains the appropriate lubricant at the correct level.
Spare parts and replacement components are available to ensure your FRL unit continues to operate at peak efficiency. We recommend using only genuine parts to maintain product integrity and compliance with safety standards.
For extended service and customized maintenance plans, our technical service team can provide on-site support and training to your staff. This includes system audits, component upgrades, and performance optimization tailored to your specific application requirements.
Regular maintenance and proper usage will help maximize the lifespan and functionality of your Pneumatic Filter Regulator Lubricator, reducing downtime and operational costs. Please refer to the product manual for detailed maintenance schedules and safety precautions.
