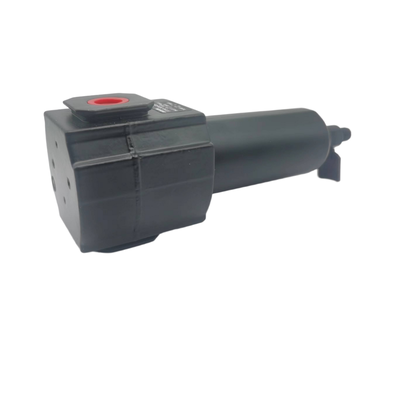

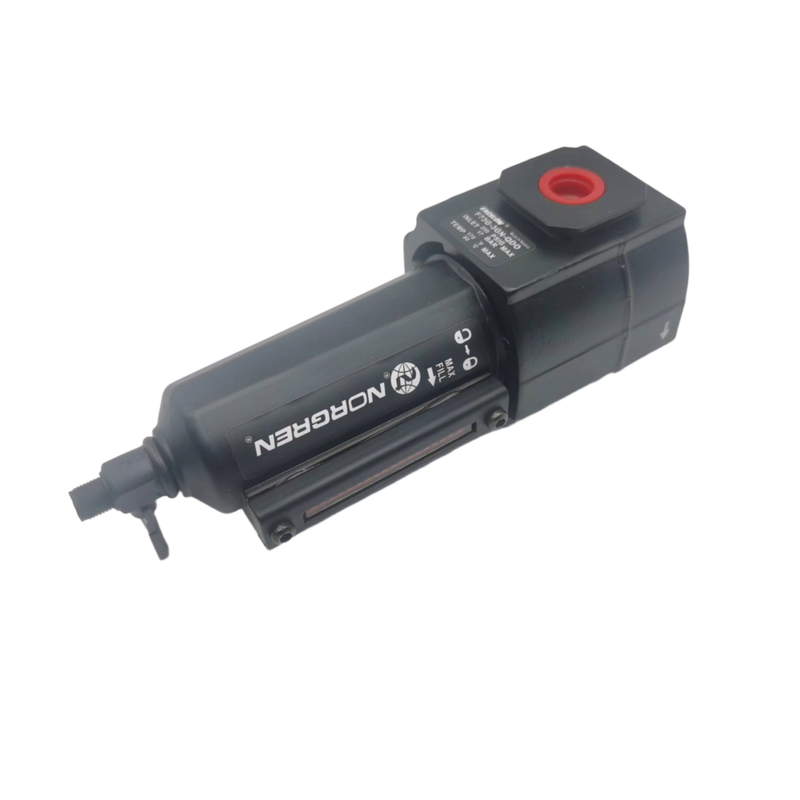

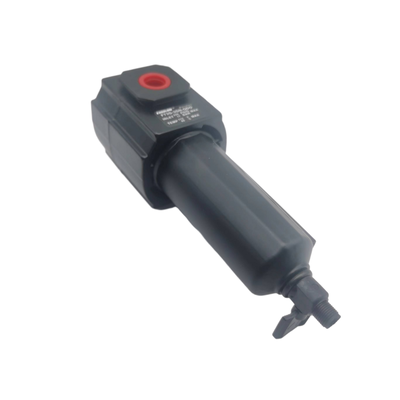

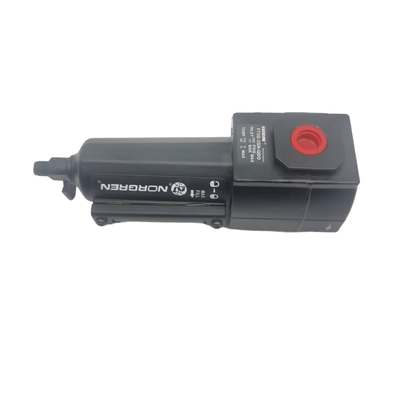

NORGREN F73G‑3GN‑QT3 F73G‑3GN‑QT1 F73G Series Pneumatic Purification Filter Zinc Alloy Housing Sintered PP Cartridge For Mid‑Flow Compressed Air Workshop Pipeline System

Product Description:

The Norgren F07, F72G, and F73G series are general purpose filters specifically engineered to eliminate water, oil, and solid particles from compressed air lines. By doing so, they effectively protect downstream pneumatic equipment against contamination and corrosion. These filters are well-suited for applications such as industrial automation, packaging machinery, material handling, and general pneumatic systems where maintaining clean and dry air is critical for dependable performance.

The F07 series represents a miniature filter line featuring G1/8 and G1/4 port sizes, making it an excellent choice for installations with limited space. Constructed with a zinc alloy body and a polycarbonate bowl, this design provides 360-degree visibility of condensate levels. The F07 typically offers a flow rate of 9 liters per second and supports a maximum operating pressure of up to 10 bar.

In contrast, the F72G and F73G series form part of the Excelon modular system, enabling flexible installation either in-line or modularly with other Excelon air preparation components. While the F72G series features a zinc body, the F73G series is built with an aluminium body. Both come equipped with polycarbonate bowls and incorporate a quick-release bayonet bowl design for ease of maintenance. These models deliver flow rates of 30 liters per second (F72G) and 35 liters per second (F73G), with a maximum operating pressure also rated at 10 bar.

All filter variants offer options for filter elements rated at either 5 μm or 40 μm, alongside choices between manual or automatic drain systems. The polycarbonate bowls are optionally protected by metal guards, suitable for demanding environments. The transparent bowls facilitate straightforward visual monitoring of condensate accumulation, while the modular design enhances both maintenance convenience and system scalability.

Features:

This filtration system effectively removes water, oil, and solid particles from compressed air lines, ensuring the protection of downstream equipment and enhancing overall system reliability.

The product range includes multiple series designed to accommodate various system sizes and flow demands. These include the F07 series with a flow rate of 9 liters per second, the F72G series at 30 liters per second, and the F73G series capable of handling 35 liters per second.

Both the F72G and F73G filters are designed to facilitate either in-line installation or modular integration with other Excelon air preparation products, offering flexible setup options tailored to your system requirements.

The F07 series boasts a compact and miniature design, making it an excellent choice for installations in tight spaces and smaller pneumatic systems where space is at a premium.

Equipped with transparent polycarbonate bowls, the filters provide 360-degree visibility of condensate levels, allowing for easy and quick monitoring without the need to disassemble the unit.

For ease of maintenance, the F72G and F73G series feature quick-release bayonet-style bowls that can be removed rapidly without the use of tools, minimizing downtime during servicing.

To meet different filtration requirements, these products offer filter elements made of sintered polypropylene available in two grades: 5 microns and 40 microns.

Users can select between manual or automatic drain systems to conveniently remove condensate, depending on operational preferences and system design.

The filter bodies are constructed from zinc and aluminium, ensuring durability and robust performance in industrial environments.

These filtration units are rated for a maximum operating pressure of 10 bar for the transparent bowl versions and are suitable for a wide temperature range from -34°C to +50°C.

For demanding or harsh environments, an optional metal bowl guard is available to provide additional protection and extend the longevity of the filter components.

Technical Parameters:

Applications:

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to provide clean, regulated, and lubricated air to your pneumatic systems, ensuring optimal performance and longevity of your equipment.

For technical support, please ensure that your FRL unit is installed according to the manufacturer's guidelines, including proper orientation, correct air pressure settings, and appropriate maintenance schedules.

Regular maintenance includes checking and draining accumulated water and contaminants from the filter bowl, verifying the regulator pressure settings, and refilling the lubricator with the recommended pneumatic oil to maintain efficient lubrication.

If you encounter any issues such as pressure fluctuations, air leaks, or insufficient lubrication, please consult the troubleshooting section of the product manual for step-by-step guidance.

Replacement parts and accessories for the FRL unit are available to ensure your system continues to operate effectively. Always use genuine parts to maintain product integrity and performance.

For advanced technical assistance or service inquiries, please refer to the product documentation or contact your authorized distributor.

Packing and Shipping:

The Pneumatic Filter Regulator Lubricator is carefully packaged to ensure maximum protection during transit. Each unit is enclosed in a sturdy, impact-resistant box with custom foam inserts to prevent movement and absorb shocks. The packaging is designed to safeguard the product from dust, moisture, and damage, maintaining its quality and functionality upon delivery.

For shipping, we use reliable carriers with tracking services to provide timely and secure delivery. The product is shipped with clear labeling and handling instructions to ensure it reaches you in perfect condition. Whether for domestic or international orders, we prioritize safe packaging and efficient shipping to guarantee customer satisfaction.
