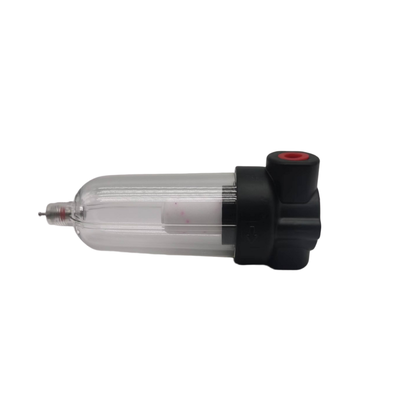

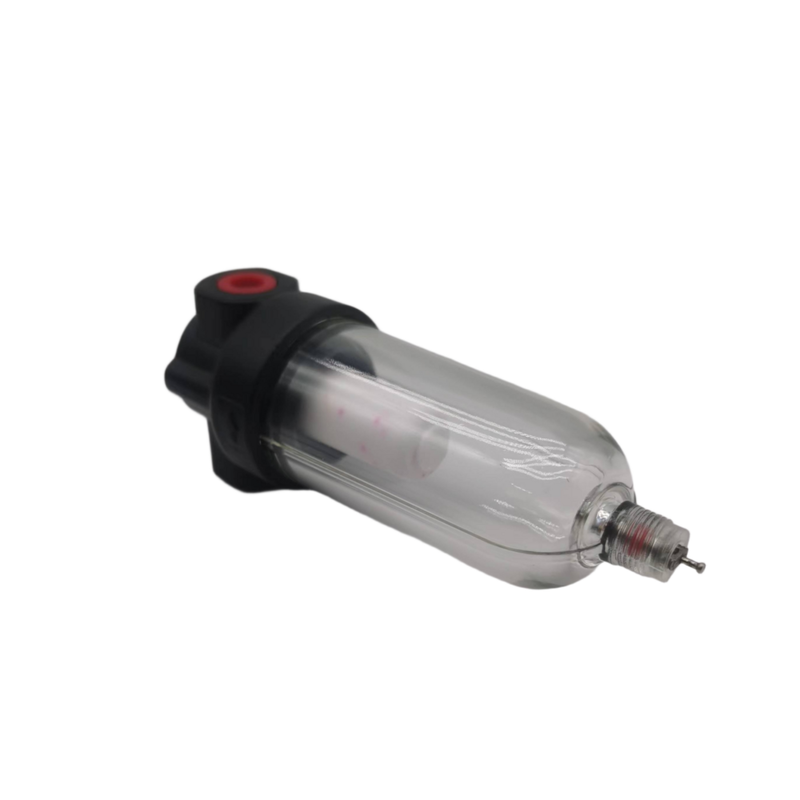

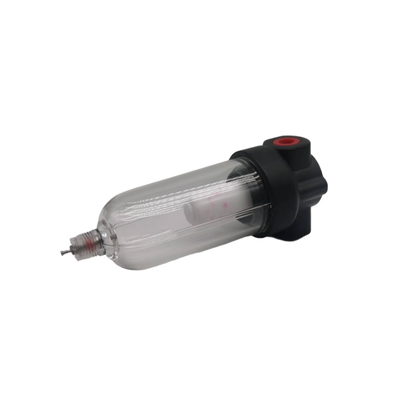

NORGREN F07‑100‑A3TG F07‑200‑A3TG Miniature Compressed Air Filter 40μm Auto Drain Transparent Bowl High Water Removal For Pneumatic Air Preparation Unit

Product Description:

The Norgren F07, F72G, and F73G series are general purpose filters specifically engineered to eliminate water, oil, and solid particles from compressed air lines. By effectively removing these contaminants, the filters help protect downstream pneumatic equipment against corrosion and contamination, ensuring their longevity and reliable performance. These filters are commonly used in applications such as industrial automation, packaging machinery, material handling, as well as various pneumatic systems where maintaining clean and dry air is critical.

The F07 series is a compact, miniature filter range designed with G1/8 and G1/4 port sizes, making it an excellent choice for installations with limited space. Constructed with a durable zinc alloy body and a polycarbonate bowl, the filter offers 360-degree visibility of condensate levels for easy monitoring. This series supports a typical flow rate of 9 liters per second and can operate under a maximum pressure of 10 bar.

The F72G and F73G series belong to the Excelon modular system, which facilitates both in-line and modular installation alongside other Excelon air preparation products. The F72G series features a robust zinc body, whereas the F73G series uses a lightweight aluminium body. Both models come with polycarbonate bowls equipped with a quick-release bayonet design for convenient maintenance. These filters provide flow rates of 30 liters per second for the F72G and 35 liters per second for the F73G, with a maximum operating pressure rating of 10 bar.

All filters in these series are available with filter elements rated at either 5 microns or 40 microns, and users can choose between manual or automatic drain options. The polycarbonate bowls offer clear visual monitoring of condensate levels and can be supplemented with optional metal guards to withstand harsh environmental conditions. Additionally, the modular design of these filters simplifies both maintenance procedures and future system expansions.

Features:

These filters are designed to remove water, oil, and solid particles from compressed air lines. This ensures the protection of downstream equipment by maintaining clean and dry air flow.

The product range includes multiple series tailored to various system sizes and flow rates. The F07 series supports a flow rate of 9 liters per second, while the F72G and F73G series handle 30 and 35 liters per second respectively.

The F72G and F73G filters are part of the Excelon modular system, allowing for flexible installation either inline or combined with other Excelon air preparation products. This modularity enhances system customization.

The F07 series features a miniature and compact design, making it an excellent choice for applications with limited space and small pneumatic setups.

Equipped with polycarbonate bowls, these filters provide 360-degree visibility of condensate levels. This transparency makes it easy to monitor the condition and maintenance needs of the filters at a glance.

For the F72G and F73G series, bowls can be quickly removed using a bayonet fitting without the need for tools, facilitating fast and convenient maintenance procedures.

Filter elements are available in two options: 5 micrometers and 40 micrometers sintered polypropylene. This variety caters to different filtration requirements based on the level of purity needed.

Users can select between manual drains or automatic drains for condensate removal, providing convenience and adaptability depending on operational preferences.

The filter bodies are constructed from zinc and aluminium, ensuring durability and longevity even in demanding industrial environments.

The filters with transparent bowls support a maximum operating pressure of up to 10 bar. They are suitable for temperature ranges from -34°C to +50°C, accommodating a wide variety of applications.

For environments that demand extra protection, an optional metal bowl guard is available. This accessory helps shield the bowl from damage in challenging conditions.

Technical Parameters:

This Pneumatic Filter Regulator Lubricator serves as a reliable pressure reducing air source processor, ideal for precise air treatment. It functions as a FESTO air source treatment unit, efficiently conditioning compressed air by filtering, regulating, and lubricating. The product combines advanced filtration options and robust materials to ensure optimal performance in various pneumatic applications.

Applications:

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air flow. To maintain the efficiency and reliability of your FRL, regular maintenance and proper handling are essential.

For technical support, ensure that you have the model number, serial number, and details of the operating conditions available when seeking assistance. This information helps in diagnosing issues accurately and providing effective solutions.

When installing the FRL, verify that the air pressure and flow specifications match the requirements of your system. Avoid exceeding the maximum pressure rating to prevent damage and ensure safety.

Routine maintenance includes checking and replacing the filter element to prevent contamination, draining accumulated water from the bowl regularly, and refilling the lubricator with the recommended lubricant to maintain proper lubrication of downstream components.

If you experience irregular pressure readings, air leaks, or insufficient lubrication, inspect the unit for damaged seals, clogged filters, or incorrect settings. Adjust or replace components as necessary following the manufacturer's guidelines.

For troubleshooting, refer to the user manual for step-by-step instructions on addressing common issues such as pressure fluctuations, air contamination, or lubrication failure. Proper troubleshooting can often resolve problems without the need for professional service.

In case of persistent problems or if replacement parts are needed, contact authorized service centers or the product manufacturer to ensure the use of genuine components and expert repair services.

Always adhere to safety protocols when servicing the FRL unit, including depressurizing the system before performing any maintenance tasks to avoid injury or equipment damage.

By following these guidelines and utilizing available technical support resources, you can maximize the performance and service life of your Pneumatic Filter Regulator Lubricator unit.

Packing and Shipping:

Each Pneumatic Filter Regulator Lubricator (FRL) unit is carefully packaged to ensure maximum protection during transit. The product is securely placed in a custom-fitted foam insert within a sturdy corrugated cardboard box to prevent any damage from shocks or vibrations. The packaging includes clear labeling with product information, handling instructions, and safety warnings to ensure proper care throughout the shipping process.

For shipping, the FRL units are palletized and shrink-wrapped when shipped in bulk to provide stability and prevent movement. We utilize reliable carriers with tracking capabilities to ensure timely and safe delivery. All shipments are accompanied by detailed documentation, including a packing list and user manual, to facilitate easy installation and setup upon arrival.

Special care is taken to comply with international shipping regulations and standards, including hazardous material handling when applicable, to guarantee that the Pneumatic Filter Regulator Lubricator reaches the customer in excellent condition and ready for immediate use.
