Product Description:
The Norgren F07, F72G, and F73G series are general purpose filters specifically engineered to eliminate water, oil, and solid contaminants from compressed air lines. By doing so, they effectively safeguard downstream pneumatic equipment against contamination and corrosion. These filters are ideal for applications in industrial automation, packaging machinery, material handling, and various pneumatic systems where maintaining clean and dry air is critical to ensuring dependable operation.

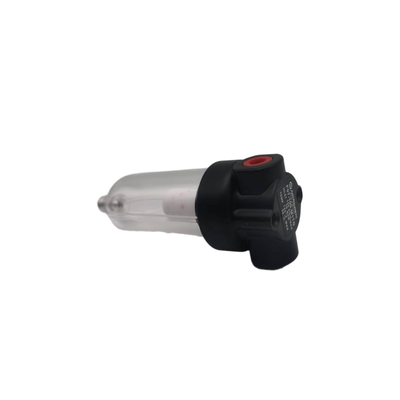

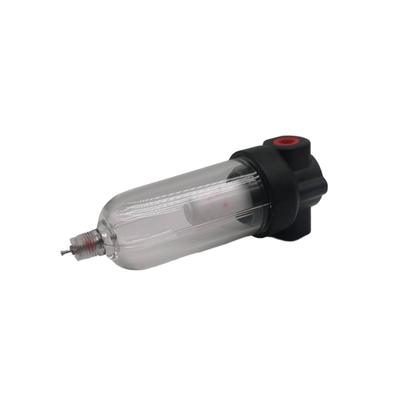

The F07 series comprises a range of miniature filters equipped with G1/8 and G1/4 ports, making them perfectly suited for installations where space is limited. This series features a sturdy zinc alloy body combined with a polycarbonate bowl that provides a full 360° view of condensate levels. Typically, these filters handle flow rates up to 9 liters per second and can operate at a maximum pressure of 10 bar.
The F72G and F73G series belong to the Excelon modular system, which offers the flexibility of either in-line or modular installation alongside other Excelon air preparation components. The F72G series is constructed with a zinc body, whereas the F73G series is made with an aluminium body. Both variants include polycarbonate bowls and feature a quick-release bayonet bowl design for ease of maintenance. These filters support higher flow rates, with the F72G handling up to 30 liters per second and the F73G up to 35 liters per second, both operating at pressures reaching 10 bar.
All models in these series come with options for filter elements rated at either 5 microns or 40 microns. Users can choose between manual or automatic drain systems, and the polycarbonate bowls can be equipped with metal guards for enhanced durability in demanding environments. The transparent bowls facilitate convenient visual monitoring of condensate levels, while the modular design simplifies maintenance tasks and allows for straightforward system expansion.
Features:
General Purpose Filtration
This filtration system effectively removes water, oil, and solid particles from compressed air lines, ensuring the protection of downstream equipment. It is designed to maintain the purity and reliability of compressed air in various industrial applications.
Multiple Series for Various Flow Rates
The filtration units come in multiple series to accommodate different flow rate requirements. The F07 series supports up to 9 liters per second, while the F72G and F73G series handle 30 and 35 liters per second respectively. This variety allows users to select the appropriate model based on their system size.
Excelon Modular System Compatibility
The F72G and F73G filters are designed for flexible installation options, either inline or modular, working seamlessly with other Excelon air preparation products. This modularity provides an efficient solution for building customized air treatment systems.
Compact and Space-Saving Design
The F07 series features a compact miniature design, which is particularly suitable for tight spaces and small pneumatic setups. Its small footprint makes it ideal for applications where space conservation is crucial.
Transparent Polycarbonate Bowls
Equipped with polycarbonate bowls, these filters offer 360-degree visibility of condensate levels, allowing for easy and continuous monitoring. This transparency simplifies maintenance by providing clear visual indicators.
Quick-Release Bayonet Bowl Mechanism
The bowls on the F72G and F73G models feature a quick-release bayonet design that enables fast removal without the need for tools. This facilitates straightforward maintenance and reduces downtime.
Filter Element Variety
Users can choose between filter elements with 5 micrometer or 40 micrometer sintered polypropylene media, catering to different filtration needs and ensuring optimal performance based on the specific contaminants present.
Drain Options for Condensate Removal
The filtration units offer both manual and automatic drain options, providing flexibility for convenient condensate discharge depending on user preference and system requirements.
Robust Construction Materials
Constructed from zinc and aluminium, the filter bodies boast durability suited for demanding industrial environments. This robust build ensures longevity and reliable operation under harsh conditions.
Operating Pressure and Temperature Range
The transparent bowl versions are rated for a maximum operating pressure of 10 bar. They are suitable for applications operating within a wide temperature range from -34°C up to +50°C, offering versatility across various climates and conditions.
Optional Metal Bowl Guard
For particularly harsh environments where additional protection is required, an optional metal bowl guard is available. This guard safeguards the bowls against potential damage, enhancing the durability of the filtration system.
Technical Parameters:
| Filtration Options |
5 μm, 40 μm |
| Operating Temperature |
-34°C To +50°C |
| Body Material |
Zinc Alloy |
| Bowl Material |
Polycarbonate |
| Drain Types |
Manual, Automatic |
| Port Sizes |
G1/8, G1/4, G3/8 |
Applications:
Industrial Automation
Ensuring a clean air supply is crucial for the efficient operation of pneumatic actuators, valves, and cylinders used in industrial automation. Proper filtration helps maintain system performance and extends the lifespan of these components.
Packaging Machinery
Pneumatic components within packaging and filling equipment require reliable protection. Air filtration systems play an essential role in safeguarding these parts from contaminants, thereby enhancing overall machinery reliability.
Material Handling
Air filtration is vital for conveyors, pick-and-place units, and other handling systems. Clean compressed air ensures smooth operation and reduces the risk of malfunctions caused by airborne impurities.
General Pneumatic Systems
In manufacturing facilities, it is important to remove contaminants from compressed air lines used in various pneumatic applications. This helps in maintaining the quality and efficiency of the systems.
Compressed Air Distribution
Point-of-use filtration is essential for tools and equipment utilizing compressed air. It guarantees that each device receives clean air to function optimally without the influence of debris or moisture.
Food and Beverage Processing
Clean, dry, and filtered air is critical in the packaging and processing lines within the food and beverage industry. Proper air quality controls help meet hygiene standards and protect product integrity.
Textile Machinery
Pneumatic controls in textile production benefit significantly from effective air filtration. Maintaining clean air helps improve process reliability and product quality in the textile industry.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure the optimal performance and longevity of your pneumatic system by providing clean, regulated, and lubricated air supply. For technical support, please refer to the user manual for installation guidelines, maintenance procedures, and troubleshooting tips to maximize efficiency and prevent operational issues.
Regular maintenance of the FRL unit is essential. This includes periodic inspection and replacement of filter elements, checking and adjusting the regulator pressure settings, and refilling the lubricator reservoir with the recommended type and amount of lubricant. Proper maintenance helps avoid contamination, pressure drops, and inadequate lubrication that can affect system performance.
In case of performance issues such as pressure instability, air leaks, or lubrication failure, verify the installation and settings against the product specifications. Clean or replace filters as needed, ensure all connections are secure, and confirm that the lubricator contains sufficient oil. If problems persist, consult the troubleshooting section of the manual for step-by-step guidance.
We offer comprehensive after-sales services including product consultation, technical troubleshooting, and replacement parts to support your FRL system. Our technical team is dedicated to helping you achieve reliable and efficient pneumatic system operation through expert advice and timely service.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, corrugated cardboard box to ensure protection during transit. Inside, the product is cushioned with foam inserts to prevent any damage from shocks or vibrations. Each unit is individually wrapped in anti-static plastic to protect against dust and moisture. The packaging includes a detailed user manual, installation guide, and warranty information for customer convenience.
Shipping: The Pneumatic Filter Regulator Lubricator is shipped via reliable logistics partners to ensure timely and safe delivery. Standard shipping options include ground and air freight, with tracking available for all orders. For international shipments, necessary customs documentation is provided. The packaging is designed to withstand various handling conditions, ensuring the product arrives in optimal condition. Expedited shipping options are available upon request to meet urgent requirements.
