Product Description:
The Norgren F07, F72G, and F73G series are general-purpose filters engineered to remove water, oil, and solid contaminants from compressed air lines. By effectively filtering these impurities, they help protect downstream pneumatic devices from damage caused by contamination and corrosion. These filters are well-suited for applications in industrial automation, packaging machinery, material handling systems, and other pneumatic operations where the use of clean, dry air is critical to ensure dependable performance.

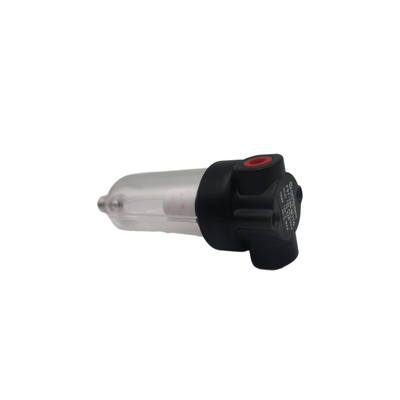

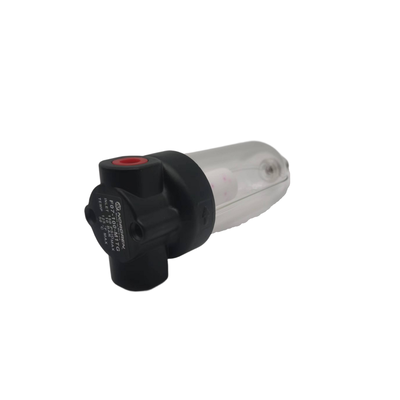

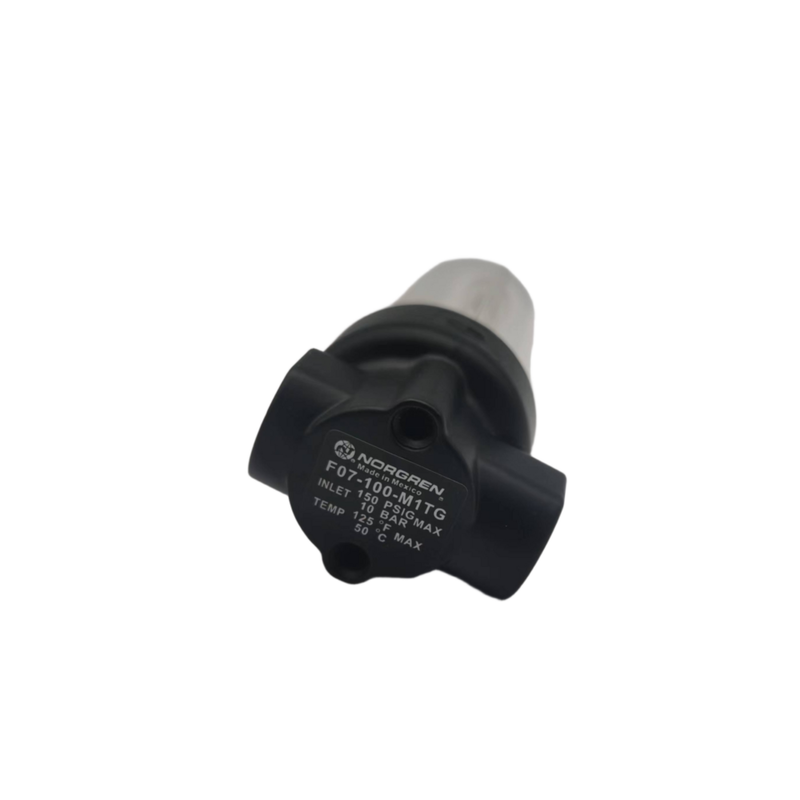

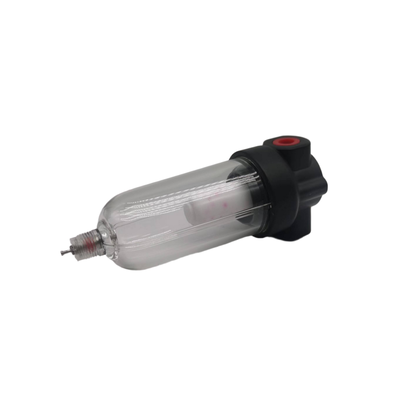

The F07 series represents a compact filter range that comes with G1/8 and G1/4 port sizes, making it ideal for installations where space is limited. Constructed with a zinc alloy body and a polycarbonate bowl, the design offers 360-degree visibility of condensate levels. The typical flow capacity is 9 liters per second, and it can operate under pressures up to 10 bar.
Both the F72G and F73G series belong to the Excelon modular system, allowing for flexible installation either inline or combined with other Excelon air preparation components. The F72G model features a zinc body, whereas the F73G is built with an aluminum body. Each includes polycarbonate bowls equipped with a quick-release bayonet mechanism for easy access. These filters handle flow rates of up to 30 liters per second for the F72G and 35 liters per second for the F73G, maintaining a maximum operating pressure of 10 bar.
All filters in these series are available with either 5 μm or 40 μm filtration elements, and users can select manual or automatic drain options depending on their needs. The polycarbonate bowls are transparent, enabling clear monitoring of condensate accumulation, and optional metal guards are available to protect the bowls in harsh environments. Furthermore, the modular design enhances ease of maintenance and facilitates system expansion whenever necessary.
Features:
General Purpose Filtration
This filtration system efficiently removes water, oil, and solid particles from compressed air lines, ensuring the protection of downstream equipment. Its robust design helps maintain the performance and longevity of pneumatic systems by delivering clean air.
Multiple Series to Accommodate Various Flow Rates
Available in several series, the filtration units cater to different flow requirements. The F07 series supports a flow rate of 9 liters per second, while the F72G and F73G series accommodate higher flow rates of 30 and 35 liters per second respectively, making them suitable for a wide range of system sizes.
Excelon Modular System Compatibility
The F72G and F73G filters are designed for flexibility, allowing easy in-line integration or modular installation alongside other Excelon air preparation products. This modular approach simplifies system setup and expansion.
Compact Miniature Design
The F07 series features a compact miniature design, ideal for installation in tight spaces and smaller pneumatic systems without compromising performance.
Polycarbonate Bowls for Clear Monitoring
Transparent polycarbonate bowls provide a full 360-degree view of condensate levels, facilitating straightforward and continuous monitoring of the filtration process.
Quick-Release Bayonet Bowl for Easy Maintenance
Maintenance is simplified with the F72G and F73G models, featuring quick-release bayonet bowls that can be removed swiftly without the need for tools, reducing downtime.
Filter Element Options
The filters come equipped with sintered polypropylene elements available in two grades: 5 microns or 40 microns, allowing customers to choose the appropriate filtration level based on specific requirements.
Drainage Options
For convenient condensate removal, options include both manual and automatic drains, providing flexibility depending on maintenance preferences and application conditions.
Durable Body Materials
Constructed from zinc and aluminium, these filters offer durable performance suitable for demanding industrial environments.
Operating Conditions and Additional Features
The models with transparent bowls operate at a maximum pressure of 10 bar and are suitable for a wide temperature range from -34°C to +50°C. For harsher conditions, an optional metal bowl guard is available to provide extra protection.
Technical Parameters:
| Bowl Material |
Polycarbonate |
| Operating Temperature |
-34°C To +50°C |
| Drain Types |
Manual, Automatic |
| Filtration Options |
5 μm, 40 μm |
| Port Sizes |
G1/8, G1/4, G3/8 |
| Body Material |
Zinc Alloy |
Applications:
Industrial Automation
In the field of industrial automation, supplying clean air is crucial for the optimal functioning of pneumatic actuators, valves, and cylinders. Ensuring the air is free from contaminants helps maintain the reliability and longevity of these components.
Packaging Machinery
Pneumatic components within packaging and filling machines require protection from impurities. Clean air supply plays a vital role in preventing damage and maintaining the efficiency of packaging machinery.
Material Handling
Air filtration systems are essential for conveyors, pick-and-place units, and other handling equipment. By filtering compressed air, these systems enhance performance and reduce maintenance needs in material handling applications.
General Pneumatic Systems
Across various manufacturing facilities, the removal of contaminants from compressed air lines is a common requirement. Clean air ensures smoother operation and decreases the risk of system failures in general pneumatic setups.
Compressed Air Distribution
At the point of use, filtration is necessary for tools and equipment that rely on compressed air. Proper air purification at these stages helps maintain tool efficiency and prevent premature wear.
Food and Beverage Processing
In food and beverage industries, the use of dry and filtered air is critical for packaging and processing lines. Clean air supply helps comply with hygiene standards while ensuring product quality.
Textile Machinery
Textile production makes use of pneumatic controls that require filtered air to function effectively. Air filtration in these systems supports consistent operation and minimizes downtime.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please refer to the installation and maintenance guidelines included with the product to ensure proper setup and operation.
Regular maintenance is essential for reliable operation. Replace filter elements as recommended or when a noticeable pressure drop occurs. Check and replenish the lubricator oil reservoir with the manufacturer-specified lubricants to maintain efficient lubrication of downstream components.
Troubleshooting tips include verifying air supply pressure, inspecting for leaks, and ensuring that the regulator is properly adjusted to the desired pressure setting. If the unit does not maintain pressure or if airflow is restricted, inspect the filter and lubricator for blockages or damage.
For further assistance, consult the detailed user manual or technical datasheets provided with the product. Our support team is available to help with product selection, installation advice, and resolving operational issues to keep your pneumatic systems running smoothly.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, corrugated cardboard box to ensure protection during transit. Inside, the unit is cushioned with foam inserts to prevent any damage from shocks or vibrations. The packaging includes a clear label with product details, specifications, and handling instructions. Additionally, an instruction manual and warranty card are included within the box.
Shipping: The product is shipped via reliable courier services with tracking available for all orders. Each package is carefully sealed and marked as fragile to ensure careful handling. Shipping options include standard and expedited delivery to accommodate customer needs. For bulk orders, pallets are used with shrink wrap and strapping to secure multiple units safely during transportation.
