Product Description:
The Norgren F07, F72G, and F73G series are general-purpose filters engineered to eliminate water, oil, and solid particles from compressed air lines. By doing so, they protect downstream pneumatic equipment from contamination and corrosion, ensuring optimal performance and longevity. These filters are well-suited for applications such as industrial automation, packaging machinery, material handling, and other general pneumatic systems where the supply of clean and dry air is crucial for dependable operation.

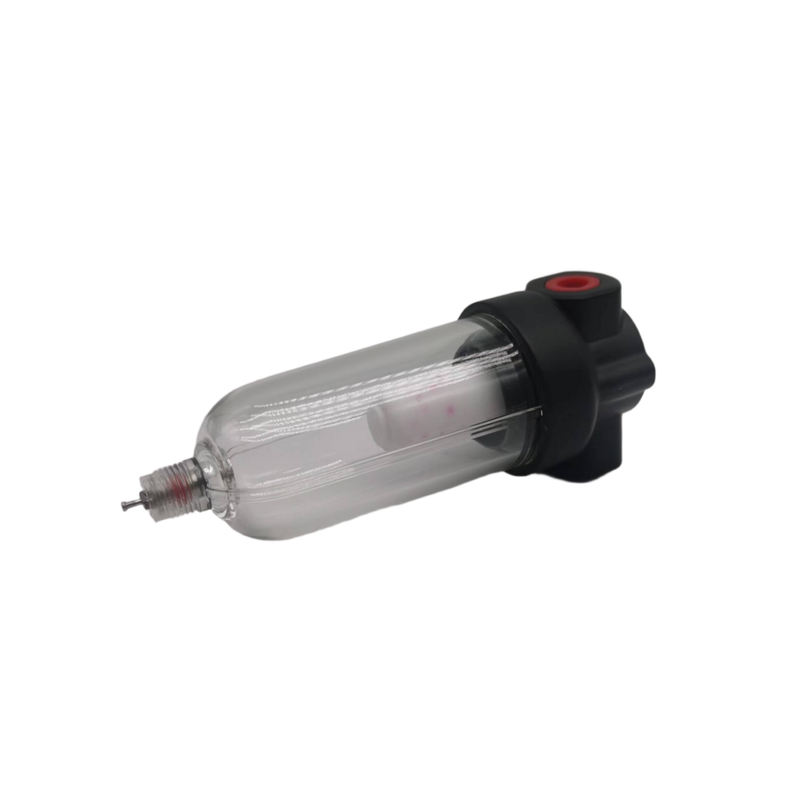

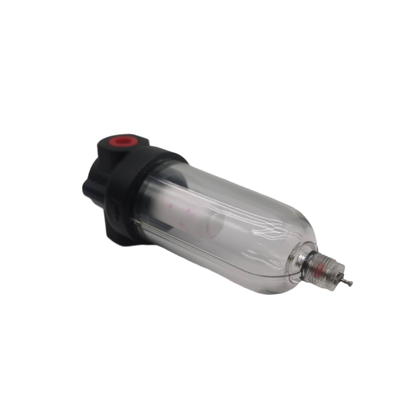

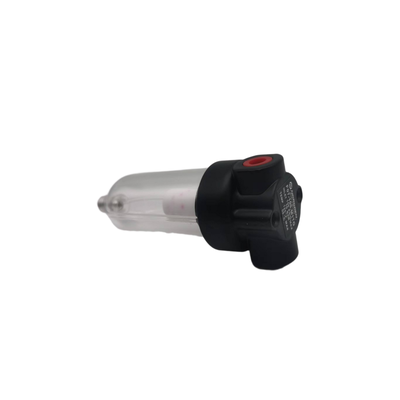

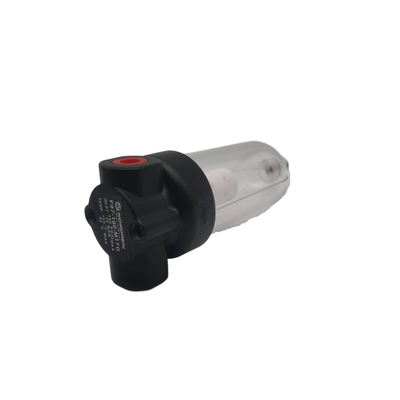

The F07 series represents a miniature filter range, equipped with G1/8 and G1/4 ports, making it perfect for installations where space is limited. Constructed with a zinc alloy body and a polycarbonate bowl, it provides 360° visibility of condensate levels. The filter typically offers a flow rate of 9 liters per second and can handle a maximum operating pressure of up to 10 bar.
Both the F72G and F73G series belong to the Excelon modular system, which supports either in-line or modular setups alongside other Excelon air preparation components. The F72G series features a zinc body, whereas the F73G series is designed with an aluminium body. Each variant includes polycarbonate bowls with a quick-release bayonet bowl mechanism for ease of maintenance. These filters enable flow rates of 30 liters per second for the F72G and 35 liters per second for the F73G model, maintaining a maximum pressure rating of 10 bar.
All filters in these series come with options for 5 μm or 40 μm filter elements and provide either manual or automatic drain choices. The polycarbonate bowls, available optionally with metal guards, ensure durability in harsh environments. The transparent bowls allow users to visually monitor condensate levels effectively. Moreover, the modular design facilitates straightforward maintenance and allows for seamless system expansion.
Features:
The general purpose filtration system is designed to efficiently remove water, oil, and solid particles from compressed air lines, ensuring the protection of downstream equipment.
Multiple series are available to accommodate different flow rates, including the F07 series with a capacity of 9 L/s, the F72G series at 30 L/s, and the F73G series designed for 35 L/s. This range allows the filters to suit various system sizes.
The Excelon Modular System enables the F72G and F73G filters to be installed either inline or as part of a modular setup alongside other Excelon air preparation products, providing flexibility in system design.
The compact and miniature design of the F07 series makes it ideal for applications with limited space or smaller pneumatic systems where space efficiency is crucial.
Featuring polycarbonate bowls, these filters offer transparent containers that provide 360-degree visibility of condensate levels, which simplifies monitoring and maintenance.
The quick-release bayonet bowl design in the F72G and F73G series allows for easy bowl removal during maintenance without the need for any tools, enhancing convenience and reducing downtime.
Filter element options include 5 μm or 40 μm sintered polypropylene elements, catering to different filtration requirements based on the specific needs of the application.
For condensate removal, both manual and automatic drain options are offered, enabling users to select the most convenient method for their operation.
Constructed with zinc and aluminium body materials, the filters provide durable performance suitable for demanding industrial environments.
The maximum operating pressure for the versions with transparent bowls is 10 bar, ensuring reliable operation under typical compressed air conditions.
These filters can operate effectively within a wide temperature range from -34°C to +50°C, making them adaptable to various environmental conditions.
For harsher environments where additional protection is necessary, an optional metal bowl guard is available to further safeguard the filter components.
Technical Parameters:
| Port Sizes |
G1/8, G1/4, G3/8 |
| Operating Temperature |
-34°C To +50°C |
| Bowl Material |
Polycarbonate |
| Filtration Options |
5 μm, 40 μm |
| Drain Types |
Manual, Automatic |
| Body Material |
Zinc Alloy |
This Pneumatic Filter Regulator Lubricator serves as a reliable pressure reducer and pressure reducing air source processor, ensuring efficient pneumatic air purification.
Applications:
Industrial Automation
Providing clean air is essential for the efficient operation of pneumatic actuators, valves, and cylinders. Ensuring purified air supply helps maintain the performance and longevity of these components.
Packaging Machinery
In packaging and filling equipment, pneumatic parts require protection from contaminants. Clean air supply safeguards these components, enhancing their reliability and reducing maintenance needs.
Material Handling
Air filtration plays a crucial role in material handling systems such as conveyors and pick-and-place units. Proper filtration ensures smooth operation by preventing impurities from affecting pneumatic mechanisms.
General Pneumatic Systems
Within manufacturing facilities, it is vital to remove contaminants from compressed air lines. This practice helps maintain the integrity and functionality of various pneumatic systems used across industries.
Compressed Air Distribution
At the point of use, filtration is necessary to provide clean air to tools and equipment. Effective filtration at this stage enhances tool performance and extends equipment lifespan.
Food and Beverage Processing
In food and beverage production, supplying dry, filtered air is critical for packaging and processing lines. Clean air ensures product safety and quality while complying with industry standards.
Textile Machinery
Pneumatic controls in textile manufacturing require clean air filtration to operate efficiently. Maintaining air purity in these systems supports consistent production quality.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure the optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. To maintain peak efficiency, it is essential to perform regular maintenance and follow the recommended service procedures.
For technical support, please refer to the product manual for detailed installation, operation, and troubleshooting guidelines. Ensure that the air supply is within the specified pressure range and that the filter element is cleaned or replaced periodically to prevent contamination and pressure drops.
The regulator should be adjusted according to your system requirements, and the lubricator oil level must be checked frequently to provide adequate lubrication to downstream pneumatic components. Use only the recommended lubricants to avoid damage or malfunction.
If you encounter any issues beyond routine maintenance, such as irregular pressure fluctuations or air leaks, inspect all connections and seals for wear or damage. Replacement parts are available to ensure your FRL unit operates reliably.
For advanced technical support and service options, consult with authorized service centers or technical representatives who can provide expert assistance and repair services tailored to your specific application needs.
Packing and Shipping:
Our Pneumatic Filter Regulator Lubricator (FRL) units are carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped in anti-static material and cushioned with durable foam inserts inside a sturdy corrugated cardboard box. The packaging is designed to prevent damage from shocks, vibrations, and moisture, maintaining the integrity and performance of the product upon delivery.
For shipping, we partner with reliable carriers to provide timely and safe delivery worldwide. Each package is labeled with handling instructions and tracking information to ensure transparency and ease of monitoring. We offer multiple shipping options to accommodate urgent needs or cost-effective solutions, ensuring your Pneumatic Filter Regulator Lubricator arrives promptly and in perfect condition.
