NORGREN F39‑100‑A0TG General‑Purpose Mini Air Filter G1/8 Thread Polycarbonate Bowl Low Residual Oil Output For Multiple Compact Pneumatic Control Pipeline Application

Product Description:

This range of pneumatic air filters is specifically designed to eliminate water, oil aerosols, and solid particles from compressed air systems. By doing so, they safeguard downstream equipment such as valves, cylinders, and pneumatic tools from contamination and corrosion, ensuring optimal performance and longevity. The product lineup includes both general purpose particulate filters and high-efficiency coalescing filters for oil removal, offered in various port sizes and filtration ratings to suit different application needs.

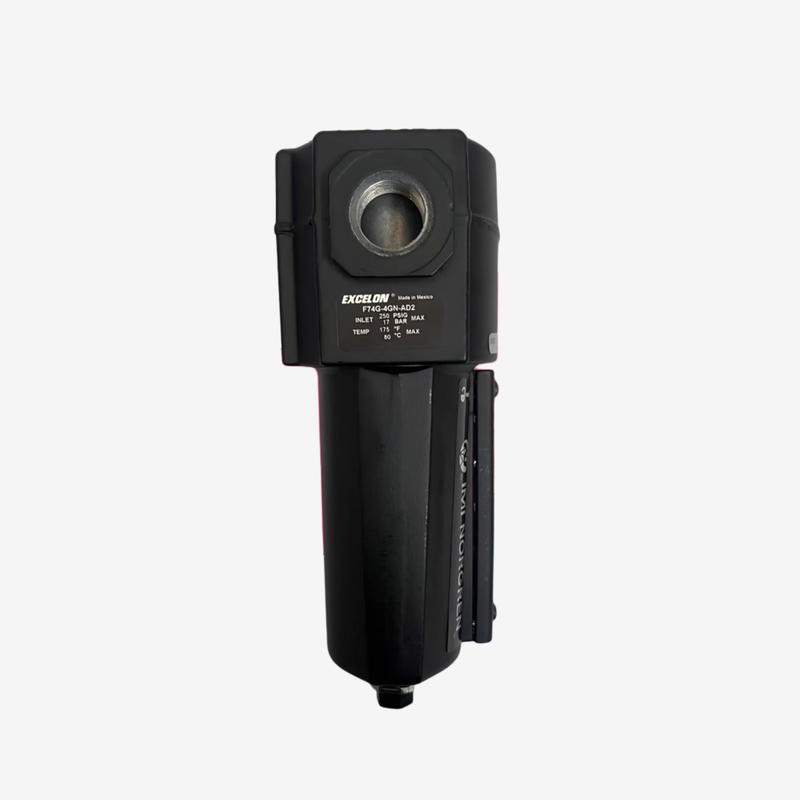

The F74G series represents the general purpose filters within this modular air preparation system. These filters can be easily installed either inline or as part of a modular setup alongside other air preparation components. Built with a die-cast aluminium body and a transparent polycarbonate bowl, they incorporate a quick-release bayonet mechanism for straightforward maintenance. Equipped with sintered polypropylene elements available in 40 μm or 5 μm grades, these filters handle a typical flow rate of 83 liters per second (176 SCFM), support a maximum inlet pressure of 10 bar, and operate efficiently within a temperature range from -34°C to +50°C.

For applications requiring superior oil removal, the F74H series high-flow coalescing filters deliver exceptional performance by removing oil aerosols and particles as small as 0.01 μm. These filters achieve an oil removal rating of class level 2 (0.01 mg/m³). Their design features include a polycarbonate bowl safeguarded by a metal guard and an automatic drain system. Like the F74G series, the F74H filters are rated for a maximum inlet pressure of 10 bar, ensuring reliable operation under demanding conditions.

The compact F39 series oil removal filter is engineered for applications with a G1/8 port requirement. It also offers high-efficiency filtration down to 0.01 μm combined with an automatic drain system. The screw-on bowl design simplifies maintenance by allowing disassembly without the need for tools or disconnecting the filter from the air line, thereby reducing downtime and service effort.

Across all filter series, there is flexibility in condensate drainage options, including manual, semi-automatic, or fully automatic drains. Transparent bowls provide clear visibility for monitoring condensate levels, while integrated service indicators change color from green to red to alert users when the filter element requires replacement, promoting timely maintenance and reliable system performance.

Features:

Technical Parameters:

Applications:

In the realm of industrial automation, maintaining a clean air supply is essential for the proper functioning of pneumatic actuators, valves, and cylinders. Ensuring that these components receive uncontaminated air helps enhance performance and extend equipment lifespan.

Packaging machinery also benefits greatly from reliable air filtration systems. Protecting pneumatic components within packaging and filling equipment is crucial to avoid downtime and maintain high production quality.

When it comes to material handling, clean air plays a vital role in the operation of conveyors, pick-and-place units, and other handling systems. Effective air filtration helps prevent contamination and mechanical wear, ensuring smooth and efficient processes.

Compressed air distribution systems require point-of-use filtration to safeguard tools and equipment. By filtering air right at the point of operation, industries can reduce maintenance costs and improve tool performance.

In the food and beverage processing sector, the use of dry and filtered air is critical for packaging and processing lines. Clean air supply helps maintain hygiene standards and product quality, ensuring consumer safety.

Textile machinery relies on air filtration to protect pneumatic controls used during textile production. This prevents dust and contaminants from interfering with sensitive equipment, supporting consistent manufacturing output.

Automotive manufacturing facilities implement air preparation systems in paint shops, assembly lines, and testing equipment. Clean and dry compressed air ensures high-quality finishes and reliable operation throughout the production cycle.

Overall, any general industrial pneumatic application that demands clean, dry compressed air benefits from appropriate air filtration and preparation. This is fundamental to maintaining operational efficiency and extending the life of pneumatic components.

Customization:

Our Pneumatic Filter Regulator Lubricator, model number F74G-4GN-AT3, is a high-quality product from the trusted Norgren brand. Manufactured in CHINA, this unit meets CE certification standards, ensuring reliable performance and safety. With a maximum inlet pressure of 10 Bar, it is designed to effectively manage and regulate compressed air for various industrial applications.

The product features an aluminium alloy body and a polycarbonate bowl with a metal guard, providing durability and protection. It utilizes nitrile rubber and chloroprene rubber elastomers to ensure efficient sealing and long-lasting operation. The filtration grades available include 40 μm, 5 μm, and 0.01 μm, allowing for precise air quality control.

As a versatile FESTO air source treatment unit, this Pressure Reducer is ideal for maintaining optimal pressure and clean air supply in pneumatic systems. We offer customization options to suit your specific needs, including packaging details such as carton packaging or customized according to client requirements.

With a supply ability of 5000 pieces per month, we ensure prompt delivery within 1-7 work days after payment. Our payment terms are flexible, accepting T/T, Western Union, and Paypal. The minimum order quantity is just 1 unit, and pricing is negotiable to meet your budget.

Choose our Norgren Pneumatic Filter Regulator Lubricator for a reliable and efficient FESTO air source treatment unit that enhances your pneumatic system’s performance and longevity.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems. To maintain efficient operation, regular inspection and maintenance are recommended.

For technical support, please refer to the user manual provided with the product, which includes detailed installation instructions, troubleshooting tips, and maintenance guidelines. Ensure that the filter element is cleaned or replaced periodically to prevent contamination and pressure drops.

Lubricator oil levels should be checked frequently and refilled with the appropriate pneumatic oil to maintain proper lubrication of downstream components. The regulator should be calibrated to maintain the desired output pressure, ensuring consistent performance of your pneumatic devices.

If you encounter any issues beyond routine maintenance or require assistance with system integration, our technical support team is available to provide expert guidance and solutions tailored to your specific application. We also offer repair and replacement services to minimize downtime and maintain system reliability.

For best results, use only compatible parts and accessories recommended by the manufacturer. Proper installation and adherence to operational guidelines will extend the service life of your FRL unit and improve overall system efficiency.
