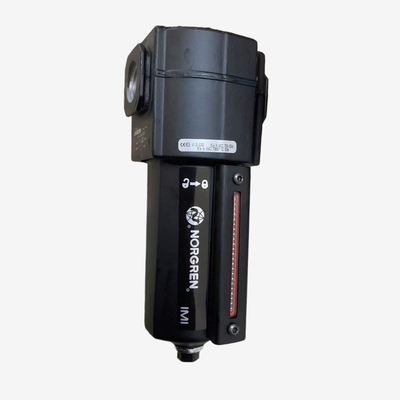

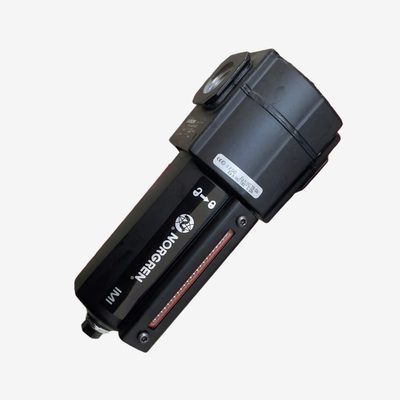

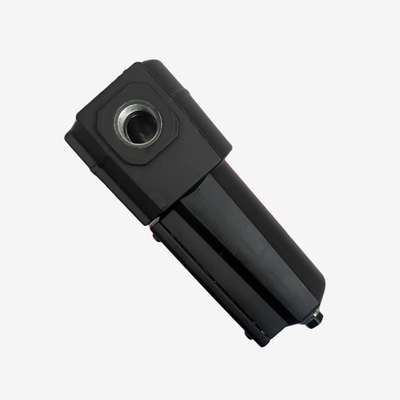

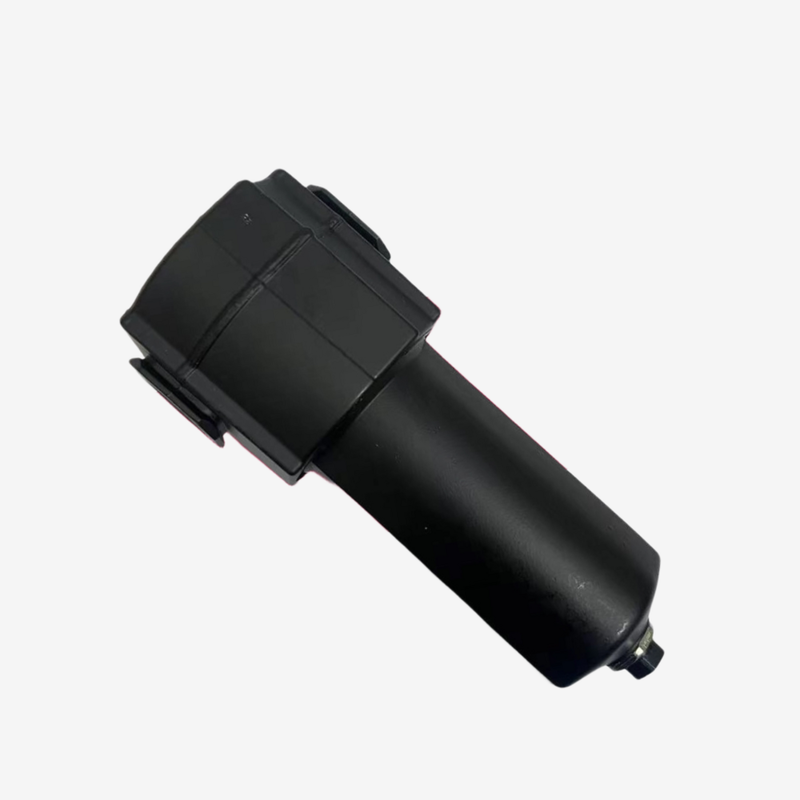

NORGREN F74G‑4GN‑QT3 F74G‑4GN‑QT1 Excelon Compressed Air Filter G1/2 Quick‑Tap Manual‑Drain Polycarbonate Bowl 5‑40μm Quikmount Modular Air Preparation Component

Product Description:

This selection of pneumatic air filters is designed to effectively eliminate water, oil aerosols, and solid contaminants from compressed air lines. By doing so, it safeguards downstream equipment such as valves, cylinders, and pneumatic tools from contamination and corrosion. The product range includes both general-purpose particulate filters and high-efficiency oil removal coalescing filters, available in various port sizes and filtration grades to suit different requirements.

The F74G series general-purpose filters are integrated components of a modular air preparation system, enabling either in-line or modular installation alongside other air preparation devices. These filters are constructed with a durable die-cast aluminium body and come with a transparent polycarbonate bowl featuring a quick-release bayonet design, which simplifies maintenance tasks. They offer filtration elements made from sintered polypropylene with options of 40 μm or 5 μm. The filters support a typical flow rate of 83 L/s (176 SCFM), handle a maximum inlet pressure of up to 10 bar, and operate within a temperature range from -34°C to +50°C.

For enhanced oil removal, the F74H series high-flow filter excels with superior coalescing technology, capable of filtering oil aerosols and particles as small as 0.01 μm. This achieves an oil removal classification of level 2 (0.01 mg/m³). The filter features a polycarbonate bowl complemented by a protective metal bowl guard and includes an automatic drain system. It is designed to operate at a maximum inlet pressure of 10 bar.

The compact F39 series oil removal filter is equipped with a G1/8 port and delivers the same fine filtration down to 0.01 μm, also incorporating an automatic drain. Its screw-on bowl design reduces maintenance time significantly and allows for disassembly without the need for additional tools or detachment from the air line.

All filters in this range offer flexible drain options, including manual, semi-automatic, and fully automatic modes. Their transparent bowls facilitate easy monitoring of condensate levels, and a service indicator conveniently changes from green to red to signal when the filter element requires replacement.

Features:

The filters come with a variety of filtration grades, including 40 μm, 5 μm, and 0.01 μm filter elements. This range allows the filters to meet different air quality requirements effectively.

The F74G filters are designed for removing particulates and water, while the F74H and F39 models provide high-efficiency removal of oil aerosols and particles as small as 0.01 μm.

The F74G filters support both in-line and modular installation with other air preparation components, utilizing convenient Quikclamp connections for easy assembly.

Featuring a quick-release bayonet bowl, these filters allow for rapid bowl removal to replace filter elements or perform maintenance tasks without the need for special tools.

The transparent polycarbonate bowls offer 360-degree visibility of condensate levels, enabling straightforward monitoring and timely drain actions.

An optional service indicator changes color from green to red when the filter element requires replacement, facilitating easy maintenance scheduling.

Various drain configurations are available to suit different preferences, including manual, semi-automatic, and fully automatic options.

The F74G series filters support a high flow capacity, handling up to 83 liters per second (176 SCFM), making them suitable for demanding applications.

Constructed with a die-cast aluminium body and polycarbonate bowls, and with an optional metal guard, these filters are built to withstand harsh environments.

These filters are suitable for use in a wide temperature range from -34°C to +50°C, ensuring reliable performance under varied conditions.

Transparent bowl versions are rated for a maximum inlet pressure of up to 10 bar, accommodating robust industrial requirements.

All filters are manufactured with environmentally friendly materials and comply with RoHS standards.

Technical Parameters:

Applications:

Ensuring a clean air supply is essential for the optimal operation of pneumatic actuators, valves, and cylinders used in industrial automation systems. Proper filtration helps maintain the longevity and performance of these components.

Pneumatic components utilized in packaging and filling equipment require protection against contaminants. Effective air filtration safeguards these parts, reducing downtime and improving efficiency.

Air filtration plays a critical role in material handling applications such as conveyors, pick-and-place units, and various handling systems, ensuring reliable and consistent operation.

At points of use, filtration of compressed air is necessary for tools and equipment to prevent contamination and ensure safe and effective operation.

Packaging and processing lines in the food and beverage industry depend on clean, dry, and filtered air to maintain hygiene standards and product quality.

Pneumatic controls used in textile production benefit from air filtration, which helps prevent malfunctions and extends equipment lifespan.

In automotive manufacturing, especially within paint shops, assembly lines, and testing equipment, air preparation is crucial to ensure precision and maintain operational standards.

Any industrial application that requires clean, dry compressed air can benefit from efficient air filtration systems, enhancing overall system reliability.

Customization:

Our Pneumatic Filter Regulator Lubricator, model number F74G-4GN-AT3 from the renowned Norgren brand, offers customizable product solutions to meet your specific needs. As a pressure reducing air source processor, this product features a durable aluminium alloy body material and a polycarbonate bowl with metal guard to ensure long-lasting performance and safety.

We provide a variety of elastomer options including nitrile rubber and chloroprene rubber to suit different operational environments. The filtration grades are customizable with options of 40 μm, 5 μm, and 0.01 μm, allowing precise control over air quality for your applications.

Certified with CE standards and manufactured in China, this pressure reducing air source processor guarantees high quality and reliability. Our minimum order quantity is 1 unit, with pricing available upon negotiation to offer flexible purchasing options.

Packaging is tailored to your requirements, typically shipped in cartons or as per client specifications. We ensure prompt delivery within 1-7 work days after payment, supported by multiple payment terms including T/T, Western Union, and Paypal.

With a supply ability of 5000 pieces per month, we can accommodate both small and large scale orders. Choose our Pneumatic Filter Regulator Lubricator as your trusted pressure reducing air source processor for efficient and reliable compressed air treatment.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please refer to the product manual for installation guidelines, maintenance procedures, and troubleshooting tips.

Regular maintenance of the FRL unit is essential. This includes periodic draining of the filter bowl to remove accumulated contaminants, checking and adjusting the regulator pressure to the desired setting, and refilling the lubricator with the appropriate pneumatic oil to ensure proper lubrication of downstream components.

If you encounter any issues such as pressure fluctuations, air leakage, or inadequate lubrication, verify that all connections are secure and free of damage. Clean or replace filter elements as necessary to maintain air quality. Ensure that the lubricator is properly filled and the metering valve is correctly adjusted.

For advanced troubleshooting, calibration, or replacement parts, consult the technical documentation provided with the product or visit our online resources. Our support team is dedicated to helping you maximize the efficiency and reliability of your pneumatic systems using our FRL units.

We recommend using only genuine replacement parts and accessories to maintain product integrity and warranty coverage. Always follow safety guidelines and wear appropriate personal protective equipment when servicing pneumatic components.
