Product Description:
This series of pneumatic air filters has been specifically designed to eliminate water, oil aerosols, and solid particles from compressed air systems. By doing so, they help safeguard downstream equipment such as valves, cylinders, and pneumatic tools from potential contamination and corrosion. The product range includes both general-purpose particulate filters and high-efficiency coalescing filters that remove oil, available in various port sizes and filtration grades to suit diverse applications.

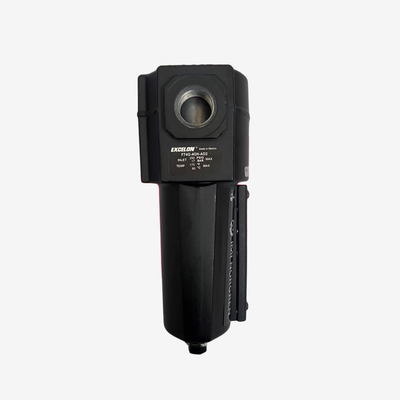

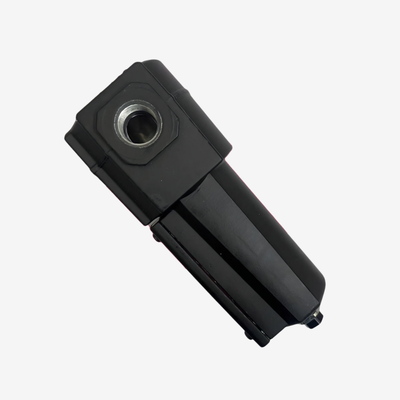

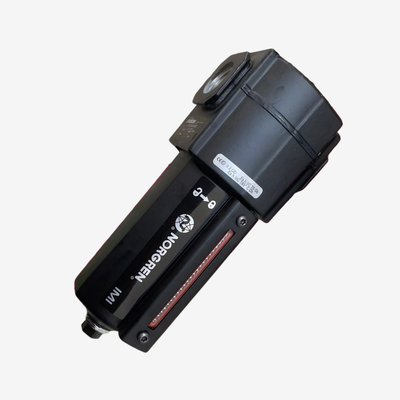

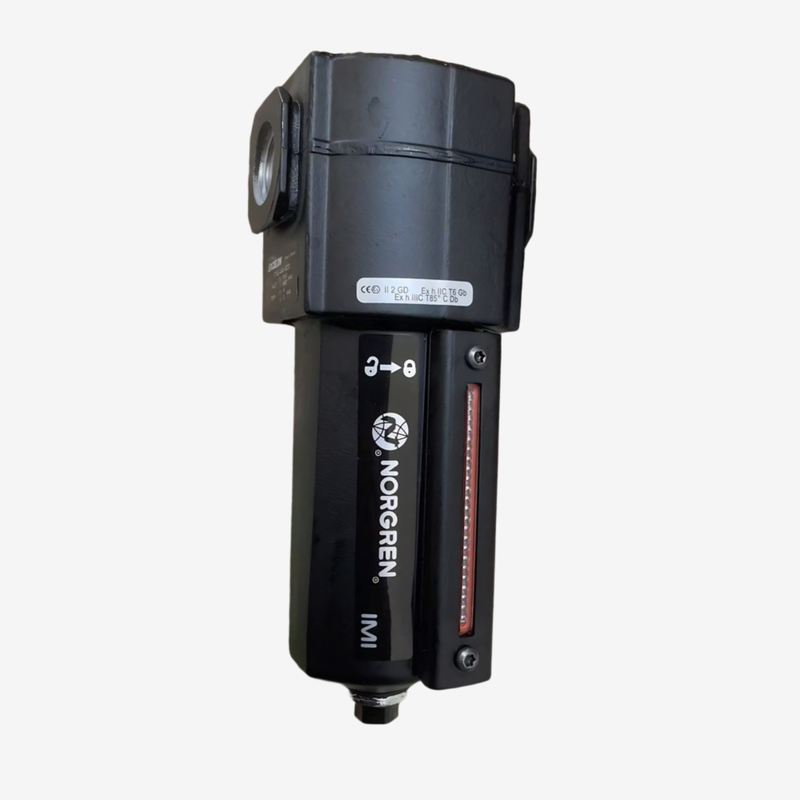

The F74G series represents the general-purpose filters within this modular air preparation system. These filters can be installed either in-line or as part of a modular setup with other air preparation components. Constructed with a die-cast aluminum body, they also feature a transparent polycarbonate bowl equipped with a quick-release bayonet design, enabling hassle-free maintenance. The F74G filters come with sintered polypropylene filter elements in either 40 μm or 5 μm grades, supporting a typical flow rate of 83 L/s (176 SCFM). They can operate under a maximum inlet pressure of 10 bar and within a temperature range spanning from -34°C to +50°C.
For applications that demand superior oil removal, the F74H series serves as a high-flow oil removal filter providing exceptional coalescing efficiency. It is capable of filtering oil aerosols and particles down to 0.01 μm, achieving oil removal to class level 2 (0.01 mg/m³). This series includes a polycarbonate bowl protected by a metal guard, as well as an automatic drain valve. The filters are rated for a maximum inlet pressure of 10 bar.
The F39 series offers a compact oil removal filter solution featuring a G1/8 port size. It also delivers filtration down to 0.01 μm and is equipped with an automatic drain. Its design includes a screw-on bowl that significantly reduces maintenance time, allowing disassembly without requiring tools or removal from the air line, making it both practical and user-friendly.
All filter models in this range are available with manual, semi-automatic, or fully automatic drain options. They incorporate transparent bowls to facilitate easy monitoring of condensate levels, along with a service indicator that changes color from green to red, signaling when the filter element requires replacement.
Features:
Versatile Filtration Options
The filters are available in multiple filtration grades, including 40 μm, 5 μm, and 0.01 μm elements. This variety ensures compatibility with different air quality requirements, allowing users to select the appropriate filter based on their specific needs.
Specialized Filter Types for Various Applications
The F74G series filters are designed for general purpose use, effectively removing particulates and water from compressed air. For more demanding applications, the F74H and F39 filters provide high-efficiency removal of oil aerosols and particles as small as 0.01 μm, ensuring superior air purity.
Modular and Easy Installation
The Modular Excelon system incorporated in the F74G filters allows for flexible installation options. Users can connect these filters inline or modularly with other air preparation components using convenient Quikclamp connections, streamlining the setup process.
Maintenance Made Simple
A quick-release bayonet bowl design enables fast and tool-free removal of the bowl for element replacement and routine maintenance. Additionally, transparent polycarbonate bowls provide 360-degree visibility to monitor condensate levels easily.
Enhanced Monitoring and Drainage
Optional service indicators change color from green to red, signaling when it is time to replace the filter element. Furthermore, users can choose from manual, semi-automatic, or fully automatic drain options to suit their operational preferences.
Robust Performance Features
The F74G series filters deliver a high flow capacity of up to 83 L/s (176 SCFM), making them suitable for demanding air filtration tasks. Their durable construction, featuring a die-cast aluminum body and polycarbonate bowls with an optional metal guard, ensures reliability even in harsh environments. They are also capable of operating within a wide temperature range from -34°C to +50°C and can withstand a maximum inlet pressure of 10 bar when equipped with transparent bowls.
Environmental Compliance
These filters are designed with environmental considerations in mind, complying with RoHS standards to ensure eco-friendly construction and operation.
Technical Parameters:
| Max Inlet Pressure |
10 Bar |
| Bowl Material |
Polycarbonate With Metal Guard |
| Body Material |
Aluminium Alloy |
| Elastomers |
Nitrile Rubber, Chloroprene Rubber |
| Filtration Grades |
40 μm, 5 μm, 0.01 μm |
| Media |
Compressed Air |
Applications:
Industrial Automation
Ensuring a clean air supply is crucial for the optimal performance of pneumatic actuators, valves, and cylinders used in industrial automation. Proper filtration and air quality help maintain the efficiency and longevity of these components.
Packaging Machinery
Pneumatic components in packaging and filling equipment require reliable protection. Clean air supply prevents contamination and wear, thereby enhancing the durability and functionality of packaging machines.
Material Handling
Air filtration plays an essential role in material handling systems, including conveyors and pick-and-place units. Clean compressed air ensures smooth and reliable operation of these handling systems.
Compressed Air Distribution
Point-of-use filtration is vital for maintaining air quality for various tools and equipment. By filtering compressed air at the point of use, operational efficiency is improved and equipment lifespan is extended.
Food and Beverage Processing
In food and beverage processing, the use of dry, filtered air is essential to maintain hygiene standards. Clean air supply supports packaging and processing lines, ensuring product safety and quality.
Textile Machinery
Textile production relies on pneumatic controls that require clean air filtration. Proper air preparation helps in maintaining consistent operation and reducing equipment downtime.
Automotive Manufacturing
Air preparation is critical in automotive manufacturing environments such as paint shops, assembly lines, and testing equipment. Clean and dry air contributes to high quality finishes and reliable production processes.
General Industrial Pneumatics
Any industrial application that depends on compressed air benefits from clean, dry air supply. Proper filtration ensures that pneumatic devices function effectively and have an extended service life.
Customization:
The Norgren Pneumatic Filter Regulator Lubricator, model number F74G-4GN-AT3, is a high-quality pressure reducing air source processor designed for efficient compressed air treatment. Manufactured in China and certified with CE, this product ensures reliable performance and compliance with international standards.
Constructed with a durable aluminium alloy body, this unit offers excellent resistance to wear and corrosion. It features advanced filtration grades of 40 μm, 5 μm, and 0.01 μm to suit various applications, providing clean and purified air. The product supports a maximum inlet pressure of 10 Bar, making it suitable for a wide range of pneumatic systems.
This Pressure Reducer incorporates elastomers made from nitrile rubber and chloroprene rubber, enhancing sealing performance and longevity. It is an ideal solution for industries requiring precise air pressure control combined with effective filtration and lubrication.
We offer flexible packaging options, including carton packaging or customized packaging as per client requirements. The minimum order quantity is 1 unit, with a supply ability of 5000 pieces per month, ensuring prompt availability. Delivery time ranges from 1 to 7 workdays after payment.
Payment terms are flexible and include T/T, Western Union, and Paypal. Pricing is negotiable to accommodate diverse customer needs.
This product can be seamlessly integrated with FESTO oil mist filter systems to enhance lubrication efficiency and maintain optimal pneumatic system performance.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure the optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please refer to the product manual included with your FRL unit, which contains detailed installation, operation, and maintenance instructions.
Ensure that the filter element is regularly checked and replaced to maintain air quality and prevent contamination of downstream components. The regulator should be adjusted accurately to maintain the desired pressure level, and the lubricator must be filled with the appropriate grade of pneumatic oil to ensure smooth operation of pneumatic tools and equipment.
If you encounter any issues with your Pneumatic Filter Regulator Lubricator, such as pressure instability, air leaks, or insufficient lubrication, verify the installation and settings first. Consult the troubleshooting section of the manual for common problems and solutions.
For advanced technical assistance, service inquiries, or replacement parts, please contact the authorized service center or technical support team. Our experts can provide guidance on system integration, compatibility, and performance optimization to suit your specific application needs.
Regular maintenance and proper usage of your FRL unit will help maximize efficiency and extend service life. We recommend scheduling periodic inspections and servicing as part of your preventive maintenance program.
