Product Description:
The Norgren F17 and F18 series represent high-flow, general-purpose compressed air filters engineered to eliminate liquid water and solid particles from pneumatic systems. These filters play a crucial role in safeguarding downstream air-operated components such as valves, cylinders, and tools from corrosion and potential damage, ensuring reliable operation.
The F17 series supports port sizes ranging from G3/4 to G1-1/4 and accommodates flow rates up to 236 dm³/s (500 SCFM). In contrast, the F18 series caters to larger port sizes, specifically G1-1/2 and G2, and handles flow rates reaching 765 dm³/s. Both filter series are designed to withstand a maximum inlet pressure of 17 bar and operate efficiently within a temperature spectrum of -20°C to +80°C.
These filters are available with sintered polypropylene filter elements featuring either 40 μm or 5 μm filtration ratings, providing effective removal of particulates across diverse industrial settings. Users can select from manual 1/4-turn or automatic drain options based on their specific operational needs.

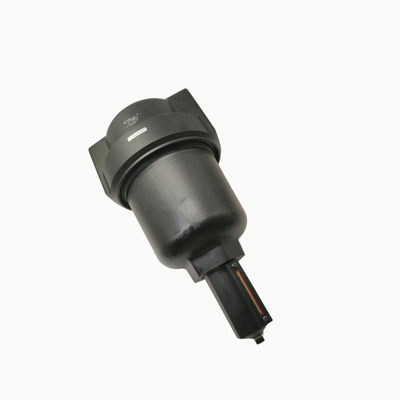

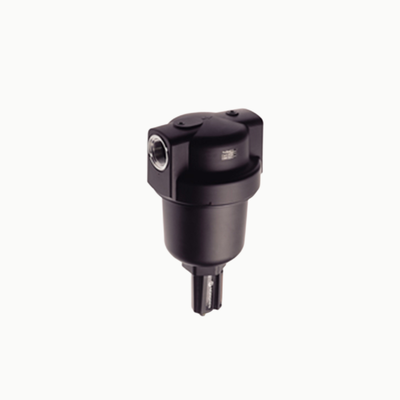

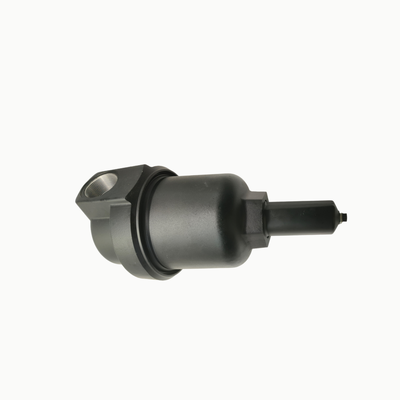

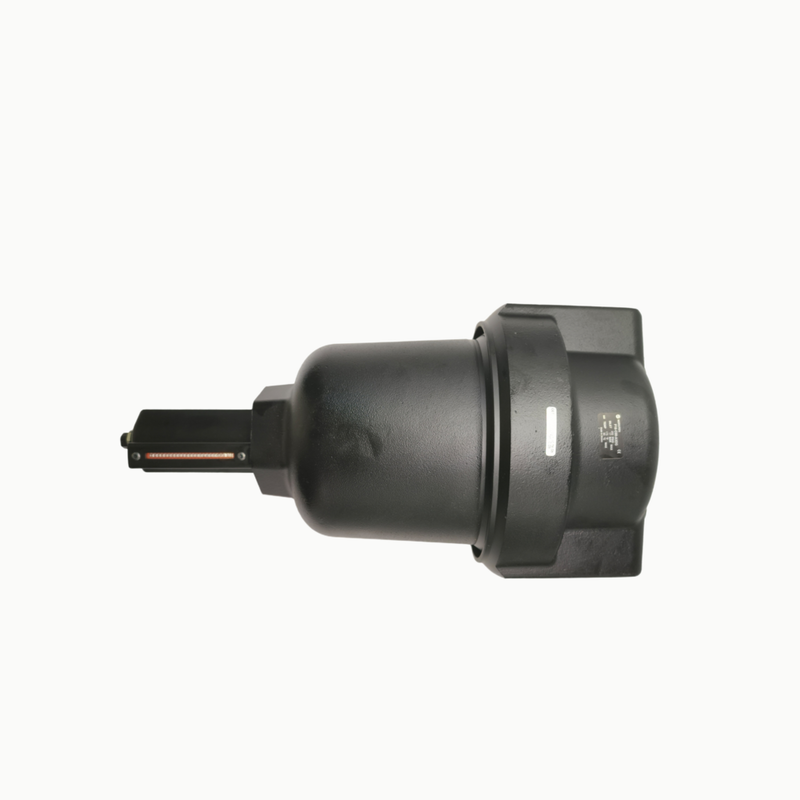

Constructed with an aluminium alloy bowl, each filter includes a prismatic liquid level indicator lens that offers high visibility for easy condensate monitoring. Additionally, the screw-on bowl design allows for convenient servicing without the need for specialized tools or removal from the air line, simplifying maintenance procedures.
Features:
High Flow Capacity
The F17 series offers a flow capacity of up to 236 dm³/s (500 SCFM), making it suitable for moderately demanding applications. For more intensive, large flow requirements, the F18 series can handle flows up to 765 dm³/s, providing robust performance where high volume air delivery is needed.
Filtration Options
Users can choose between two filtration grades, featuring sintered polypropylene elements that come in 40 μm or 5 μm options. These ensure effective removal of particulate matter to maintain cleaner air supply.
Drain Configurations
Both manual and automatic drain options are available. The manual drain includes a convenient 1/4-turn mechanism, while the automatic systems allow for hassle-free draining without user intervention.
Robust Aluminium Alloy Bowl
The durable aluminium alloy bowl is equipped with a sight glass and a highly visible prismatic liquid level indicator lens. This design aids in easy monitoring of liquid levels within the unit.
Maintenance-Friendly Design
The screw-on bowl design enables servicing without the need for tools or disconnecting the unit from the air line. This feature helps reduce maintenance time and simplifies upkeep.
High Pressure Capability
Engineered for high-pressure pneumatic systems, these units support a maximum inlet pressure of 17 bar (247 psi), ensuring reliable operation under demanding conditions.
Wide Operating Temperature Range
Designed to perform consistently across diverse environments, the products operate effectively within a temperature range from -20°C to +80°C.
Sealing Reliability
Equipped with standard NBR (nitrile rubber) seals, the units provide dependable sealing performance to prevent leaks and maintain system integrity.
Efficient Contaminant Removal
The filtration units efficiently remove both liquid and solid contaminants such as water, oil, and particulates, protecting air-operated devices from potential damage.
Multiple Port Size Options
To accommodate different system requirements, the F17 series is available with port sizes G3/4, G1, and G1-1/4. The F18 series offers larger ports including G1-1/2 and G2.
Lightweight Aluminium Alloy Body
The overall construction features a lightweight aluminium alloy body which combines corrosion resistance with durability, contributing to a long service life.
Technical Parameters:
| Filtration Grades |
40 μm, 5 μm |
| Body Material |
Aluminium Alloy |
| Drain Types |
Manual (1/4 Turn), Automatic |
| Port Sizes |
G3/4, G1, G1-1/4, G1-1/2, G2 |
| Elastomers |
NBR |
| Operating Temperature |
-20°C To +80°C |
Applications:
Industrial Automation
Providing a clean air supply is essential for pneumatic actuators, valves, and cylinders used in manufacturing and assembly lines. This ensures efficient operation and reduces downtime caused by contaminations.
Packaging Machinery
Pneumatic components in packaging and filling equipment require effective protection. Clean air supply helps maintain the longevity and performance of these components in various packaging processes.
Material Handling
Air filtration plays a crucial role in systems such as conveyors, pick-and-place units, and other handling equipment, ensuring smooth and reliable operation.
Compressed Air Distribution
For applications involving large air flows, point-of-use filtration is critical to uphold air quality and system efficiency throughout the distribution network.
Automotive Manufacturing
In automotive paint shops, assembly lines, and testing equipment, proper air preparation is vital for maintaining product quality and operational reliability.
Steel and Metallurgy
Demanding industrial environments such as steel and metallurgy industries benefit from robust and reliable air filtration solutions to ensure uninterrupted and safe operations.
General Industrial Pneumatics
Any pneumatic application that requires clean, dry compressed air with a high flow capacity can benefit from advanced filtration and air preparation systems to optimize performance.
Customization:
Our Pneumatic Filter Regulator Lubricator, model number F17-600-M3HG, is a high-quality pneumatic air purifier designed and manufactured by Norgren, a trusted brand in the industry. Made from durable aluminium alloy, this product ensures long-lasting performance and reliability in various pneumatic applications.
With filtration grades of 40 μm and 5 μm, our product effectively filters contaminants to protect your pneumatic system. The elastomers used are NBR, providing excellent sealing and resistance. It supports multiple port sizes including G3/4, G1, G1-1/4, G1-1/2, and G2, making it versatile for different setups.
This Pneumatic Filter Regulator Lubricator operates efficiently in temperatures ranging from -20°C to +80°C, suitable for diverse environments. Certified with CE standards and manufactured in China, it guarantees compliance with international quality and safety requirements.
We offer flexible packaging options such as carton packaging or as per client requirements. The minimum order quantity is 1 unit, with a supply ability of 5000 pieces per month. Delivery time is typically 1-7 work days after payment, and we accept various payment terms including T/T, Western Union, and Paypal.
As a reliable alternative to FESTO oil mist filter products, our Pneumatic Filter Regulator Lubricator provides exceptional performance and value. Whether you are looking for a FESTO oil mist filter replacement or a high-efficiency pneumatic air purifier, Norgren’s F17-600-M3HG model is an excellent choice. Price is negotiable to meet your business needs.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy cardboard box with protective foam inserts to prevent damage during transit. Each unit is individually sealed in a plastic bag to ensure cleanliness and protection from dust and moisture. The packaging includes a user manual, installation guide, and necessary mounting hardware.
Shipping: We offer reliable shipping options to ensure timely delivery of the Pneumatic Filter Regulator Lubricator. Products are shipped via trusted carriers with tracking information provided. Standard shipping typically takes 5-7 business days, while expedited options are available for faster delivery. All shipments are carefully inspected before dispatch to guarantee product quality and customer satisfaction.
