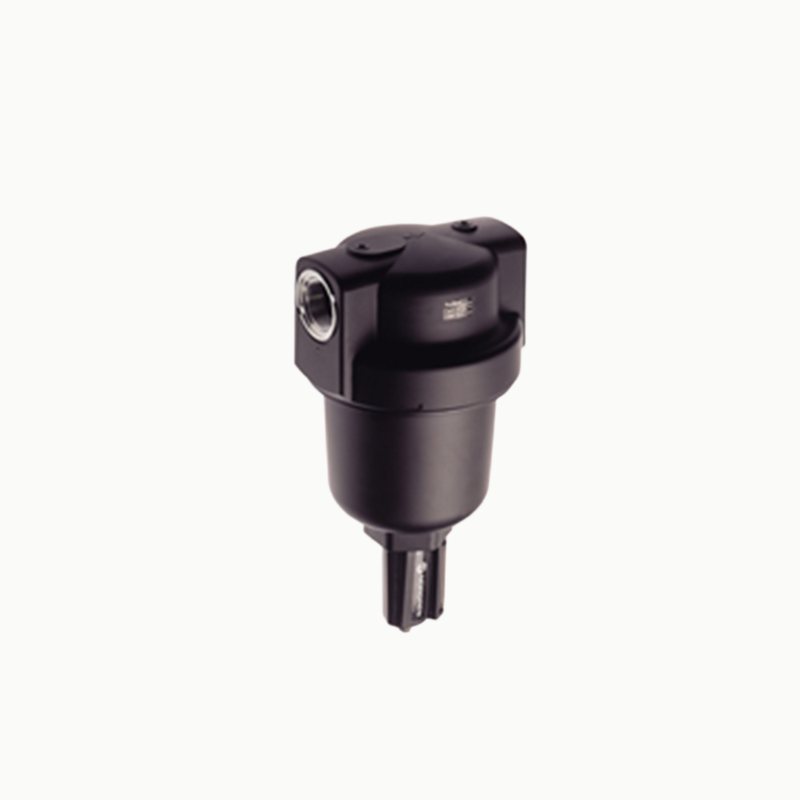

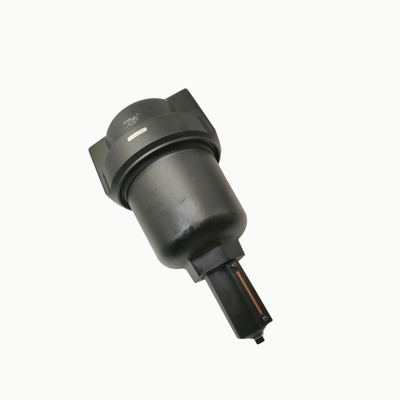

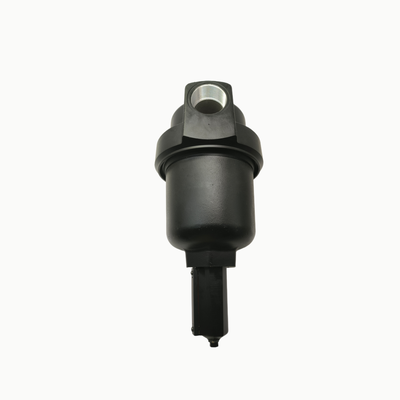

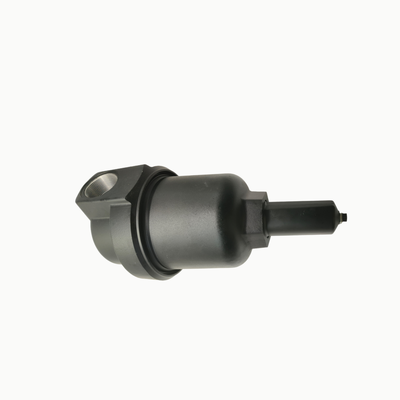

NORGREN F18‑C00‑A1DG F18‑C00‑A3DG Industrial Pneumatic Filter Max 17Bar Two Gauge Port Prismatic Liquid Indicator Serviceable Without Pipeline Disassembly For Heavy‑Duty Compressor Station

Product Description:

The Norgren F17 and F18 series are designed as high-flow, general-purpose compressed air filters. Their primary function is to eliminate liquid water and solid contaminants from pneumatic systems. By doing so, they help protect downstream air-operated equipment such as valves, cylinders, and tools, preventing corrosion and potential damage.

The F17 series accommodates port sizes ranging from G3/4 to G1-1/4 and supports flow rates of up to 236 dm³/s (500 SCFM). In contrast, the F18 series is tailored for larger port sizes, including G1-1/2 and G2, and can handle flow rates reaching 765 dm³/s. Both filter series are rated to a maximum inlet pressure of 17 bar and operate efficiently within a temperature span of -20°C to +80°C.

These filters come equipped with sintered polypropylene filter elements available in either 40 μm or 5 μm, ensuring effective removal of particulate matter for a variety of industrial needs. Drain configurations include a manual 1/4-turn option as well as an automatic drain feature. The filters’ aluminium alloy bowl is fitted with a highly visible prismatic liquid level indicator lens, facilitating easy condensate level monitoring. Additionally, the screw-on design of the bowl enables maintenance without the need for tools or removal from the air line.

Features:

The F17 series can handle flow rates up to 236 dm³/s (500 SCFM), while the F18 series is designed for even larger flow demands, supporting up to 765 dm³/s. These capacities make them ideal for applications requiring substantial air throughput.

Both series offer two filtration grades, featuring sintered polypropylene elements with either 40 μm or 5 μm pore sizes. This flexibility ensures effective removal of particulate contaminants from compressed air systems.

Users can choose between manual and automatic drain systems. The manual option includes a convenient 1/4-turn drain, while the automatic configurations provide hands-free maintenance to keep systems running smoothly.

The filters come equipped with a durable aluminium alloy bowl that incorporates a sight glass and a prismatic liquid level indicator lens. This design allows for easy visual monitoring of the liquid level inside the bowl.

Thanks to the screw-on bowl design, servicing can be performed without the need for tools or disconnecting the filter from the air line. This feature helps reduce downtime and simplifies routine maintenance tasks.

These filters are rated for a maximum inlet pressure of 17 bar (247 psi), making them suitable for high-pressure pneumatic systems. They also operate reliably across a wide temperature range, from -20°C to +80°C, accommodating various environmental conditions.

NBR (nitrile rubber) elastomers are used for sealing, offering dependable performance and ensuring a tight seal within the filtration system.

The filtration units efficiently remove both liquid and solid contaminants, protecting air-operated equipment from damage caused by water, oil, and particulate matter.

The F17 series offers port sizes of G3/4, G1, and G1-1/4, while the F18 series includes G1-1/2 and G2 options. These varying sizes allow the filters to be integrated into a wide range of system configurations.

Constructed from aluminium alloy, the body of the filters is both lightweight and resistant to corrosion, contributing to durability and ease of installation.

Technical Parameters:

Applications:

Customization:

Our Pneumatic Filter Regulator Lubricator, model F17-600-M3HG from the trusted Norgren brand, offers exceptional product customization services to meet your specific needs. Manufactured in CHINA and CE certified, this product ensures quality and reliability for your applications.

We provide flexible customization options including a choice of drain types: Manual (1/4 Turn) or Automatic, allowing you to select the most convenient option for your operation. The body material is made from durable Aluminium Alloy, complemented by NBR elastomers, ensuring long-lasting performance and resistance.

Choose from multiple port sizes including G3/4, G1, G1-1/4, G1-1/2, and G2 to seamlessly integrate with your existing pneumatic systems. Filtration grades are also customizable with options of 40 μm and 5 μm, providing precise filtration control for your air supply.

Our product serves as an efficient Pressure Reducer and Pressure reducing air source processor, ideal for maintaining optimal air pressure levels in your pneumatic setup. Additionally, it functions similarly to a FESTO oil mist filter, ensuring proper lubrication and filtering of the air supply for enhanced equipment life.

We accommodate minimum order quantities of just 1 unit, with pricing available upon negotiation. Packaging is tailored to your requirements, typically shipped in cartons to ensure safe delivery. Delivery time ranges from 1 to 7 work days after payment, supported by multiple payment terms including T/T, Western Union, and Paypal.

With a supply ability of 5000 pieces per month, we are equipped to handle both small and large scale orders efficiently. Trust Norgren's Pneumatic Filter Regulator Lubricator for reliable customization, superior performance, and excellent service.

Packing and Shipping:

Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged using high-quality, durable materials to ensure protection during transit. Each unit is individually wrapped in protective foam and placed inside a sturdy cardboard box. The packaging includes clear labeling with product details, handling instructions, and safety information. Additionally, the box is sealed with tamper-evident tape to maintain product integrity.

Shipping: Our Pneumatic Filter Regulator Lubricator is shipped using reliable carriers with tracking options available for all orders. We offer multiple shipping methods to accommodate different delivery timeframes and customer preferences, including standard, expedited, and express shipping. All shipments are carefully handled to prevent damage, and customers receive timely notifications regarding the status of their orders until delivery is completed.
