Product Description:

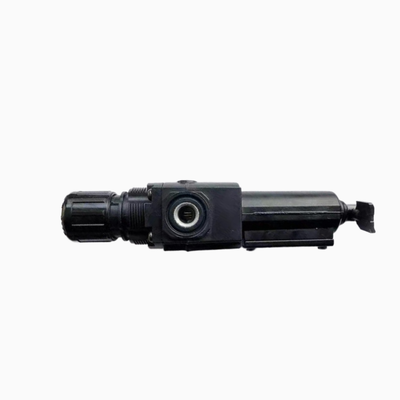

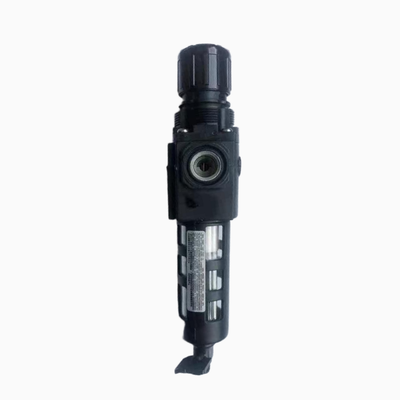

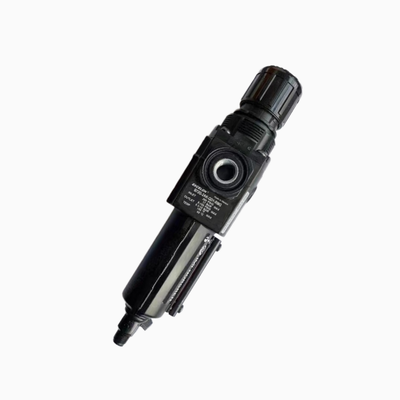

The Norgren F17 and F18 series are high flow, general-purpose compressed air filters. They are specifically designed to eliminate liquid water and solid contaminants from pneumatic systems. By doing so, these filters protect downstream air-operated equipment such as valves, cylinders, and tools from potential corrosion and damage.
The F17 series accommodates port sizes ranging from G3/4 to G1-1/4 and can handle flow rates of up to 236 dm³/s (500 SCFM). In contrast, the F18 series is built for larger port sizes, including G1-1/2 and G2, with significantly higher flow rates reaching up to 765 dm³/s. Both series are rated for a maximum inlet pressure of 17 bar and operate within a temperature range of -20°C to +80°C.
These filters come equipped with sintered polypropylene filter elements available in either 40 μm or 5 μm, ensuring efficient removal of particulates across various industrial environments. Drain options include both manual 1/4-turn drains and automatic drain configurations, providing flexibility to meet different maintenance preferences.

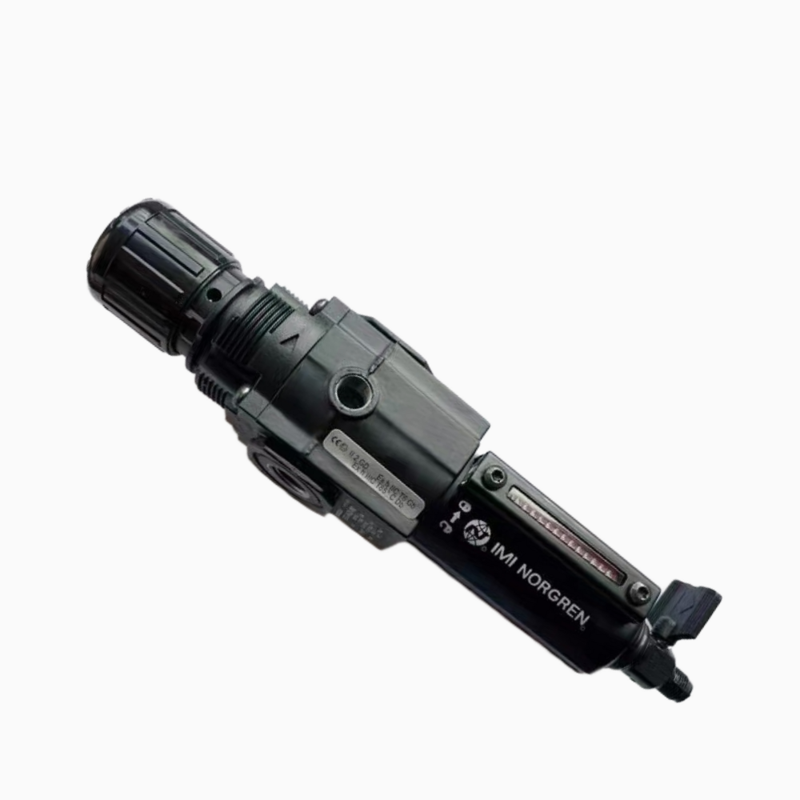

The filters feature an aluminium alloy bowl fitted with a highly visible prismatic liquid level indicator lens. This design allows for easy monitoring of condensate levels. Additionally, the screw-on bowl design permits servicing without the need for tools or removal from the air line, simplifying maintenance and reducing downtime.
Features:
High Flow Capacity
The F17 series offers a flow capacity of up to 236 dm³/s (500 SCFM), while the F18 series supports even larger flow demands, reaching up to 765 dm³/s. This makes both series ideal for applications requiring high-volume air flow.
Filtration Options
These series come with two filtration grades, featuring sintered polypropylene elements. Users can choose between 40 μm or 5 μm filtration levels to effectively remove particulate matter, ensuring clean and efficient operation.
Drainage Flexibility
Both manual and automatic drain options are available. The manual drain utilizes a convenient 1/4-turn mechanism, while automatic drain configurations provide hands-free operation, catering to different maintenance preferences.
Robust Aluminium Alloy Components
The air filter includes a durable aluminium alloy bowl equipped with a sight glass and a highly visible prismatic liquid level indicator lens. The screw-on bowl design enables tool-free servicing without the need to disconnect from the air line, minimizing maintenance time.
High-Pressure and Temperature Compatibility
Designed for demanding pneumatic systems, the filters can withstand a maximum inlet pressure of 17 bar (247 psi). Additionally, they operate reliably within a wide temperature range from -20°C to +80°C, making them suitable for diverse environmental conditions.
Quality Sealing and Contaminant Removal
Standard NBR (Nitrile Rubber) seals ensure dependable sealing performance. The filters effectively remove both liquid and solid contaminants, protecting air-operated devices from potential damage caused by water, oil, and particulate materials.
Versatile Port Sizes and Lightweight Construction
The F17 series offers multiple port sizes including G3/4, G1, and G1-1/4, while the F18 series is available with G1-1/2 and G2 ports to accommodate various system requirements. Furthermore, the aluminium alloy body provides a lightweight and corrosion-resistant structure.
Technical Parameters:
| Port Sizes |
G3/4, G1, G1-1/4, G1-1/2, G2 |
| Body Material |
Aluminium Alloy |
| Elastomers |
NBR |
| Filtration Grades |
40 μm, 5 μm |
| Operating Temperature |
-20°C To +80°C |
| Drain Types |
Manual (1/4 Turn), Automatic |
This Pneumatic Filter Regulator Lubricator is a FESTO air source treatment unit, serving as a pressure reducing air source processor with a high quality FESTO oil mist filter.
Applications:
Industrial Automation
In the field of industrial automation, maintaining a clean air supply is essential for the proper functioning of pneumatic actuators, valves, and cylinders. This is especially important in manufacturing and assembly lines where precision and reliability are critical.
Packaging Machinery
Pneumatic components used in packaging and filling machinery require effective protection to ensure consistent operation. Air filtration systems help safeguard these components from contaminants, thereby enhancing efficiency and reducing downtime.
Material Handling
Air filtration plays a vital role in material handling applications, including conveyors, pick-and-place units, and various handling systems. Clean air supply contributes to the smooth movement and accurate positioning of materials.
Compressed Air Distribution
For applications requiring large flow rates, point-of-use filtration is critical in compressed air distribution systems. This ensures the delivery of clean air at specific points, maintaining system performance and protecting downstream equipment.
Automotive Manufacturing
In automotive production environments, such as paint shops, assembly lines, and testing stations, air preparation is crucial. Clean and dry compressed air helps achieve high-quality finishes and reliable equipment operation.
Steel and Metallurgy
The steel and metallurgy industries demand robust air filtration solutions that can withstand harsh and demanding conditions. Reliable air filtration ensures the longevity and efficiency of pneumatic systems in these challenging environments.
General Industrial Pneumatics
Any industrial application that requires clean, dry compressed air with a high flow capacity can benefit from advanced air filtration systems. These systems help maintain optimal performance and prevent contamination-related failures.
Customization:
Norgren offers customized Pneumatic Filter Regulator Lubricator units under model number F17-600-M3HG, designed to meet diverse industrial needs. As a trusted brand originating from CHINA and certified with CE, this product ensures high quality and reliability for your pneumatic air purifier requirements.
Our FESTO air source treatment unit customization allows you to select from various elastomers, including durable NBR, and filtration grades of 40 μm and 5 μm, providing efficient pneumatic air purification tailored to your system's demands. You can also choose between manual (1/4 turn) or automatic drain types to optimize maintenance and performance.
Port sizes are available in multiple options such as G3/4, G1, G1-1/4, G1-1/2, and G2, enabling seamless integration with your existing pneumatic setup. The operating temperature range from -20°C to +80°C ensures reliable functionality across different working environments.
We accommodate a minimum order quantity of 1 unit with pricing available upon negotiation. Packaging is flexible and can be provided in cartons or customized as per client requirements. With a supply ability of 5000 pieces per month, we ensure timely delivery within 1-7 work days after payment.
Payment terms include T/T, Western Union, and PayPal for your convenience. Choose Norgren’s Pneumatic Filter Regulator Lubricator for a high-performance pneumatic air purifier solution customized to your exact specifications.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is carefully packaged in a sturdy, corrugated cardboard box to ensure protection during transit. Inside, the product is securely wrapped with foam inserts and plastic bags to prevent any damage from shocks, vibrations, and moisture. The packaging includes clear labeling with product information, handling instructions, and safety warnings to facilitate easy identification and proper handling.
Shipping: The product is shipped via reliable courier services with tracking options available for every order. It is handled with care to avoid any damage during transportation. Depending on the destination, shipping options include standard, expedited, and freight services. All shipments comply with relevant transportation regulations to ensure safe and timely delivery to the customer’s location.
