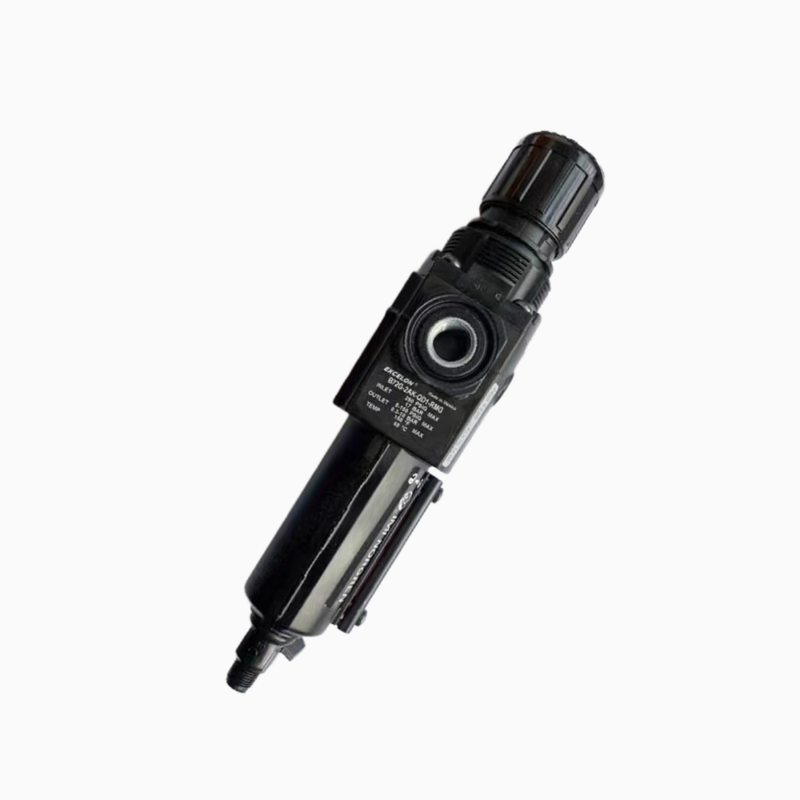

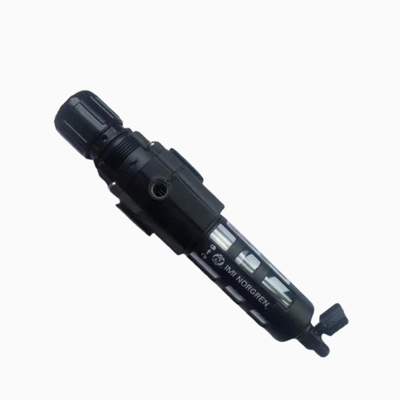

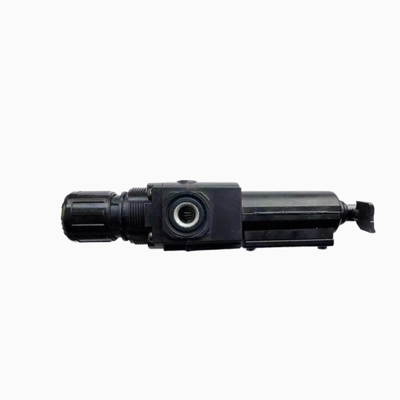

NORGREN F17‑A00‑A3HG In‑Line Pneumatic Air Filter Auto Drain Function Meet ISO8573‑1 Air Standard Protect Pneumatic Tools Against Contaminant Corrosion Damage

Product Description:

The Norgren F17 and F18 series represent high-flow, general-purpose compressed air filters specifically engineered to eliminate liquid water and solid contaminants from pneumatic systems. By doing so, they effectively protect downstream air-operated equipment such as valves, cylinders, and tools from potential corrosion and damage caused by impurities.

The F17 series accommodates port sizes ranging from G3/4 to G1-1/4, supporting flow rates up to 236 dm³/s (500 SCFM). In contrast, the F18 series is designed for larger port sizes of G1-1/2 and G2, delivering flow rates as high as 765 dm³/s. Both lines maintain a maximum inlet pressure of 17 bar and operate within a temperature range of -20°C to +80°C, making them suitable for diverse industrial environments.

These filters are equipped with sintered polypropylene filter elements available in 40 μm or 5 μm configurations, ensuring effective removal of particulate matter across varied applications. Drain options include both manual 1/4-turn drains and automatic drain mechanisms, providing flexibility based on operational needs. The aluminium alloy bowl features a highly visible prismatic liquid level indicator lens that simplifies condensate monitoring.

Additionally, the user-friendly screw-on bowl design allows for easy servicing without the need for tools or disconnection from the air line, promoting efficient maintenance and minimizing downtime in pneumatic systems.

Features:

The F17 series offers a flow capacity of up to 236 dm³/s (500 SCFM), while the F18 series can handle flows up to 765 dm³/s. These capacities make them ideal for applications requiring large and demanding flow rates.

Users can choose between two filtration grades: 40 μm or 5 μm sintered polypropylene elements. These options provide effective removal of particulate contaminants to protect system components.

Both manual and automatic drain configurations are available. The manual drain features a 1/4-turn mechanism, allowing easy operation, while automatic drain setups enable hassle-free maintenance.

Constructed from durable aluminium alloy, the bowl includes a sight glass and a highly visible prismatic liquid level indicator lens, ensuring easy monitoring of fluid levels during operation.

The screw-on bowl design permits servicing without the need for tools or removal from the air line, significantly reducing maintenance time and effort.

Designed for high-pressure pneumatic systems, these units support a maximum inlet pressure of 17 bar (247 psi), ensuring reliable performance under demanding conditions.

With an operating temperature range from -20°C to +80°C, these filters perform reliably in a variety of environmental conditions.

Standard NBR (nitrile rubber) seals are used to guarantee effective sealing performance, maintaining the integrity of the system.

These filters efficiently remove both liquid and solid contaminants such as water, oil, and particulate matter, thereby protecting air-operated devices from potential damage.

To accommodate various system requirements, the F17 series is available with port sizes G3/4, G1, and G1-1/4, while the F18 series offers G1-1/2 and G2 options.

The aluminium alloy body provides a lightweight yet corrosion-resistant construction, enhancing durability and ease of installation.

Technical Parameters:

Applications:

Industrial Automation: Ensuring a clean air supply is crucial for pneumatic actuators, valves, and cylinders used in various manufacturing and assembly line processes. Proper filtration helps maintain the efficiency and longevity of these components.

Packaging Machinery: Pneumatic parts in packaging and filling machines require protection from contaminants. Effective air filtration safeguards these components, enhancing reliability and reducing maintenance needs.

Material Handling: Conveyors, pick-and-place systems, and other handling equipment rely on clean compressed air. Air filtration systems play a key role in maintaining smooth operation and preventing downtime.

Compressed Air Distribution: For applications involving large airflow, point-of-use filtration ensures that compressed air remains uncontaminated, protecting downstream equipment and optimizing performance.

Automotive Manufacturing: In automotive production environments such as paint shops, assembly lines, and testing areas, air preparation with proper filtration is vital to achieve quality and efficiency.

Steel and Metallurgy: Industrial environments in the steel and metallurgy sectors demand robust and reliable air filtration solutions to cope with harsh conditions, ensuring uninterrupted operations.

General Industrial Pneumatics: Any application that requires clean, dry compressed air with high flow capacity benefits from comprehensive filtration systems tailored to specific industrial needs.

Customization:

Our Pneumatic Filter Regulator Lubricator, model number F17-600-M3HG, branded Norgren and made in CHINA, offers customizable options to meet your specific needs. Featuring a robust aluminium alloy body material and high-quality NBR elastomers, this product ensures durability and reliable performance.

We provide filtration grades of 40 μm and 5 μm, suitable for various applications requiring precise air filtration. The operating temperature range is from -20°C to +80°C, making it adaptable to different working environments.

Choose between manual (1/4 turn) and automatic drain types to suit your maintenance preferences. Our product is certified with CE, assuring compliance with international standards.

We support flexible packaging options, including carton packaging or as per client requirements. With a supply ability of 5000 pieces per month and a minimum order quantity of 1, we accommodate both small and large orders.

Pricing is negotiable to provide the best value for your investment. Delivery time is prompt, typically within 1-7 work days after payment confirmation. Payment terms accepted include T/T, Western Union, and Paypal for your convenience.

This Pneumatic Filter Regulator Lubricator is an excellent solution when paired with FESTO oil mist filter and Pressure Reducer systems, enhancing overall pneumatic system efficiency and performance.
