Product Description:

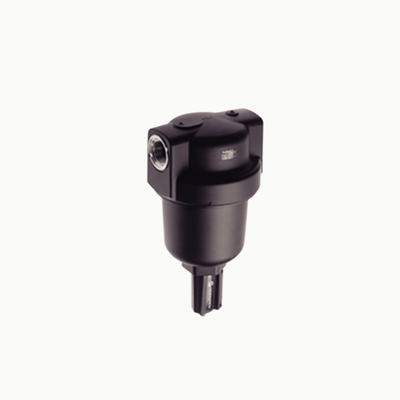

The Norgren F17 and F18 series are high-flow, general-purpose compressed air filters specifically designed to eliminate liquid water and solid contaminants from pneumatic systems. These filters play a crucial role in safeguarding downstream air-operated equipment such as valves, cylinders, and tools from potential corrosion and damage.
The F17 series is available with port sizes ranging from G3/4 to G1-1/4 and can handle flow rates up to 236 dm³/s (500 SCFM). In contrast, the F18 series is designed for larger port sizes, including G1-1/2 and G2, supporting flow rates up to 765 dm³/s. Both series can operate under a maximum inlet pressure of 17 bar and function efficiently within a temperature range from -20°C to +80°C.
These filters come equipped with sintered polypropylene filter elements in two options: 40 μm or 5 μm, ensuring effective removal of particulate matter suitable for numerous industrial applications. Users can choose between manual 1/4-turn drain options or automatic drain configurations based on their system requirements.

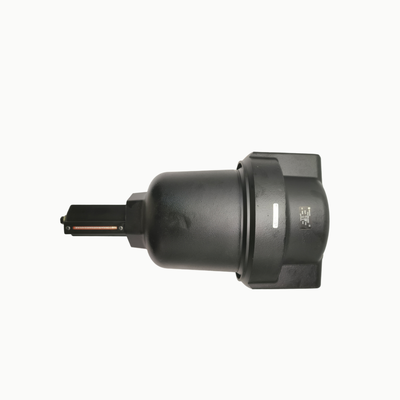

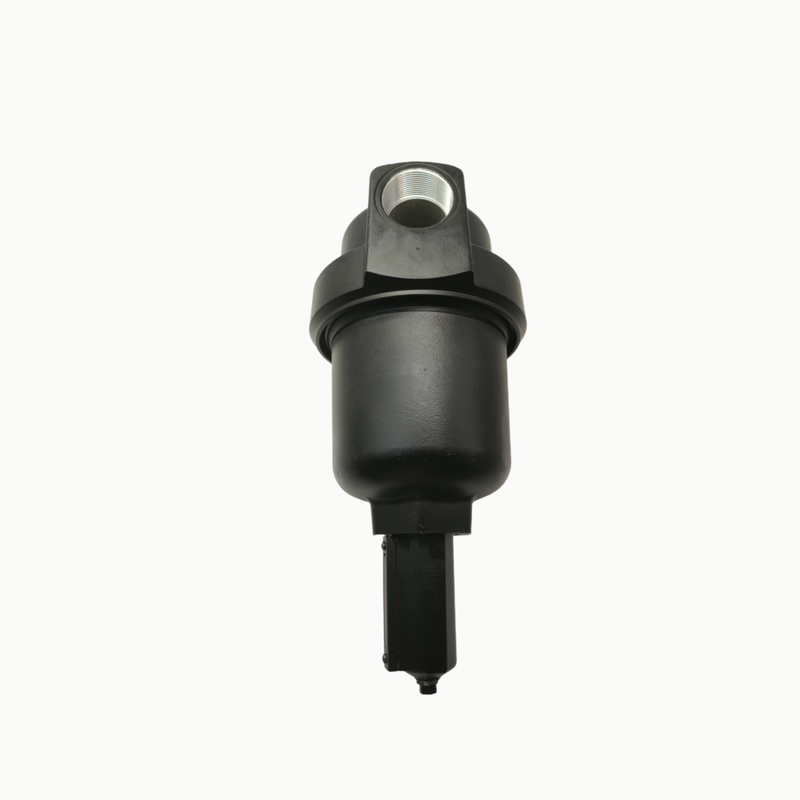

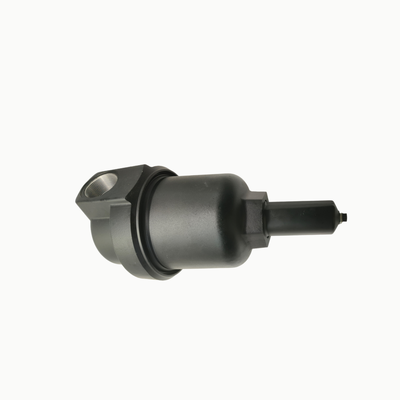

The aluminium alloy bowl features a prismatic liquid level indicator lens that offers excellent visibility for monitoring condensate levels. Additionally, the bowl uses a screw-on design, which simplifies servicing by allowing removal without the need for tools or disconnecting the filter from the air line.
Features:
F17 and F18 Series Product Features
The F17 and F18 series provide exceptional high flow capacities designed to meet the needs of various applications. The F17 series supports flow rates up to 236 dm³/s (500 SCFM), while the F18 series handles demanding large flow applications with capacities up to 765 dm³/s.
These series offer two filtration grade options, featuring sintered polypropylene elements that effectively remove particulate contamination. Customers can choose between 40 μm or finer 5 μm filters to suit their specific filtration requirements.
Drainage is flexible with manual and automatic options available. The manual version includes a convenient 1/4-turn drain, while automatic drain configurations provide hands-free operation, enhancing ease of maintenance.
Built with a durable aluminium alloy, the bowl incorporates a sight glass and a highly visible prismatic liquid level indicator lens. This design ensures clear monitoring of liquid levels within the system.
The innovative screw-on bowl design allows servicing without the need for tools or removal from the air line, significantly reducing maintenance time and effort.
These filters are rated for a maximum inlet pressure of 17 bar (247 psi), making them suitable for high-pressure pneumatic systems and ensuring reliable operation under demanding conditions.
Operating reliably across a wide temperature range from -20°C to +80°C, the units are ideal for use in diverse environmental conditions.
Standard seals are made from nitrile rubber (NBR), providing dependable sealing performance to prevent leaks and ensure system integrity.
The filters effectively remove both liquid and solid contaminants, protecting air-operated devices from damage caused by water, oil, and particulate matter.
Multiple port sizes are available to accommodate various system requirements. The F17 series supports G3/4, G1, and G1-1/4 ports, while the F18 series offers G1-1/2 and G2 ports.
Finally, the aluminium alloy body offers a lightweight and corrosion-resistant construction, contributing to the durability and longevity of the product.
Technical Parameters:
| Operating Temperature |
-20°C To +80°C |
| Elastomers |
NBR |
| Port Sizes |
G3/4, G1, G1-1/4, G1-1/2, G2 |
| Drain Types |
Manual (1/4 Turn), Automatic |
| Body Material |
Aluminium Alloy |
| Filtration Grades |
40 μm, 5 μm |
Applications:
Industrial Automation
Ensuring a clean air supply is essential for pneumatic actuators, valves, and cylinders used in manufacturing and assembly lines. Proper filtration helps maintain the efficiency and longevity of these components, enabling smooth industrial automation processes.
Packaging Machinery
Pneumatic components within packaging and filling equipment require protection from contaminants. Effective air filtration safeguards these systems, enhancing reliability and reducing maintenance needs.
Material Handling
Air filtration plays a critical role in conveyors, pick-and-place units, and various handling systems. Clean compressed air ensures optimal performance and minimizes downtime in material handling operations.
Compressed Air Distribution
For applications involving large airflow, point-of-use filtration provides targeted purification. This approach helps maintain air quality right at the source, improving the overall system reliability.
Automotive Manufacturing
In automotive production, clean air preparation is vital for paint shops, assembly lines, and testing equipment. Proper air treatment prevents defects and ensures consistent product quality throughout the manufacturing process.
Steel and Metallurgy
The demanding environments in steel and metallurgy industries require robust and reliable air filtration systems. These systems protect pneumatic components against harsh conditions, contributing to uninterrupted industrial operations.
General Industrial Pneumatics
Clean and dry compressed air with high flow capacity is essential in various pneumatic applications across industries. Proper air filtration supports equipment performance and extends component lifespan in these general industrial uses.
Customization:
Norgren offers the Pneumatic Filter Regulator Lubricator model F17-600-M3HG, a high-quality pneumatic air purifier designed to provide efficient pressure reducing air source processing. Manufactured in China and certified with CE, this product ensures reliable performance and compliance with international standards.
The unit supports various drain types, including Manual (1/4 Turn) and Automatic, allowing customization to fit your specific needs. With port sizes available in G3/4, G1, G1-1/4, G1-1/2, and G2, it caters to diverse pneumatic system requirements. Filtration grades of 40 μm and 5 μm provide options for different air purification levels, making it an ideal pneumatic air purifier for various industrial applications.
Designed to operate within a temperature range of -20°C to +80°C, and equipped with durable NBR elastomers, the F17-600-M3HG ensures longevity and resilience under demanding conditions. Packaging can be customized according to client requirements, typically shipped in cartons.
We offer a minimum order quantity of 1 unit with a monthly supply ability of 5000 pieces. Pricing is negotiable, and payment terms include T/T, Western Union, and Paypal for your convenience. Delivery time ranges from 1 to 7 working days after payment, ensuring prompt fulfillment of your orders.
Choose the Norgren F17-600-M3HG for a reliable and customizable pneumatic air purifier solution that excels as a pressure reducing air source processor, tailored to meet your specific industrial needs.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy cardboard box with protective foam inserts to prevent damage during transit. Each unit is individually wrapped in anti-static plastic to protect against dust and moisture. The packaging includes an instruction manual, mounting hardware, and a warranty card to ensure a complete and user-friendly experience.
Shipping: We offer reliable shipping options to deliver the Pneumatic Filter Regulator Lubricator safely and promptly. Products are shipped via trusted courier services with tracking available for all orders. Standard shipping typically takes 5-7 business days, while expedited options are available for faster delivery. All shipments are carefully handled and insured to guarantee that your product arrives in perfect condition.
