Product Description:

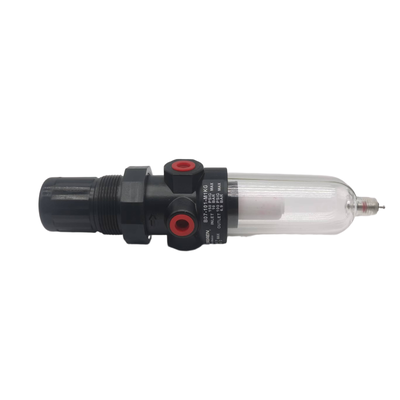

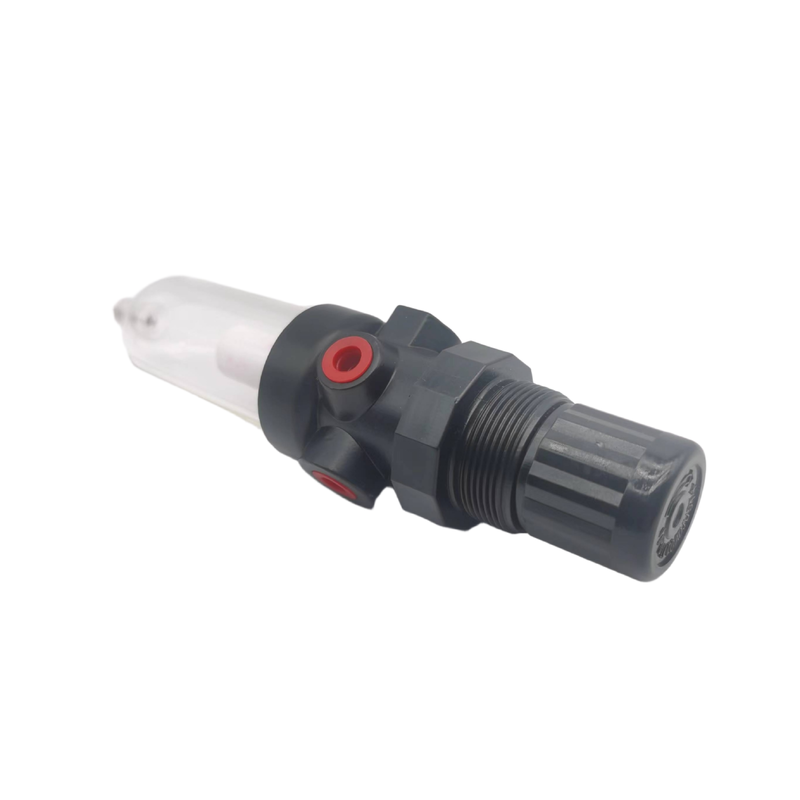

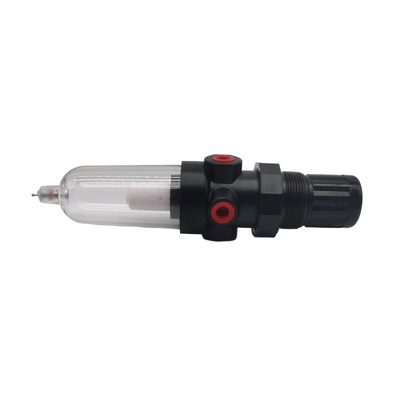

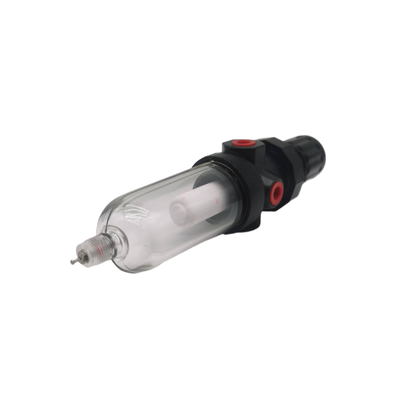

The Norgren B07 and B68G series are integrated filter regulator units designed to combine the functions of filtration and pressure regulation within a single, compact housing. These units effectively remove liquid water and solid contaminants from compressed air lines while ensuring precise control of downstream pressure.
The B07 series is a range of miniature filter regulators specifically crafted for space-limited installations. It features a durable zinc alloy body and a transparent polycarbonate bowl that provides 360-degree visibility. Additionally, the series includes a non-rising adjustment knob equipped with a snap-action locking mechanism for secure and easy pressure adjustments. Available with G1/8 and G1/4 port sizes, the B07 series is capable of delivering flow rates up to 24 SCFM (11 dm³/s), with outlet pressure adjustment ranges between 0.3 to 7 bar or 0.3 to 10 bar.
On the other hand, the B68G series is incorporated into the Olympian Plus plug-in system, simplifying modular installation and removal. These units come with an aluminium body and an aluminium bowl, which features a prismatic liquid level indicator for convenient monitoring. The B68G series is offered with G3/4, G1, and G1-1/2 port options. It supports higher flow rates up to 440 SCFM (207.7 dm³/s), has an outlet pressure adjustment range of 0.4 to 8 bar, and can handle a maximum inlet pressure of 17 bar.
Features:
Integrated Filter and Regulator
The integrated filter and regulator unit combines particulate filtration and pressure regulation into one compact device. This design helps save valuable installation space while ensuring efficient system operation.
Filtration Options
There are two filtration grades available to suit different requirements: 5 µm and 40 µm sintered polypropylene filter elements. Both options effectively remove contaminants, providing clean, reliable air flow.
Drain Configurations
Users can select between manual and automatic drain options, making condensate removal convenient and adaptable to various system needs.
Bowl Types for Visibility and Durability
The transparent polycarbonate bowl (model B07) permits 360-degree visibility of condensate levels, facilitating easy monitoring. For harsher environments, the aluminium bowl with a prismatic liquid level indicator (model B68G) offers enhanced durability and clear liquid level indication.
Adjusting and Pressure Features
The non-rising adjusting knob includes a snap-action locking mechanism to prevent accidental pressure changes. Additionally, the relieving design allows the downstream pressure to reduce safely when the system is dead-ended.
Compact and Modular Design
The compact miniature design of the B07 model is ideal for confined spaces in small pneumatic systems. Meanwhile, the Olympian Plus plug-in system of the B68G model supports quick, modular installation and removal, simplifying maintenance and system expansion.
Performance Specifications
The B68G model delivers a high flow capacity of up to 440 SCFM, making it suitable for demanding applications requiring large flow rates. Maximum inlet pressures are 10 bar for the B07 and 17 bar for the B68G. Temperature ranges supported are -34°C to +50°C for the polycarbonate bowl (B07) and -20°C to +80°C for the aluminium bowl (B68G).
Additional Features
Full flow gauge ports are provided on these units, allowing pressure monitoring without restricting airflow, ensuring optimal system performance.
Technical Parameters:
| Filtration Grades |
5 µm, 40 µm |
| Operating Temperature |
-34°C To +50°C |
| Drain Types |
Manual, Automatic |
| Elastomers |
Nitrile, Synthetic Rubber |
| Gauge Port |
Rc 1/8 |
| Bowl Material |
Polycarbonate, Aluminium |
| Body Material |
Zinc Alloy, Aluminium |
| Port Sizes |
G1/8, G1/4, G3/4, G1, G1-1/2 |
Applications:
Industrial Automation
In industrial automation, it is crucial to have a clean and well-regulated air supply for pneumatic actuators, valves, and cylinders. This ensures optimal performance and longevity of the equipment.
Packaging Machinery
Pneumatic components used in packaging and filling equipment require protection to maintain efficiency and reliability. Proper air treatment safeguards these components from contaminants.
Material Handling
For conveyors, pick-and-place units, and various handling systems, prepared air plays a vital role. It guarantees smooth operation by preventing malfunction caused by impurities or improper pressure.
Compressed Air Distribution
At the point of use, filtration and regulation of compressed air are essential to ensure that tools and equipment operate effectively and without damage due to unclean or improperly pressured air.
General Pneumatic Systems
In manufacturing facilities, removing contaminants and controlling pressure within pneumatic systems is key to maintaining consistent production quality and extending system lifespan.
Textile Machinery
Textile production relies on pneumatic controls that demand clean, filtered, and regulated air to function correctly, thereby supporting the overall quality of the manufactured fabrics.
Automotive Manufacturing
In automotive manufacturing, air preparation is critical in paint shops, assembly lines, and testing equipment to ensure precision and reduce defects in the final products.
