Product Description:

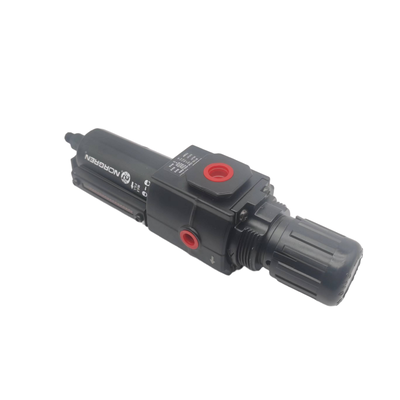

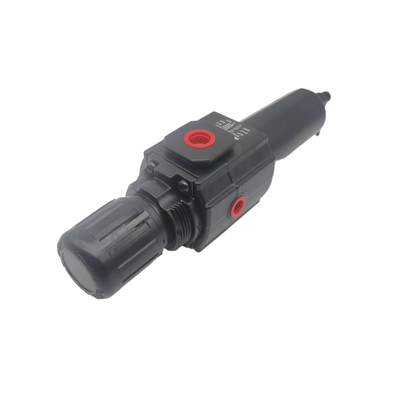

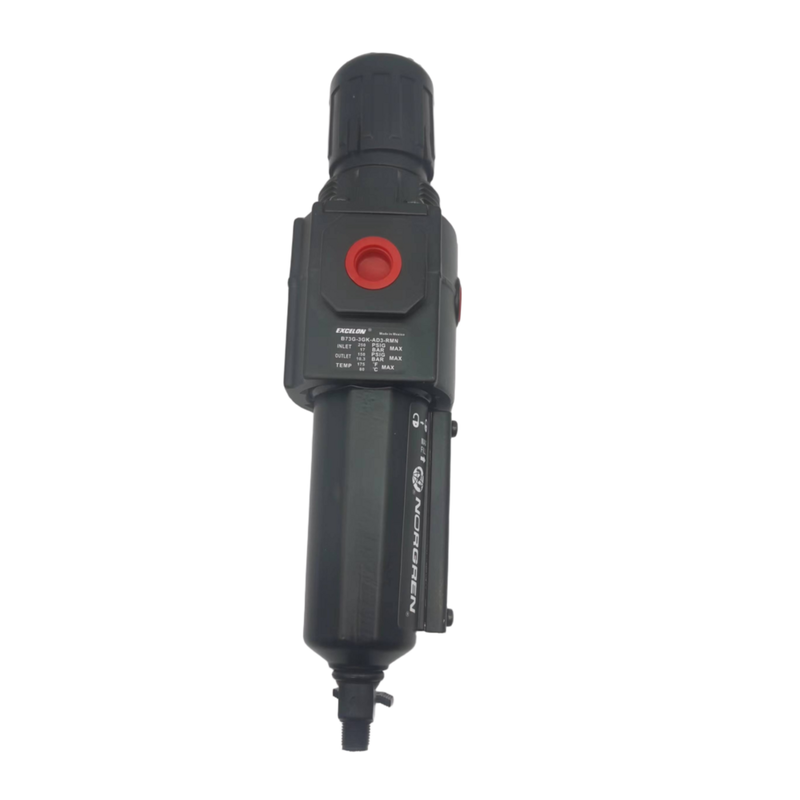

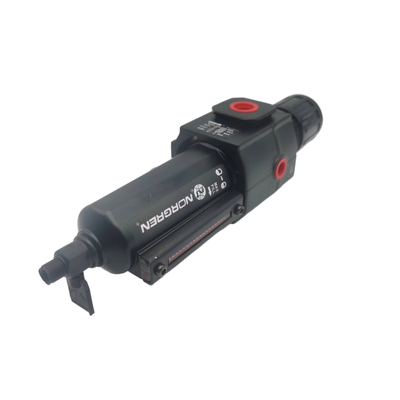

The Norgren B72G and B73G series represent high-performance filter regulators within the Excelon modular air preparation system. These compact, integrated units are designed to combine both filtration and pressure regulation in a single housing. They efficiently remove water and solid particles from compressed air lines while ensuring precise downstream pressure control.
Thanks to the Excelon design, these filter regulators can be installed either in-line or as part of a modular assembly with other Excelon products. The Quickclamp connections facilitate easy installation, system expansion, and maintenance, making these units highly versatile for various setups.
The B72G series comes equipped with G1/4 and G3/8 port options and provides a flow rate of 38 dm³/s (80 SCFM). In comparison, the B73G series supports G1/4, G3/8, and G1/2 port sizes and delivers a higher flow rate of 50 dm³/s (106 SCFM). Both series incorporate a balanced valve design that reduces the impact of inlet pressure fluctuations on the outlet pressure, guaranteeing consistent and stable regulation.
These units offer flexibility through the availability of 5 µm or 40 µm sintered polypropylene filter elements and come with either manual or automatic drain configurations. Such options ensure suitability for a wide range of industrial applications.
Key features include a push-to-lock adjustment knob protected by a tamper-resistant cover, a quick-release bayonet bowl for straightforward maintenance, and full flow gauge ports that allow pressure monitoring without restricting airflow. The transparent polycarbonate bowls provide 360-degree visibility of condensate levels, while the durable zinc and aluminium bodies are designed to withstand demanding environmental conditions.
Features:
Integrated Filter and Regulator
This device combines particulate filtration and pressure regulation into one compact unit, effectively saving valuable installation space. By integrating these two functions, it simplifies the setup and enhances overall system efficiency.
Excelon Modular System
The system supports both in-line and modular installation options, allowing seamless connection with other Excelon air preparation products through Quickclamp fittings. This flexibility ensures easy integration and expansion within various pneumatic setups.
Filtration Options
Two filtration grades are available to suit different needs: 5 µm and 40 µm sintered polypropylene filter elements. These filters efficiently remove contaminants, ensuring clean air flow and protecting downstream equipment.
Drain Configurations
Users can select between manual and automatic drain options. The manual version features a convenient 1/4-turn drain valve, while the automatic configuration offers hassle-free condensate removal without manual intervention.
Transparent Polycarbonate Bowls
The bowls are made from transparent polycarbonate, providing 360-degree visibility of condensate levels. This design enables easy and quick monitoring to maintain optimal performance.
Adjustment and Safety Features
The push-to-lock adjustment knob prevents accidental changes in pressure settings. For added security, a tamper-resistant cover is also available to protect against unauthorized adjustments.
Relieving and Balanced Valve Design
The relieving design helps reduce downstream pressure when the system is dead-ended. Additionally, the balanced valve design minimizes the impact of inlet pressure fluctuations on outlet pressure, ensuring stable and consistent regulation.
Pressure Monitoring and Maintenance
Full flow 1/8" gauge ports allow for accurate pressure monitoring without restricting airflow. The quick-release bayonet bowl enables rapid removal for filter element replacement and maintenance, all without the need for tools.
Performance Specifications
- High Flow Capacity: B72G model delivers 38 dm³/s (80 SCFM); B73G model offers 50 dm³/s (106 SCFM)
- Wide Outlet Pressure Range: Adjustable from 0.3 to 10 bar
- Maximum Inlet Pressure: 10 bar for transparent bowls; 17 bar for metal bowls
- Operating Temperature Range: -34°C to +50°C with polycarbonate bowls; -20°C to +65°C with metal bowls
Technical Parameters:
| Filter Element Material |
Sintered Polypropylene |
| Outlet Pressure Adjustment |
0.3–10 Bar |
| Body Material |
Zinc / Aluminium, Zinc Alloy |
| Media |
Compressed Air |
| Port Sizes |
G1/4, G3/8, G1/2 |
| Drain Types |
Manual, Automatic, Semi-Automatic |
This FESTO air source treatment unit features a high-quality filter element made of sintered polypropylene, ensuring reliable filtration for your compressed air system. As a premium FESTO oil mist filter, it offers precise outlet pressure adjustment ranging from 0.3 to 10 Bar. The robust body material, composed of zinc, aluminium, and zinc alloy, guarantees durability and longevity. Suitable for various applications, this FESTO air source treatment unit supports multiple port sizes including G1/4, G3/8, and G1/2, and offers versatile drain types such as manual, automatic, and semi-automatic to meet diverse operational needs.
Applications:
Industrial Automation
In industrial automation, the supply of clean and regulated air is essential for the proper functioning of pneumatic actuators, valves, and cylinders. Ensuring air purity and consistent pressure helps maintain the efficiency and reliability of automated systems.
Packaging Machinery
Packaging and filling equipment rely on precise protection and pressure control of pneumatic components. Maintaining these conditions helps achieve accurate and efficient packaging operations, protecting both the machinery and the products.
Material Handling
For conveyors, pick-and-place units, and various handling systems, proper air preparation is crucial. Clean, regulated air ensures smooth operation of these pneumatic components, minimizing downtime and extending the service life of equipment.
Compressed Air Distribution
At each point of use, filtration and regulation of compressed air are necessary to maintain the performance and longevity of tools and equipment. Effective air treatment directly contributes to operational efficiency.
General Pneumatic Systems
Manufacturing facilities benefit from the removal of contaminants and proper pressure control within their pneumatic systems. Clean, regulated air improves the reliability and safety of pneumatic processes across various applications.
Textile Machinery
In textile production, pneumatic controls require effective air filtration and regulation. This enables consistent machine performance and helps maintain product quality.
Automotive Manufacturing
Air preparation plays a vital role in automotive manufacturing environments, including paint shops, assembly lines, and testing equipment. Clean and regulated air contributes to optimal operational conditions and high-quality output.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air flow. To maintain the efficiency and reliability of your FRL, regular maintenance and proper handling are essential.
For technical support, ensure that you have the model number, serial number, and detailed description of the issue ready. This information will help in providing prompt and accurate assistance.
When installing the FRL unit, verify that the airflow direction matches the markings on the product. Use appropriate fittings and avoid over-tightening to prevent damage. Ensure that the unit is mounted in an accessible location for ease of maintenance.
Regularly check and replace the filter element to prevent contamination from entering your pneumatic system. Drain accumulated water and debris from the filter bowl frequently to maintain clear airflow.
Adjust the regulator to the desired pressure setting as per your system requirements. Avoid exceeding the maximum pressure rating specified for the unit to ensure safe operation.
Lubricators should be filled with the recommended pneumatic oil and checked regularly to maintain proper lubrication of downstream components. Avoid overfilling to prevent oil carryover into the system.
If any abnormal noises, pressure drops, or leaks are observed, inspect the unit for damage or wear. Replace any faulty parts with genuine manufacturer components to ensure compatibility and safety.
For detailed troubleshooting, maintenance guides, and replacement parts information, refer to the product manual provided with your FRL unit.
Following these guidelines will help maximize the performance and lifespan of your Pneumatic Filter Regulator Lubricator system, ensuring smooth and efficient operation of your pneumatic equipment.
