Product Description:

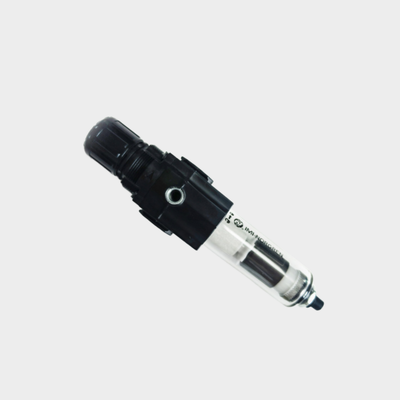

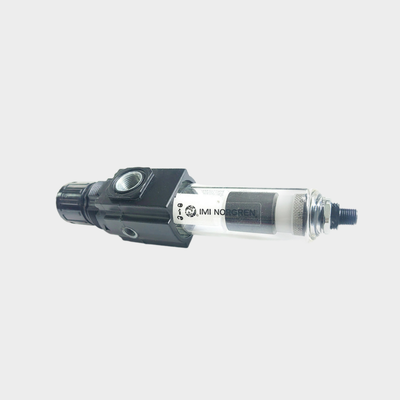

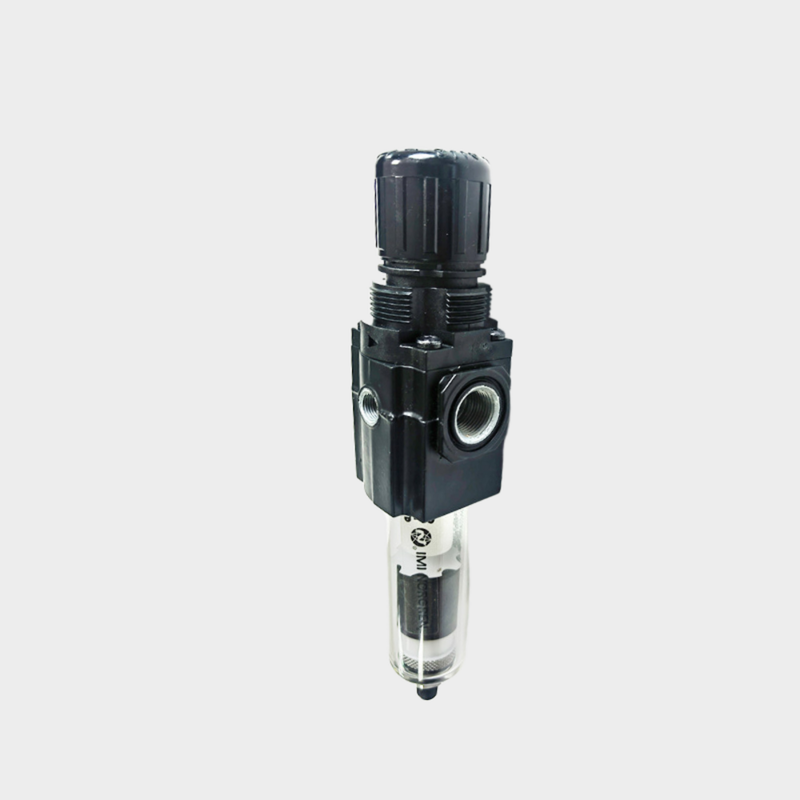

The Norgren B72G and B73G series represent high-performance filter regulators within the Excelon modular air preparation system. These compact, integrated units effectively combine filtration and pressure regulation into one cohesive housing. They are designed to remove water and solid particles from compressed air lines while ensuring precise maintenance of downstream pressure.
Featuring the innovative Excelon design, these units can be installed either in-line or modularly alongside other Excelon products. The Quickclamp connection system simplifies installation, system expansion, and maintenance, making these filter regulators highly adaptable and user-friendly.
The B72G series comes with port options of G1/4 and G3/8 and supports a flow rate of 38 dm³/s (80 SCFM). Meanwhile, the B73G series offers a wider range of port sizes including G1/4, G3/8, and G1/2, and delivers a higher flow rate of 50 dm³/s (106 SCFM). Both series incorporate a balanced valve design that minimizes the impact of inlet pressure fluctuations on outlet pressure, thereby providing stable and reliable regulation.
These units are equipped with filter elements made from sintered polypropylene, available in 5 µm or 40 µm ratings, and come with either manual or automatic drain options. This flexibility makes them suitable for a broad spectrum of industrial applications.
Additional features include a push-to-lock adjustment knob safeguarded by a tamper-resistant cover, a quick-release bayonet bowl that facilitates straightforward maintenance, and full flow gauge ports enabling pressure monitoring without limiting airflow. The transparent polycarbonate bowls offer 360° visibility of condensate levels, while durable zinc and aluminium body options ensure longevity in demanding operational environments.
Features:
Integrated Filter and Regulator
This unit combines particulate filtration and pressure regulation into one compact device, effectively saving valuable installation space.
Excelon Modular System
Designed for flexible installation, the Excelon system supports both in-line and modular setups. It easily connects with other Excelon air preparation products via Quickclamp connections.
Filtration Options
The filter is available with two filtration grades, featuring 5 µm or 40 µm sintered polypropylene elements to efficiently remove contaminants from the airflow.
Drain Configurations
Users can opt for either a manual 1/4-turn drain or an automatic drain setup, offering convenience and adaptability based on application needs.
Transparent Polycarbonate Bowls
The transparent polycarbonate construction provides a full 360° view of condensate levels, facilitating easy and quick monitoring.
Adjustment and Safety Features
The push-to-lock adjustment knob prevents accidental changes in pressure settings, and an optional tamper-resistant cover enhances security.
Relieving and Balanced Valve Design
The relieving design enables downstream pressure reduction when the system is dead-ended, while the balanced valve design minimizes the impact of inlet pressure fluctuations, ensuring stable regulation.
Gauge Ports and Maintenance
Equipped with full flow 1/8" gauge ports, the unit allows pressure monitoring without restricting airflow. Additionally, its quick-release bayonet bowl facilitates fast removal for element replacement and maintenance without the need for tools.
Performance Specifications
The B72G model offers a high flow capacity of 38 dm³/s (80 SCFM), while the B73G provides 50 dm³/s (106 SCFM). The outlet pressure can be adjusted within a wide range of 0.3 to 10 bar.
Pressure and Temperature Ratings
The maximum inlet pressure rating is 10 bar for transparent bowls and 17 bar for metal bowls. Operating temperature ranges are from -34°C to +50°C for polycarbonate bowls and -20°C to +65°C for metal bowls.
Technical Parameters:
| Media |
Compressed Air |
| Drain Types |
Manual, Automatic, Semi-Automatic |
| Filter Element Material |
Sintered Polypropylene |
| Outlet Pressure Adjustment |
0.3–10 Bar |
| Body Material |
Zinc / Aluminium, Zinc Alloy |
| Port Sizes |
G1/4, G3/8, G1/2 |
Applications:
Industrial Automation
Providing clean and well-regulated air supply is essential for the smooth operation of pneumatic actuators, valves, and cylinders used in industrial automation systems.
Packaging Machinery
Ensuring protection and maintaining precise pressure control is crucial for pneumatic components deployed in packaging and filling equipment.
Material Handling
Proper air preparation is required for various material handling applications, including conveyors, pick-and-place units, and handling systems, to guarantee efficient performance.
Compressed Air Distribution
Filtration and regulation at the point of use are vital to deliver clean, controlled air to pneumatic tools and equipment, enhancing reliability and longevity.
General Pneumatic Systems
Removing contaminants and controlling pressure within manufacturing facilities help maintain optimal function and reduce downtime in general pneumatic systems.
Textile Machinery
Effective air filtration and regulation play a key role in the pneumatic controls that support textile production processes.
Automotive Manufacturing
Air preparation is critical in automotive manufacturing environments, including paint shops, assembly lines, and testing equipment, to ensure high-quality operations.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please refer to the detailed product manual included with your FRL unit, which covers installation guidelines, maintenance procedures, and troubleshooting tips.
Regular maintenance is essential to keep your FRL functioning efficiently. This includes periodic cleaning of the filter element, checking and adjusting the regulator pressure settings, and refilling the lubricator with the recommended pneumatic oil. Always use genuine replacement parts to maintain product integrity and warranty coverage.
If you encounter any issues with your FRL unit, verify that the air supply meets the specified requirements and that all connections are secure. Common problems such as pressure drops, air leaks, or insufficient lubrication can often be resolved by following the troubleshooting section in the manual.
For advanced technical support and service inquiries, our team of experts is available to assist with product selection, system integration, and custom solutions tailored to your specific application needs. We also offer training sessions and on-site inspections to ensure your pneumatic systems operate at peak efficiency.
Ensure safety by always depressurizing the system before performing any maintenance or service on the FRL unit. Adhering to recommended safety practices protects both personnel and equipment.
