Product Description:

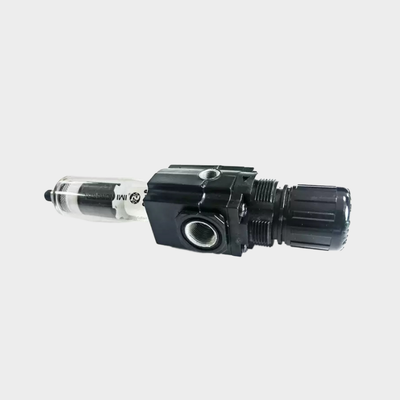

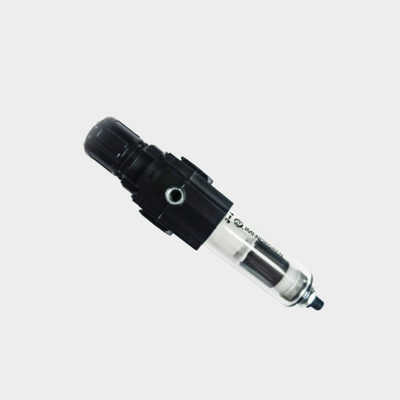

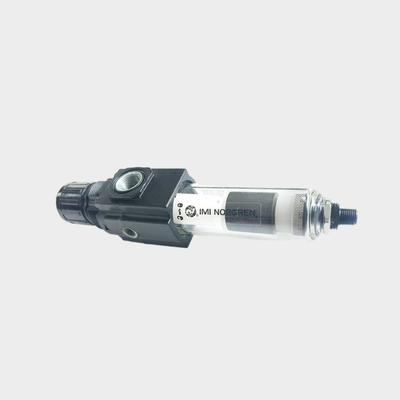

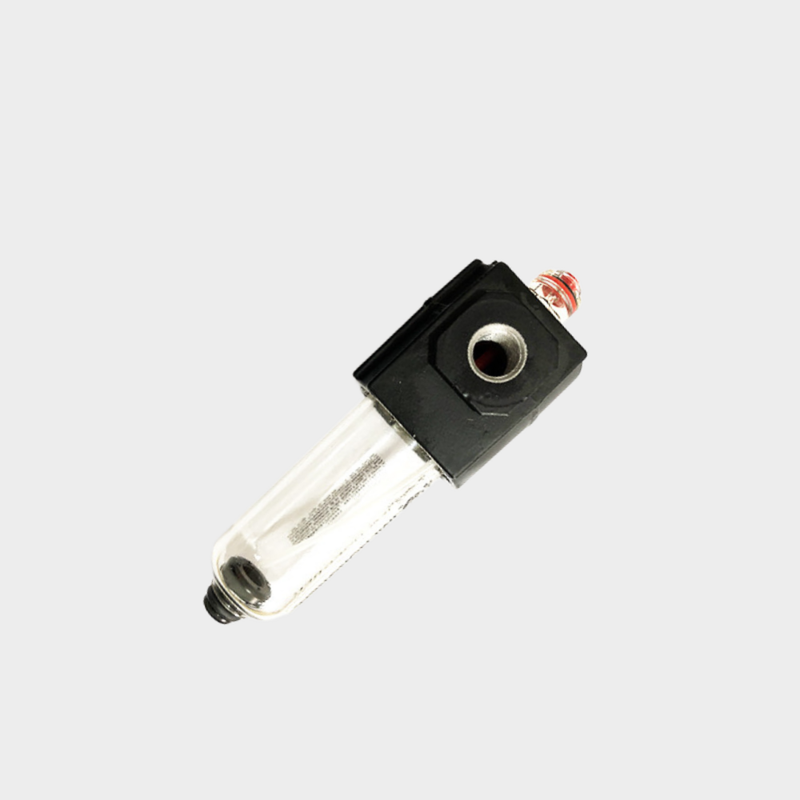

The Norgren B72G and B73G series represent high-performance filter regulators within the Excelon modular air preparation system. These integrated devices combine both filtration and pressure regulation functionalities into a single, compact unit. They effectively remove water and solid contaminants from compressed air lines while ensuring accurate control of downstream pressure.
Designed with versatility in mind, the Excelon system supports both in-line and modular installations. The use of Quickclamp connections allows these units to easily connect with other Excelon components, facilitating straightforward system expansion and simplified maintenance procedures.
The B72G series is equipped with G1/4 and G3/8 port options and provides a flow rate of 38 dm³/s (80 SCFM). In contrast, the B73G series offers a broader selection of ports including G1/4, G3/8, and G1/2, alongside a higher flow capacity of 50 dm³/s (106 SCFM). Both series incorporate a balanced valve design that minimizes the impact of inlet pressure fluctuations on outlet pressure, thereby delivering stable and reliable regulation.
These filter regulators are available with sintered polypropylene filter elements rated at either 5 µm or 40 µm and come with manual or automatic drain options. This range of configurations ensures adaptability to meet diverse industrial requirements.
Additional features include a push-to-lock adjustment knob safeguarded by a tamper-resistant cover, and a quick-release bayonet bowl which simplifies maintenance tasks. Full flow gauge ports are integrated to allow pressure monitoring without restricting airflow. The transparent polycarbonate bowls provide clear 360° visibility of condensate levels, while robust zinc and aluminium body constructions guarantee durability even in demanding operating environments.
Features:
Integrated Filter and Regulator
This compact unit combines particulate filtration and pressure regulation, effectively saving valuable installation space.
Excelon Modular System
The system supports both in-line and modular installations alongside other Excelon air preparation products, utilizing Quickclamp connections for ease of setup.
Filtration Options
Available with two filtration grades, the unit can be equipped with 5 µm or 40 µm sintered polypropylene filter elements to efficiently remove contaminants.
Drain Configurations
Users can select between a manual 1/4-turn drain or an automatic drain, providing flexibility based on maintenance preferences.
Transparent Polycarbonate Bowls
The bowls offer 360-degree visibility of condensate levels, enabling easy and continuous monitoring.
Adjustment and Design Features
A push-to-lock adjustment knob prevents accidental changes in pressure, and an optional tamper-resistant cover enhances security. The relieving design allows for downstream pressure reduction when the system is dead-ended, while the balanced valve design minimizes the impact of inlet pressure variations to maintain stable outlet pressure.
Gauge Ports and Maintenance
Full flow 1/8 inch gauge ports enable accurate pressure monitoring without restricting airflow. The quick-release bayonet bowl facilitates fast removal for element replacement and maintenance, eliminating the need for tools.
Performance Specifications
The unit offers high flow capacities with the B72G model supporting 38 dm³/s (80 SCFM) and the B73G reaching 50 dm³/s (106 SCFM). It features a wide pressure adjustment range from 0.3 to 10 bar outlet pressure and supports maximum inlet pressures of 10 bar for transparent bowls and 17 bar for metal bowls.
Operating Temperature Range
The unit operates efficiently within a temperature range of -34°C to +50°C when using polycarbonate bowls and from -20°C to +65°C with metal bowls.
Technical Parameters:
| Outlet Pressure Adjustment |
0.3–10 Bar |
| Port Sizes |
G1/4, G3/8, G1/2 |
| Filter Element Material |
Sintered Polypropylene |
| Body Material |
Zinc / Aluminium, Zinc Alloy |
| Media |
Compressed Air |
| Drain Types |
Manual, Automatic, Semi-Automatic |
This Pneumatic Filter Regulator Lubricator serves as a reliable pressure reducing air source processor and pressure reducer, commonly used in FESTO air source treatment units to ensure optimal compressed air quality and pressure control.
Applications:
Industrial Automation
In the field of industrial automation, a clean and regulated air supply is essential for the optimal operation of pneumatic actuators, valves, and cylinders. Ensuring the air is free from contaminants helps maintain equipment efficiency and prolongs its lifespan.
Packaging Machinery
Packaging machinery relies on precise protection and pressure control of pneumatic components. This is particularly important in packaging and filling equipment to guarantee consistent performance and reliable operation.
Material Handling
Air preparation plays a crucial role in material handling systems, including conveyors and pick-and-place units. Proper filtration and regulation ensure smooth functioning of these handling mechanisms.
Compressed Air Distribution
At various points of use, filtration and regulation of compressed air are vital for powering tools and equipment effectively. This localized control helps maintain air quality and pressure at the precise requirements of different applications.
General Pneumatic Systems
In manufacturing facilities, general pneumatic systems benefit from the removal of air contaminants and accurate pressure regulation. This leads to improved reliability and reduced downtime of machinery.
Textile Machinery
Textile production utilizes pneumatic controls that demand clean and regulated air supply. Proper air filtration and pressure control enable efficient operation of textile machinery.
Automotive Manufacturing
Air preparation is critical in automotive manufacturing environments, especially in paint shops, assembly lines, and testing equipment. Maintaining appropriate air quality and pressure ensures high-quality production and consistent results.
Support and Services:
Our Pneumatic Filter Regulator Lubricator units are designed to ensure optimal performance and longevity of your pneumatic systems. For technical support, please refer to the product manual for installation guidelines, maintenance procedures, and troubleshooting tips.
Regular maintenance includes checking and draining the filter bowl to remove accumulated moisture and contaminants, adjusting the regulator to maintain the desired pressure, and ensuring the lubricator is properly filled with the recommended oil type. Avoid using incompatible lubricants to prevent damage to internal components.
If you experience any issues such as pressure fluctuations, air leaks, or inadequate lubrication, inspect the unit for blockages, worn seals, or damaged parts. Replacement components are available to restore full functionality.
For optimal service life, operate the unit within the specified pressure and temperature ranges, and ensure all connections are secure. Properly sized units should be selected based on your system’s flow requirements.
Our technical support team is available to assist with product selection, installation advice, and troubleshooting to help you achieve reliable and efficient pneumatic system operation.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, protective box designed to prevent damage during transit. Each unit is wrapped in anti-static foam and sealed in a plastic bag to protect against dust and moisture. The packaging includes clear labeling with product specifications, handling instructions, and a user manual to ensure safe and easy installation.
Shipping: We offer reliable shipping options to deliver the Pneumatic Filter Regulator Lubricator promptly and safely to your location. Products are shipped via trusted carriers with tracking available for all orders. Standard shipping includes protective packaging to withstand handling and environmental conditions. Expedited shipping options are also available for urgent needs. International shipping is supported with necessary customs documentation provided.
