Product Description:

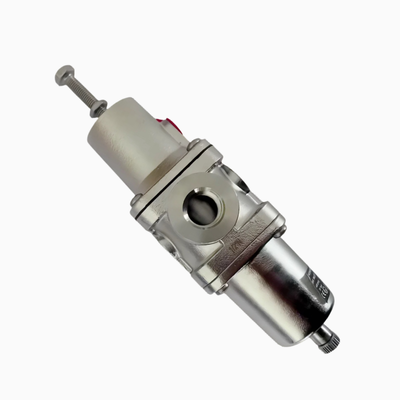

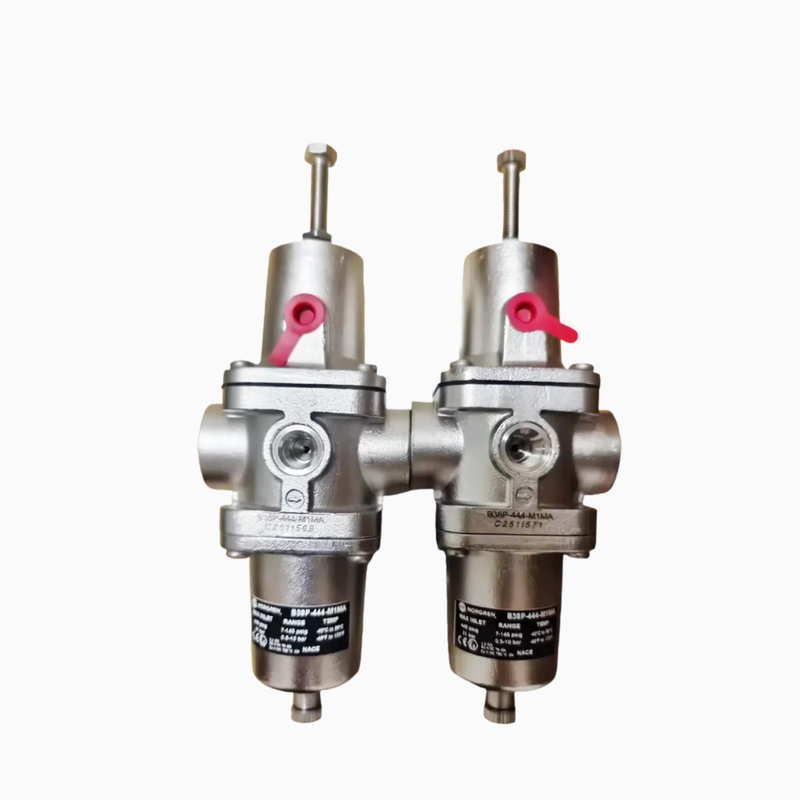

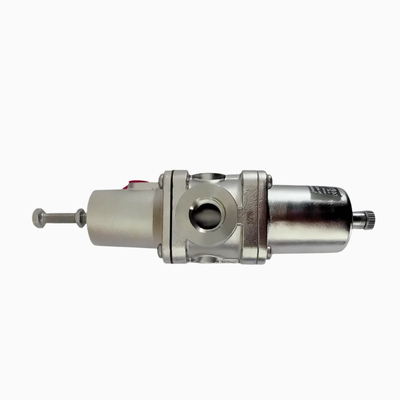

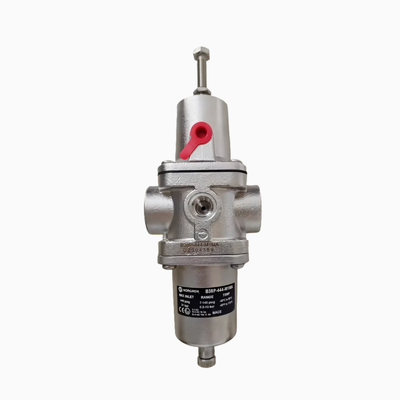

The Norgren B38P series is a range of high flow stainless steel filter regulators designed for use in corrosive environments, combining filtration and precision pressure regulation in a single integrated unit. These filter regulators are specifically engineered for applications where standard materials are not suitable, including marine environments, oil and gas production, chemical and food processing, and medical analysis equipment. The metallic parts meet NACE Standard MR-01-75, the recognised oil-field recommendation for resistance to sulphide stress cracking common in well-head and other corrosive environments.
The B38P series features a 316 stainless steel body, bowl, bonnet, and adjusting screw, providing excellent resistance to salt spray, acids, alkalis, and petrochemical corrosion. The filter regulator operates with a maximum inlet pressure of 31 bar (449 psi) for manual drain versions and 17 bar (246 psi) for automatic drain versions, with an outlet pressure range of 0.5 to 10 bar or 0.5 to 7 bar depending on the selected model. The integrated 5 µm, 25 µm, or 40 µm filter element removes solid particles and condensate from the compressed air supply, protecting downstream equipment and ensuring reliable operation.
The B38P-244-B1MA model features 1/4" ports with a flow rate of 40 dm³/s, while the B38P-344-B1MA features 3/8" ports with the same flow rate. Both models include manual drain and relieving design, with a panel mounting nut for convenient installation. The FKM (FPM) or NBR elastomer options allow for operating temperature ranges of -20°C to +80°C (FKM) or -40°C to +80°C (NBR), making these units suitable for demanding industrial and offshore environments.
The filter regulator is also available with ATEX certification for use in hazardous areas, and the design meets certain requirements of Heavy‑Duty Specifications MIL-S-901C (Navy) for shock resistance and MIL-STD-167-1 for mechanical vibrations of shipboard equipment.
Features:
-
316 Stainless Steel Construction – Body, bowl, bonnet, filter element, and adjusting screw are all made from 316 stainless steel for maximum corrosion resistance in aggressive environments
-
NACE MR-01-75 Compliant – Metallic parts meet the NACE standard for resistance to sulphide stress cracking in well-head and other corrosive oil-field environments
-
Integrated Filtration and Regulation – Combines a high-efficiency filter element with a precision pressure regulator in a single compact unit, saving installation space
-
High Flow Capacity – Delivers 40 dm³/s for 1/4" and 3/8" port sizes, with larger port sizes available for higher flow requirements up to 100 dm³/s
-
Three Filtration Grades – Available with 5 µm, 25 µm, or 40 µm filter elements to suit different air quality requirements
-
Relieving Design – Allows downstream pressure reduction when the system is dead-ended, providing safe and controlled pressure release
-
Manual Drain – Short bowl with manual drain for easy condensate removal
-
Panel Mounting Nut Included – Facilitates secure panel mounting for convenient installation and maintenance access
-
Maximum Inlet Pressure – 31 bar (449 psi) for manual drain versions; 17 bar (246 psi) for automatic drain versions
-
Outlet Pressure Range – 0.5 to 10 bar (7 to 145 psi) or 0.5 to 7 bar (7 to 101 psi) depending on model
-
Wide Temperature Range – -20°C to +80°C with FKM seals; -40°C to +80°C with NBR seals
-
ATEX Certified Options – Available for hazardous area applications requiring explosion protection
-
Heavy‑Duty Specification Compliance – Meets certain requirements of MIL-S-901C (Navy) shock test and MIL-STD-167-1 for shipboard equipment vibrations
Technical Parameters:
| Drain Types |
Manual |
|
Elastomers
|
FKM (FPM) or NBR
|
| Port Sizes |
G1/4, G3/8 |
| Pressure |
0.5–10 Bar |
| Series |
B38P |
| Body Material |
316 Stainless Steel |
Applications:
-
Marine and Offshore – Corrosion-resistant air preparation for ships, offshore platforms, and marine environments
-
Oil and Gas Production – NACE-compliant filtration and regulation for well-head and petrochemical applications
-
Chemical Processing – Reliable air supply for instrumentation and pneumatic controls in corrosive chemical environments
-
Food and Beverage Processing – Clean, regulated air for packaging and processing equipment (with appropriate filtration)
-
Medical Analysis Equipment – Precision air regulation for analytical and diagnostic instruments
-
Precision Fluid Control – High-accuracy pressure regulation for sensitive pneumatic systems
-
General Industrial Automation – Corrosive-environment air preparation where standard brass or aluminium units are not suitable
Customization:
Norgren offers comprehensive product customization services for the Pneumatic Filter Regulator Lubricator, model number B74G-4GK-AP3-RMN. Manufactured in CHINA and certified with CE, this product is designed to meet diverse industrial needs with high quality and reliability.
As part of the B74G series, the body material is crafted from durable aluminium alloy, ensuring long-lasting performance. Customers can choose from port sizes G1/2 and G3/4 to fit various system requirements. The elastomers used include Chloroprene Rubber (CR) and Nitrile Rubber (NBR), providing excellent sealing and compatibility with different media.
Drain types are customizable, with options for manual or automatic drainage to suit specific operational preferences. Packaging is flexible, delivered in cartons or as per client requirements to ensure product safety and convenience during shipping.
With a supply ability of 5000 pieces per month, Norgren guarantees prompt delivery within 1-7 work days after payment. Payment terms are negotiable and include T/T, Western Union, and Paypal for customer convenience. The minimum order quantity is 1 unit, and pricing is open for negotiation to accommodate various budget needs.
This product is ideal for applications involving FESTO oil mist filter systems and FESTO air source treatment units, providing reliable filtration, regulation, and lubrication to enhance pneumatic system efficiency and longevity.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure the optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air flow. To maintain peak efficiency, regular maintenance and proper installation are essential.
For technical support, please refer to the product manual for detailed instructions on installation, operation, and troubleshooting. Ensure that the FRL is installed in the correct orientation and that all connections are secure to prevent air leaks.
Periodic maintenance should include draining accumulated water and contaminants from the filter bowl, checking and adjusting the regulator pressure settings, and refilling the lubricator with the appropriate pneumatic oil. Use only manufacturer-recommended lubricants to avoid damage to internal components.
If you experience issues such as irregular pressure, air leakage, or lubrication failure, inspect the unit for clogged filters, worn seals, or damaged parts. Replacement components should be genuine parts supplied by the manufacturer to maintain product integrity.
For further assistance, technical documentation, or service requests, consult your authorized distributor or service center. Our support team is committed to providing timely and effective solutions to ensure your pneumatic systems operate smoothly and reliably.
