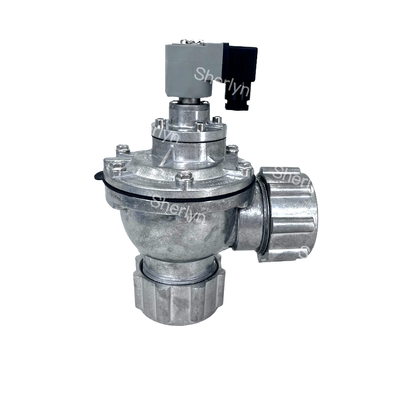

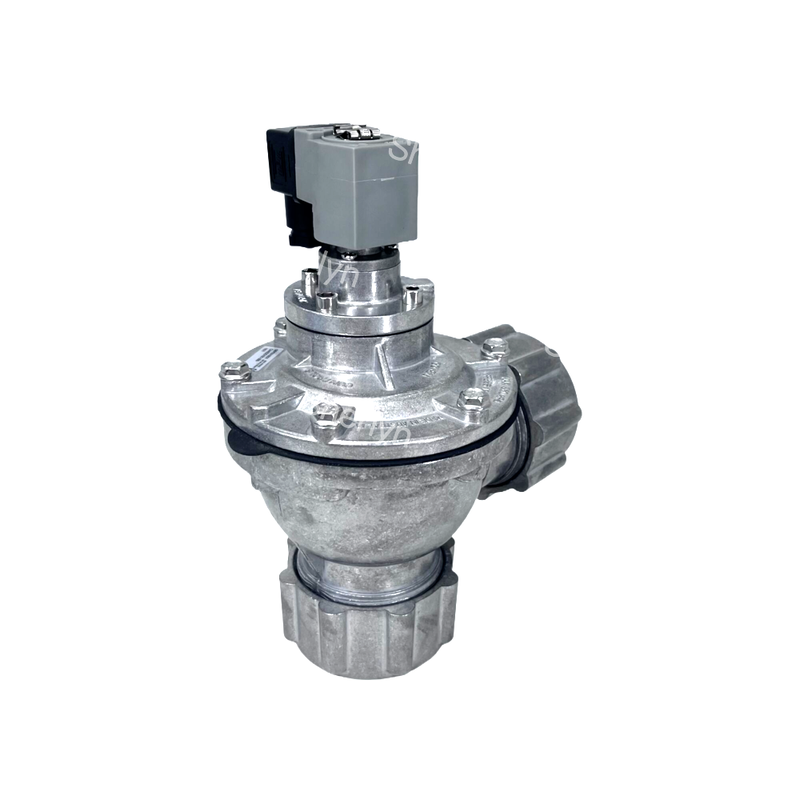

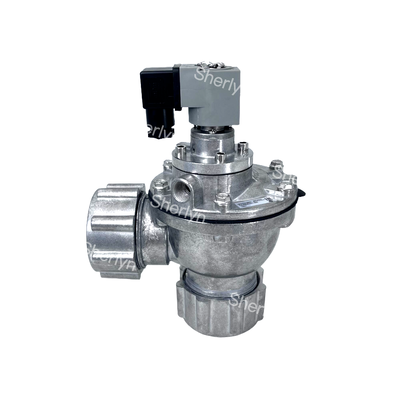

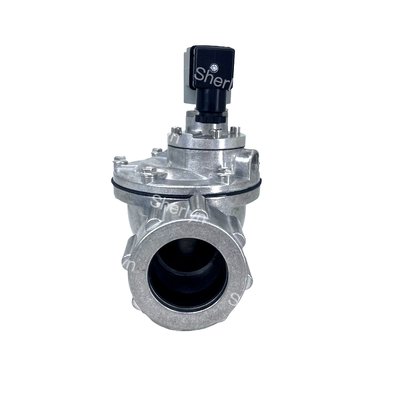

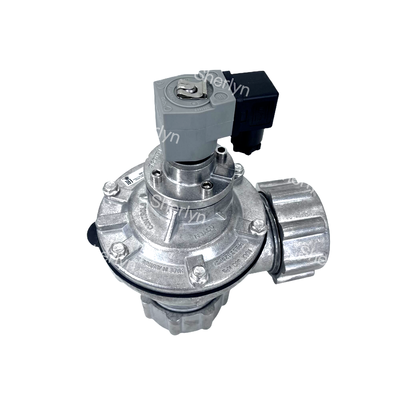

Pulse Valve CA45DD RCA45DD 1.5 Inch Locking Nut Electromagnetic Pulse Valve RCAC45T010-305

Product Description:

The Goyen DD series represents a high-performance diaphragm pulse jet valve featuring a dresser nut connection structure. Its design includes a 90° right angle inlet and outlet, allowing for efficient flow direction. This valve can be equipped with either an integral pilot solenoid or remote pilot control, providing flexibility in operation. As a classic dresser nut type pulse valve, the DD series is extensively utilized in reverse pulse jet dust cleaning systems, particularly in dust collectors and baghouses.

On the other hand, the Goyen FS series is a high-performance diaphragm pulse jet valve with a flanged inlet. It incorporates a flange connection at the inlet and a slide-seal outlet port, also featuring a 90° right angle flow channel. This series employs a weldless flange design, making it especially suitable for assemblies involving square air tanks. Similar to the DD series, the FS series supports both integral pilot and remote pilot controls. However, compared to the DD series, the FS series is distinguished by a larger inlet diameter and enhanced flow performance.

Features:

The dresser nut features a quick connection design that allows for easy installation, disassembly, and maintenance directly on site, without the need for welding. This simplifies the process and reduces downtime.

Its body is made from high-pressure die-cast aluminum, providing durability and strength. For environments with corrosive conditions, there is an optional version constructed from 316 stainless steel, ensuring long-lasting performance.

The product is equipped with diaphragm seals available in two materials: Nitrile and Viton. The Nitrile seals are suitable for temperatures ranging from -40℃ to 82℃, while the Viton seals can withstand a wider temperature range, from -29℃ up to 232℃. This makes the product adaptable to both low and high temperature operating environments.

Overall, the high-pressure die-cast aluminum body or the optional 316 stainless steel construction offers reliable protection against corrosive media, making it versatile for various industrial applications.

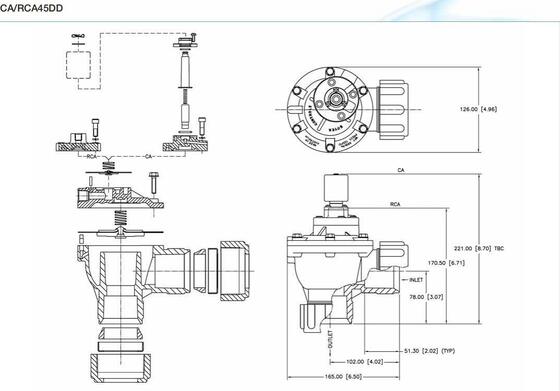

Technical Parameters:

Applications:

Reverse pulse jet technology is utilized for cleaning various types of filters, including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters. This method ensures efficient and thorough removal of dust and contaminants from the filter surfaces, maintaining optimal filtration performance.

This cleaning system is particularly well-suited for square tank dust collector setups. Its design allows for effective dust control in a variety of industrial environments, making it a versatile choice for many applications.

The reverse pulse jet filter cleaning method is widely used across multiple industries such as cement manufacturing, chemical processing, mining operations, food production, power generation, metallurgy, waste incineration, and other projects focused on controlling industrial dust emissions. Its reliability and efficiency contribute significantly to maintaining clean air standards and environmental compliance.

Support and Services:

Our Pulse Jet Valves are designed to provide reliable and efficient operation in dust collector systems. For technical support, please ensure you have the model number and specifications of your valve ready when seeking assistance. Our support team can guide you through installation procedures, troubleshooting tips, and maintenance best practices to maximize the performance and lifespan of your pulse jet valve.

We offer a range of services including valve inspection, repair, and replacement parts supply. Regular maintenance is recommended to prevent wear and ensure optimal functionality. Detailed manuals and technical documentation are available to help you understand the operation and servicing of the valves.

If you encounter any issues with your Pulse Jet Valve, please refer to the troubleshooting section in the product manual. Common issues include air leakage, diaphragm failure, or improper valve actuation. Our technical specialists can assist with diagnosing problems and recommending corrective actions.

We also provide training sessions and on-site support to help your team effectively manage and maintain your pulse jet valve systems. Our goal is to ensure your equipment operates smoothly, reducing downtime and improving system efficiency.

Packing and Shipping:

Our Pulse Jet Valves are carefully packaged to ensure maximum protection during transit. Each valve is securely placed in a custom-fitted foam insert within a sturdy corrugated box to prevent movement and damage. The packaging materials are chosen to withstand handling and environmental conditions, maintaining product integrity until it reaches the customer.

For shipping, we offer multiple options including standard ground, expedited, and freight services depending on order size and destination. All shipments are tracked and insured to guarantee safe and timely delivery. We also provide clear labeling and documentation with each package to facilitate smooth customs clearance and handling.

Whether shipping domestically or internationally, our dedicated logistics team ensures that Pulse Jet Valves arrive in excellent condition, ready for immediate installation and use.
