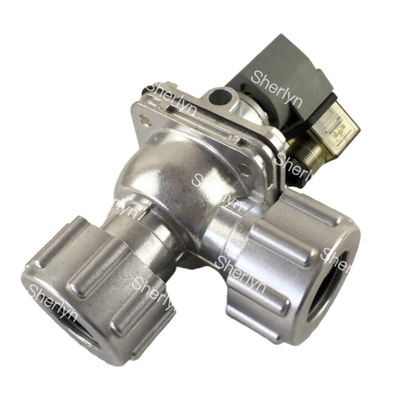

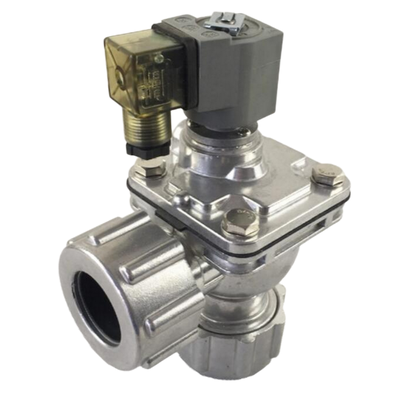

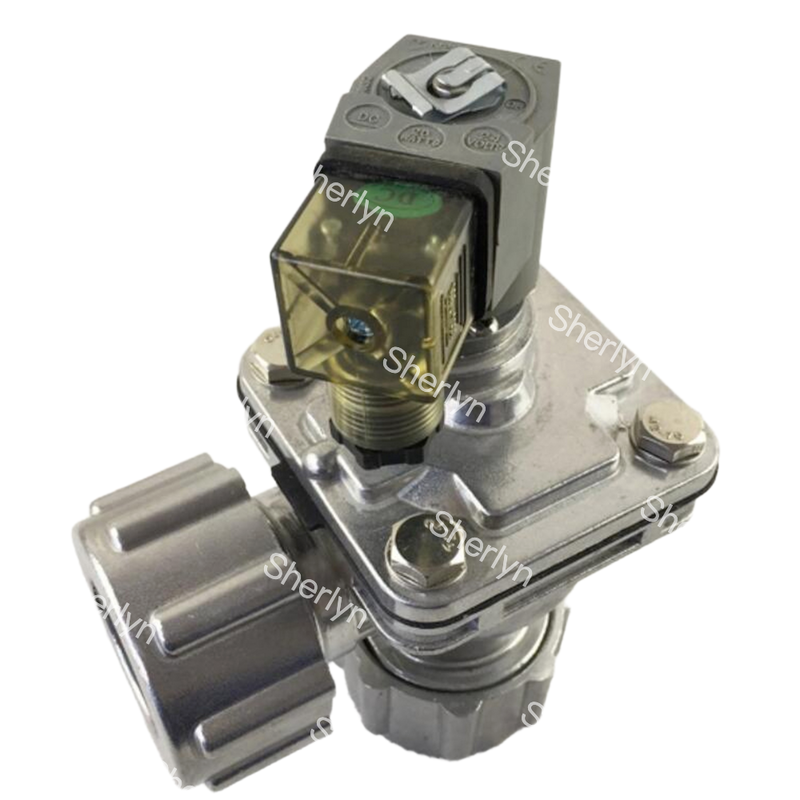

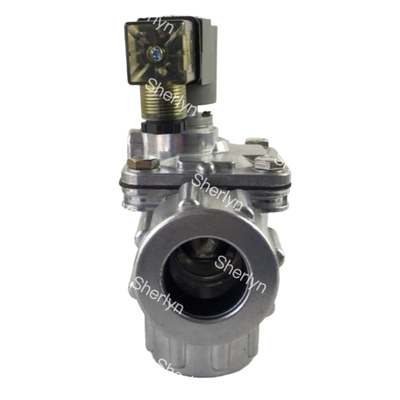

GOYEN CA25DD 1-inch Right Angle Nut Pulse Valve K2501 K2503

Product Description:

The Goyen DD series represents a high-performance diaphragm pulse jet valve characterized by its dresser nut connection structure and a 90° right angle design for both the inlet and outlet. This valve can be equipped with either an integral pilot solenoid or a remote pilot control, providing flexibility in its operation. As a classic example of a dresser nut type pulse valve, the DD series is extensively utilized in reverse pulse jet dust cleaning systems, commonly found in dust collectors and baghouses.

On the other hand, the Goyen FS series is a high-performance diaphragm pulse jet valve featuring a flanged inlet connection and a slide-seal outlet port, also designed with a 90° right angle flow channel. Its weldless flange construction makes it particularly well-suited for assembly with square air tanks. Similar to the DD series, the FS series supports both integral and remote pilot control options. However, the FS series is distinguished by a larger inlet diameter and enhanced flow performance compared to the DD series, making it ideal for applications requiring greater airflow capacity.

Features:

The dresser nut features a quick connection design, allowing for easy installation, disassembly, and maintenance directly on-site without the need for welding. This convenient structure significantly reduces downtime and simplifies the handling process.

Constructed from high-pressure die-cast aluminum, the body offers strong durability and reliability. For environments with corrosive conditions, there is an optional version made from 316 stainless steel, ensuring enhanced resistance and longer service life.

This product is available with diaphragm seals made from either Nitrile or Viton materials. The Nitrile seals can operate efficiently within a temperature range of -40℃ to 82℃, while Viton seals are suitable for higher temperatures, ranging from -29℃ to 232℃. These options allow the product to adapt well to both low and high temperature working environments.

In summary, the high-pressure die-cast aluminum body provides robustness, and the optional 316 stainless steel variant is ideal for handling corrosive media, making this dresser nut connection structure versatile and reliable in various industrial applications.

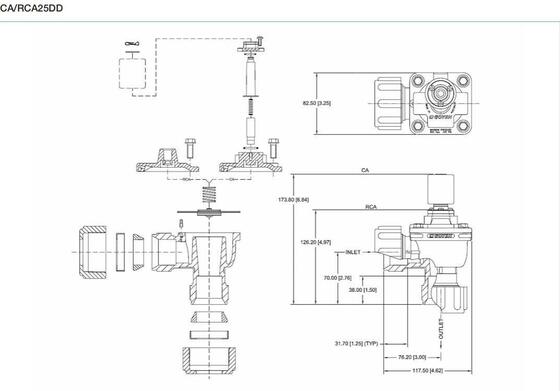

Technical Parameters:

Applications:

The reverse pulse jet cleaning method is highly effective for various types of filters, including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters. This technique ensures thorough cleaning by utilizing a powerful reverse airflow to dislodge accumulated dust and particles.

This cleaning system is particularly suitable for square tank dust collector systems, providing efficient maintenance and prolonging the lifespan of the filtration equipment. Its design is optimized to handle the unique requirements of these configurations.

Widely applied across multiple industries, the reverse pulse jet filter cleaning is commonly used in sectors such as cement manufacturing, chemical processing, mining operations, food processing plants, power generation facilities, metallurgy, waste incineration, and various industrial dust emission control projects. Its versatility and effectiveness make it an essential component in maintaining air quality and operational efficiency.

Support and Services:

Our Pulse Jet Valves are designed to provide reliable and efficient performance in dust collector systems. For technical support, please ensure you have the model number, specifications, and operating conditions of your valve ready. Our support team can assist with installation guidance, troubleshooting, maintenance tips, and replacement parts information to ensure optimal operation of your pulse jet valve.

We offer comprehensive services including valve inspection, repair, and testing to extend the life of your equipment. Routine maintenance is recommended to prevent common issues such as diaphragm wear, air leakage, and valve sticking. Detailed manuals and instructional materials are available to help you understand the correct procedures for installation and upkeep.

In addition, we provide training sessions for your maintenance personnel to enhance their knowledge and skills in handling pulse jet valves. Our goal is to minimize downtime and maximize the efficiency of your dust collection system through expert support and high-quality service offerings.

Packing and Shipping:

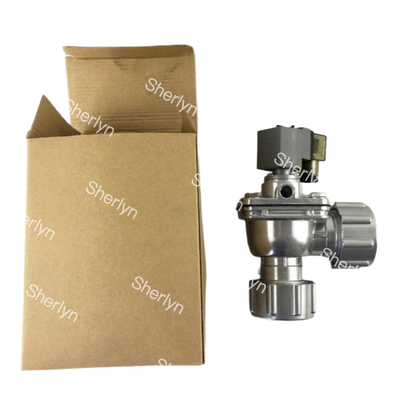

Our Pulse Jet Valves are carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in protective material and placed in a sturdy, custom-designed box to prevent damage from shocks and vibrations. The packaging also includes detailed instructions and necessary accessories to facilitate easy installation and maintenance.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. We offer various shipping methods to meet your needs, including standard, expedited, and freight shipping. All shipments are handled with care, and we provide full support until the product reaches your facility.
