RCAC20DD4 GOYEN Type 4th Generation Pulse Jet Valve RCAC20DD4012 RCAC20DD4002

Product Description:

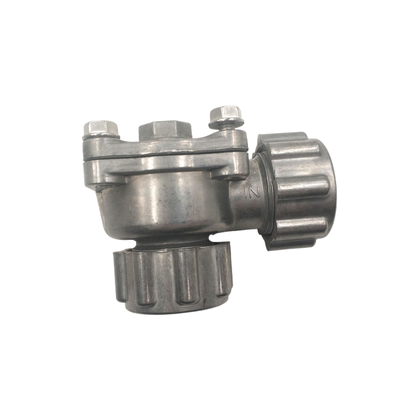

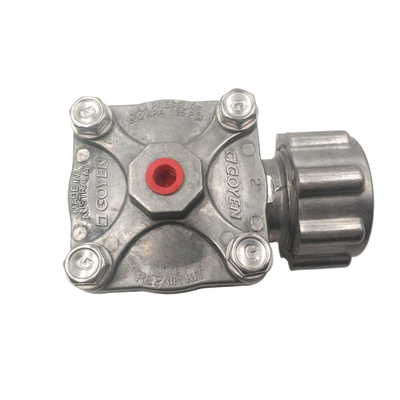

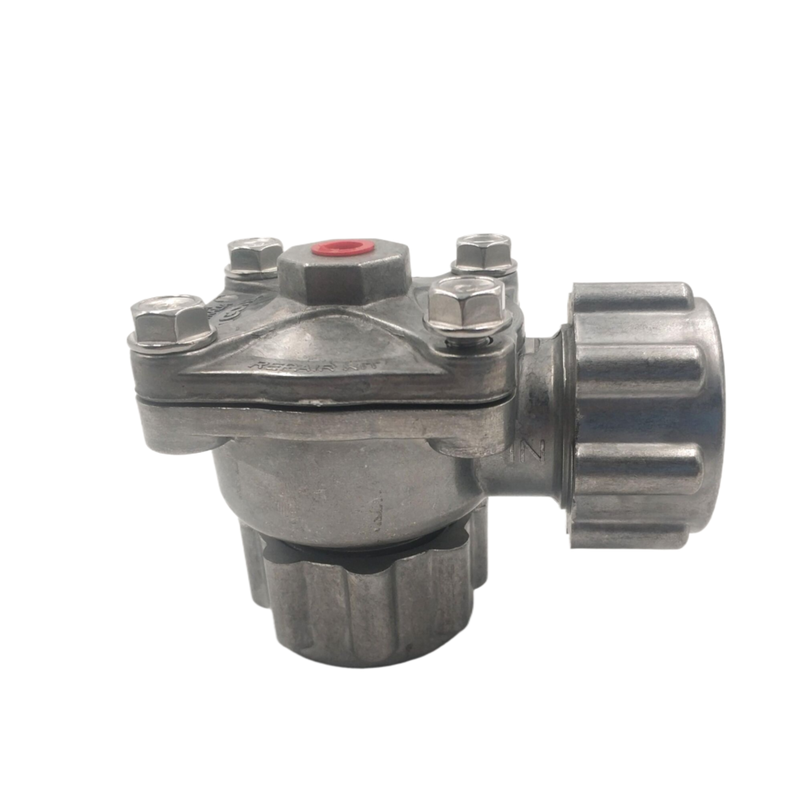

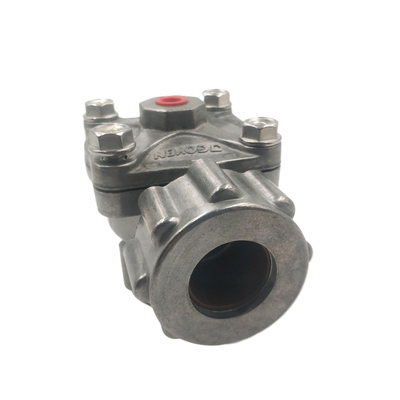

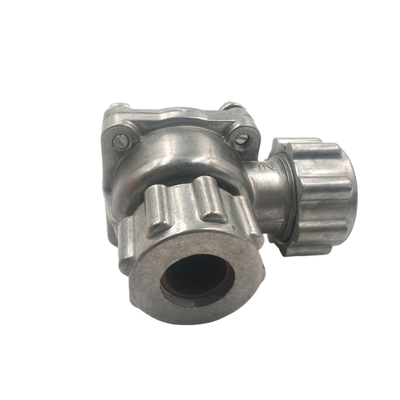

The Goyen DD series represents a high-performance diaphragm pulse jet valve featuring a dresser nut connection design. It incorporates a 90° right angle inlet and outlet configuration, allowing efficient flow control. This valve can be equipped with either an integral pilot solenoid or a remote pilot control, providing flexibility in operation.

As a classic dresser nut type pulse valve, the DD series is extensively utilized in reverse pulse jet dust cleaning systems. Its primary applications include dust collectors and baghouses, where reliable and effective dust removal is critical.

On the other hand, the Goyen FS series is a high-performance diaphragm pulse jet valve distinguished by its flanged inlet. It features a flange connection at the inlet and a slide-seal outlet port, maintaining a 90° right angle flow channel. The weldless flange design makes it especially suitable for integration with square air tanks.

Like the DD series, the FS series also supports both integral pilot and remote pilot control options. Compared to the DD series, it offers a larger inlet diameter and enhanced flow performance, catering to applications that require greater capacity and efficiency.

Features:

The dresser nut features a quick connection design, allowing for straightforward on-site installation, as well as easy disassembly and maintenance without the need for welding. This design greatly simplifies the overall process and reduces downtime.

Constructed from high-pressure die-cast aluminum, the body provides excellent durability and strength. For environments involving corrosive media, an optional 316 stainless steel version is available to ensure long-lasting performance and resistance to corrosion.

This product is compatible with diaphragm seals made from either Nitrile or Viton materials. The Nitrile diaphragm seal can operate effectively within a temperature range of -40℃ to 82℃, while the Viton diaphragm seal supports a broader temperature range from -29℃ to 232℃, making it suitable for both low and high temperature working environments.

Overall, the high-pressure die-cast aluminum body combined with the option for a 316 stainless steel body makes this product adaptable to various challenging working conditions, providing reliable and flexible solutions for different industrial applications.

Technical Parameters:

Applications:

Reverse pulse jet cleaning is an effective method used for maintaining the performance of various types of filters, including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters. This cleaning technique ensures that these filters remain efficient by removing accumulated dust and particles.

This cleaning technology is particularly well-suited for square tank dust collector systems. Its design and operation make it an ideal choice for applications that require reliable and consistent dust removal to maintain air quality and system efficiency.

Industries such as cement manufacturing, chemical processing, mining, food production, power generation, metallurgy, waste incineration, and other industrial dust emission control projects widely utilize reverse pulse jet filter cleaning. Its versatility and effectiveness make it a preferred solution for managing airborne dust in various demanding environments.

Support and Services:

Our Pulse Jet Valves are designed for reliable and efficient operation in dust collector systems and industrial filtration applications. For technical support, please ensure that you have the valve model number, serial number, and any relevant system information available to facilitate prompt assistance.

Installation support includes guidance on proper mounting orientation, pneumatic connections, and electrical wiring to ensure optimal valve performance. We recommend following the installation instructions provided in the product manual to avoid operational issues.

For maintenance, regular inspection of valve diaphragms, seals, and solenoids is advised to maintain effective pulse cleaning cycles. Replacement parts are available to ensure long-term reliability.

Our technical team can assist with troubleshooting common issues such as valve sticking, air leakage, or inconsistent pulse timing. Diagnostic procedures and corrective actions are outlined in the product documentation.

We also offer training and on-site service options to help optimize your pulse jet valve system performance and minimize downtime.

Please refer to the product manual for detailed specifications, operating parameters, and safety information.

Packing and Shipping:

Our Pulse Jet Valves are carefully packaged to ensure maximum protection during transit. Each valve is securely placed in a custom-designed box with foam padding to prevent any damage from shocks or vibrations. The packaging materials are chosen to be durable, moisture-resistant, and environmentally friendly to maintain product integrity and support sustainability.

For shipping, we use reliable carriers with tracking options to ensure timely and safe delivery. Depending on the destination, valves may be shipped via air, sea, or ground transportation. All shipments include detailed documentation and handling instructions to facilitate smooth customs clearance and proper handling at every stage.

We also offer special packaging and shipping solutions upon request to accommodate unique requirements or bulk orders. Our customer service team is available to assist with any inquiries related to packaging and shipping to provide a seamless experience.
