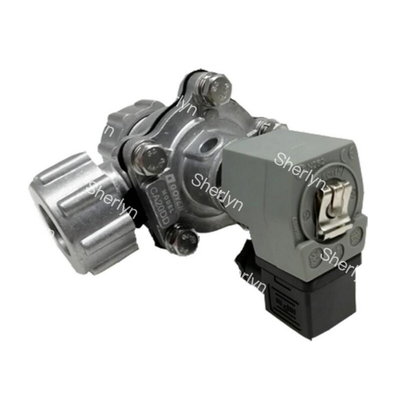

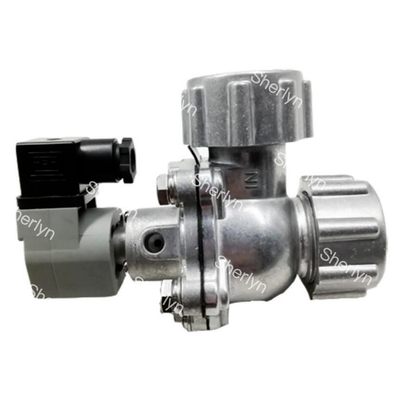

GOYEN 3/4 Inch Pulse Valve CA20DD CA20DD4 Threaded Connection Right Angle K2000 K2007

Product Description:

The Goyen DD series is a high-performance diaphragm pulse jet valve featuring a dresser nut connection structure. It is designed with a 90° right-angle inlet and outlet, allowing efficient flow control. This valve can be equipped with either an integral pilot solenoid or remote pilot control, providing versatile operation options. As a classic dresser nut type pulse valve, the DD series is extensively used in reverse pulse jet dust cleaning systems, which are essential components in dust collectors and baghouses.

On the other hand, the Goyen FS series offers a high-performance diaphragm pulse jet valve with a flanged inlet. It comes with an inlet flange connection and a slide-seal outlet port, maintaining a 90° right-angle flow channel. The FS series adopts a weldless flange design, making it particularly well-suited for square air tank assemblies. Like the DD series, it supports both integral pilot and remote pilot control. However, compared to the DD series, the FS series provides a larger inlet diameter and delivers higher flow performance, catering to applications requiring enhanced airflow capacity.

Features:

The dresser nut features a quick connection design that simplifies on-site installation, allowing for easy disassembly and maintenance. This connection method eliminates the need for welding, making it highly convenient and efficient for various applications.

Constructed from high-pressure die-cast aluminum, the body ensures durability and strength. For environments where corrosion is a concern, an optional 316 stainless steel version is available, providing enhanced resistance and longevity under harsh conditions.

This product is compatible with diaphragm seals made of either Nitrile or Viton. The Nitrile seals operate effectively within a temperature range of -40℃ to 82℃, while the Viton seals withstand temperatures from -29℃ up to 232℃. These options enable adaptability to both low and high temperature working environments.

In summary, the dresser nut's high-pressure die-cast aluminum body, with the option for a 316 stainless steel alternative, makes it suitable for use with corrosive media and diverse operational demands.

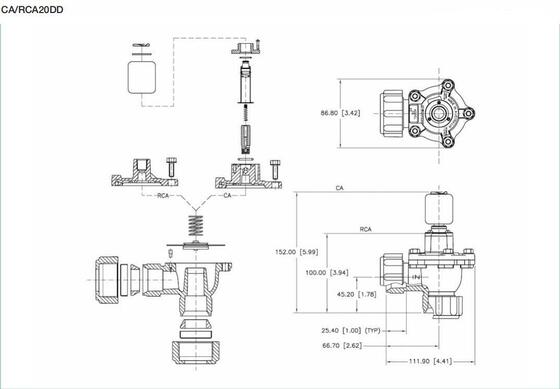

Technical Parameters:

Applications:

Reverse pulse jet filter cleaning is an effective method designed for various types of filters, including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters. This cleaning technique ensures the efficient removal of dust and particulate matter, maintaining optimal filter performance.

This technology is particularly well-suited for square tank dust collector systems, providing reliable and consistent cleaning action. Its robust design and functionality make it ideal for use in a wide range of industrial applications.

Industries such as cement manufacturing, chemical processing, mining, food production, power generation, metallurgy, waste incineration, and other industrial dust emission control projects benefit greatly from the implementation of reverse pulse jet filter cleaning. It plays a crucial role in enhancing air quality and maintaining regulatory compliance across these sectors.

Support and Services:

Our Pulse Jet Valves are designed for reliable and efficient operation in dust collector systems. For technical support, please ensure you have the model number, serial number, and operating conditions available when seeking assistance. Our support team can help with installation guidance, troubleshooting, maintenance tips, and replacement parts identification. Regular maintenance is recommended to ensure optimal performance, including checking for air leaks, diaphragm condition, and electrical connections. We provide comprehensive services including on-site inspection, repair, and calibration to maximize the lifespan and efficiency of your pulse jet valves. For detailed manuals and troubleshooting guides, please refer to the documentation provided with your product or visit our official website.

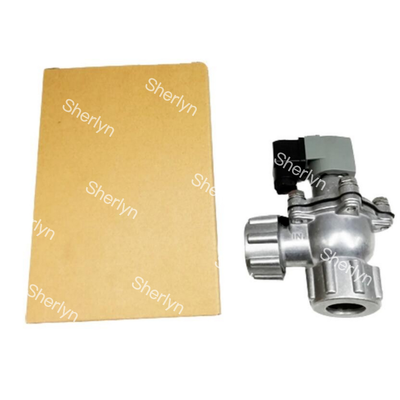

Packing and Shipping:
