GOYEN 4th generation RCAC25FS4 1-inch flange pulse valve pneumatic dust control

Product Description:

The Goyen DD series is a high-performance diaphragm pulse jet valve featuring a dresser nut connection structure. It is designed with a 90° right-angle inlet and outlet, providing efficient flow control. This series can be equipped with either an integral pilot solenoid or a remote pilot control system, offering flexibility in operation.

As a classic dresser nut type pulse valve, the Goyen DD series is extensively utilized in reverse pulse jet dust cleaning systems. It is particularly effective in applications involving dust collectors and baghouses, where reliable performance is critical for maintaining air quality and system efficiency.

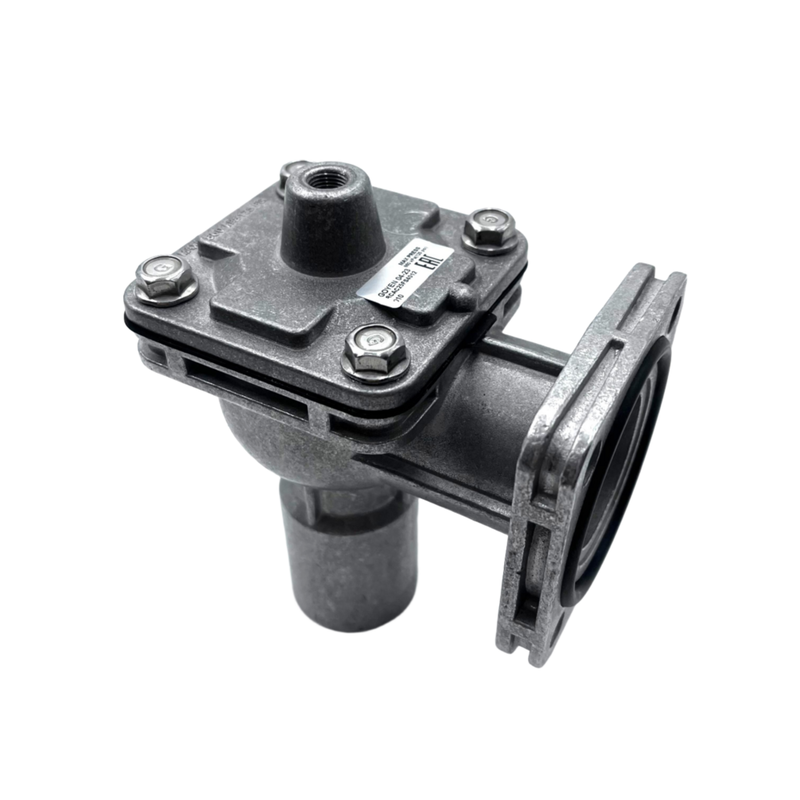

On the other hand, the Goyen FS series represents a high-performance diaphragm pulse jet valve with a flanged inlet connection. It features a flange connection at the inlet and a slide-seal outlet port, accompanied by a 90° right-angle flow channel. This series employs a weldless flange design, making it especially suitable for square air tank assemblies.

The FS series supports both integral pilot and remote pilot control options. Compared to the DD series, the FS series offers a larger inlet diameter, which translates into enhanced flow performance. This makes the FS series an excellent choice for applications requiring higher flow rates and larger air handling capacity.

Features:

The dresser nut features a quick connection design, which allows for easy installation, disassembly, and maintenance directly on-site without the need for welding. This user-friendly structure significantly reduces downtime and simplifies the overall handling process.

Constructed from high-pressure die-cast aluminum, the main body ensures durability and strength under demanding conditions. For applications involving corrosive environments, an optional version made of 316 stainless steel is available, providing enhanced resistance and longevity.

Additionally, the product supports diaphragm seals made from either Nitrile or Viton materials. The Nitrile seals are suitable for temperatures ranging between -40°C and 82°C, while the Viton seals can endure a broader range from -29°C up to 232°C. This flexibility allows adaptation to both low and high-temperature operating environments.

The combination of the high-pressure die-cast aluminum body and the optional 316 stainless steel variant makes this product highly versatile and reliable for use with various corrosive media, ensuring optimal performance in challenging conditions.

Technical Parameters:

Applications:

Reverse pulse jet filter cleaning technology is utilized for a variety of filter types, including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters. This method ensures effective cleaning and maintenance, enhancing the performance and longevity of filtration systems.

This cleaning system is particularly well-suited for square tank dust collector setups. Its design allows for efficient dust removal and system upkeep, making it an ideal solution for such applications.

Commonly applied across numerous industries, reverse pulse jet filter cleaning plays a vital role in sectors like cement manufacturing, chemical processing, mining, food production, power generation, metallurgy, waste incineration, and industrial dust emission control projects. Its versatility and efficiency make it indispensable for maintaining air quality and regulatory compliance in these environments.

Support and Services:

Our Pulse Jet Valves are designed for reliable and efficient performance in dust collector systems. For technical support, please ensure that you have the valve model number, serial number, and details of the issue ready when seeking assistance. Our technical team can provide troubleshooting guidance, maintenance tips, and replacement parts information to help maximize the lifespan and functionality of your valves.

We recommend regular inspection and cleaning of the Pulse Jet Valves to prevent clogging and ensure optimal pulse cleaning performance. Replacement of diaphragm and seals should be done as per the maintenance schedule or when wear is detected. Proper installation and correct electrical connections are essential for the valve’s operation and longevity.

Our services include on-site inspections, repair services, and training sessions for your maintenance staff to ensure proper handling and servicing of the Pulse Jet Valves. For detailed product manuals, installation guides, and technical bulletins, please refer to our website or product documentation provided with your purchase.

Packing and Shipping:

Our Pulse Jet Valves are carefully packaged to ensure maximum protection during transit. Each valve is securely placed in custom-designed foam inserts within sturdy cardboard boxes to prevent any damage from shocks or vibrations. The packaging materials are chosen to be both durable and environmentally friendly, minimizing waste while maintaining product safety.

For shipping, we offer multiple options including standard ground, expedited, and freight services to accommodate your delivery needs. All shipments are tracked with real-time updates provided to the customer to ensure timely and accurate delivery. Additionally, we comply with all international shipping regulations to guarantee smooth customs clearance for global orders.

Before dispatch, each Pulse Jet Valve undergoes a final quality inspection to verify functionality and integrity, ensuring you receive a product that meets our high standards. Our commitment to secure packaging and reliable shipping means your Pulse Jet Valve will arrive safely and ready for immediate use.
