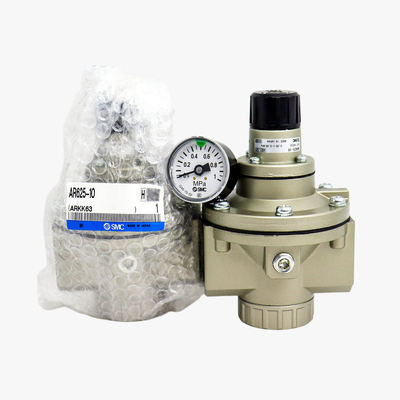

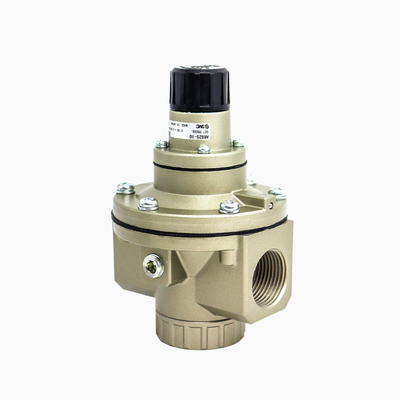

SMC AR835‑12G AR835‑14G AR835 Series Air Pressure Regulator Stable Diaphragm Structure Reliable Setting Repeatability Convenient Field Service For Large Factory Pneumatic Module Assembly Setup

Product Description:

The SMC AR series is a pneumatic air pressure regulator specifically engineered to stabilize and reduce compressed air pressure within industrial pneumatic systems. It is available in a range of port sizes, including 06, 10, 12, 14, and 20. Certain models feature a suffix G , which indicates the integration of a pressure gauge for real-time monitoring of air pressure. Additionally, the suffix -X218 denotes custom specifications tailored for specialized working conditions.

This series encompasses several variants, such as AR625, AR635, AR825, AR835, AR925, and AR935. These models provide high flow capacity along with consistent pressure output, ensuring excellent regulation performance even when the inlet pressure fluctuates. The compact and sturdy design of the housing makes the regulator suitable for demanding industrial environments.

The AR series regulators are widely utilized to maintain stable operating pressure across various pneumatic devices, including actuators, cylinders, air tools, and automated production lines. With different model codes available, users can select regulators that meet specific flow rate requirements and port connection preferences, ensuring compatibility and optimal performance in diverse applications.

Features:

The product ensures precise reduction of compressed air pressure while maintaining a stable output pressure. This makes it ideal for applications requiring accurate control of air flow.

Designed for heavy-duty pneumatic equipment, it offers a large flow capacity that can handle demanding operational conditions efficiently. This robust performance supports continuous industrial use without compromising reliability.

For convenient pressure monitoring, the suffix G version comes equipped with a built-in pressure gauge. This feature allows users to directly observe pressure levels, enhancing operational safety and control.

Additionally, there is a special custom specification available, designated as the ‑X218 version. This option caters to unique application scenarios requiring tailored solutions beyond the standard models.

The device is constructed from a durable aluminum alloy body, ensuring a long service life even under continuous industrial operation. Its solid build quality contributes to sustained performance and reduced maintenance needs.

It also demonstrates excellent resistance to pressure fluctuations. Even when the inlet pressure varies, the outlet pressure remains stable, ensuring consistent performance across varying conditions.

To accommodate diverse pipeline requirements, multiple port sizes are offered, including 06, 10, 12, 14, and 20. This range provides flexibility for integration with different pneumatic systems.

Pressure adjustment is user-friendly, achieved easily by turning the adjustment knob. This simple mechanism enables quick on-site operation without the need for specialized tools.

Furthermore, the modular design allows for seamless installation alongside SMC pneumatic filter and lubricator units, enhancing system versatility and simplifying assembly.

Technical Parameters:

Applications:

Our offerings include general industrial automated pneumatic production lines, designed to enhance efficiency and reliability in various manufacturing processes.

We provide precise pressure control solutions for pneumatic cylinders and actuators, ensuring optimal performance and extended equipment life.

In addition, our products support the regulation of pressure in air tools and air-operated equipment, contributing to consistent and safe operation.

Our expertise extends to a variety of machinery, including machine tools, packaging machinery, and textile machinery, catering to diverse industrial needs.

We specialize in stabilizing pressure within factory compressed air supply circuits, which is critical for maintaining smooth and uninterrupted production flows.

Our solutions are also applied in automotive assembly equipment and material handling systems, supporting modern manufacturing automation.

Furthermore, we offer customized options for special process equipment that require the X218 modified specification, tailored to meet specific operational requirements.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please ensure that you have the model number and serial number of your FRL unit ready when seeking assistance.

Installation guidelines recommend mounting the FRL unit vertically with the air flow direction indicated by the arrow on the body. Ensure that the unit is installed upstream of all pneumatic equipment requiring filtered, regulated, and lubricated air.

Regular maintenance is crucial for optimal operation. Check and replace filter elements as needed to prevent clogging. Drain accumulated water and contaminants frequently from the filter bowl. Adjust the regulator to the desired pressure and verify with a pressure gauge. Refill the lubricator reservoir with the recommended pneumatic oil to maintain proper lubrication of downstream components.

Troubleshooting tips include checking for air leaks at connections, ensuring the regulator knob is not locked, and verifying the presence of sufficient lubricant in the lubricator bowl. If pressure fluctuations or contamination persist, inspect the internal components for wear or damage and replace parts as necessary.

For detailed technical specifications, maintenance manuals, and replacement parts information, please refer to the product documentation provided with your unit or visit our official website.

Packing and Shipping:

The Pneumatic Filter Regulator Lubricator (FRL) unit is carefully packaged to ensure protection during transit. Each unit is wrapped in anti-static bubble wrap and placed inside a sturdy cardboard box with foam inserts to prevent movement and absorb shocks. The packaging is clearly labeled with handling instructions and product details to facilitate safe shipping and easy identification.

For shipping, the FRL units are dispatched via reliable courier services with tracking options available. Depending on the destination, appropriate shipping methods such as air, sea, or ground transport are selected to ensure timely and secure delivery. All shipments comply with relevant safety and transportation regulations to guarantee the product arrives in perfect working condition.
