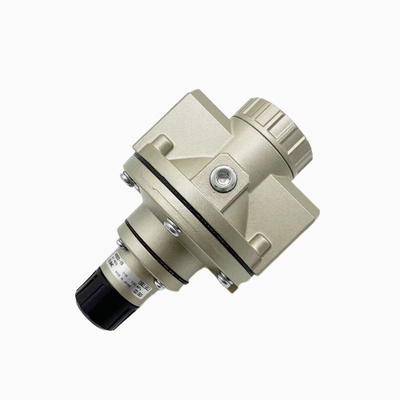

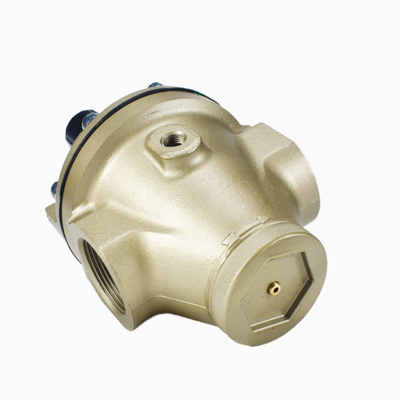

SMC AR625‑06 AR625‑10 Pilot Operated Pressure Regulator 3/4 1 Inch Port Relieving Type High Precision Output For Stable Compressed Air Control On Heavy Duty Industrial Pneumatic Systems

Product Description:

The SMC AR series pneumatic air pressure regulator is specifically engineered to stabilize and reduce compressed air pressure within industrial pneumatic systems. It is available in a variety of port sizes, including 06, 10, 12, 14, and 20. Additionally, models with the suffix G are equipped with an integrated pressure gauge, allowing for real-time monitoring of the pressure. The designation -X218 indicates a special custom specification designed to meet unique operational requirements in specialized working conditions.

This series includes several variants such as AR625, AR635, AR825, AR835, AR925, and AR935. These models are known for their high flow capacity, stable pressure output, and outstanding pressure regulation performance even when the inlet pressure fluctuates. The regulators feature a compact and durable housing construction, making them suitable for demanding industrial environments.

Widely utilized across various applications, the AR series helps maintain consistent operating pressure for pneumatic actuators, cylinders, air tools, and automated production lines. The range of model codes available ensures that different flow rates and port connection needs can be met efficiently, providing flexibility and reliability in diverse pneumatic setups.

Features:

This product offers precise reduction of compressed air pressure, ensuring a stable and consistent output pressure. It is designed to maintain reliable performance even under varying input conditions.

Equipped with a large flow capacity, it is well-suited for heavy-duty pneumatic equipment, providing the necessary airflow to support demanding industrial operations without compromising efficiency.

The suffix "G" version includes a built-in pressure gauge, allowing users to monitor the pressure directly and conveniently at a glance. This feature enhances operational awareness and control.

For specialized needs, a custom specification identified as "-X218" is available, catering to unique application scenarios that require tailored solutions beyond standard configurations.

Constructed with a robust aluminum alloy body, the product ensures a long service life and durability, making it suitable for continuous use in industrial environments.

It demonstrates excellent resistance to pressure fluctuations, maintaining a stable outlet pressure even when the inlet pressure varies significantly. This stability is essential for consistent system performance.

To accommodate various pipeline requirements, multiple port size options are provided, including 06, 10, 12, 14, and 20, offering flexibility in installation and integration.

Adjusting the pressure is straightforward with an easy-to-turn adjustment knob, facilitating simple and efficient on-site operation without the need for specialized tools.

Additionally, the unit features a modular design compatible with SMC pneumatic filter and lubricator components, enabling seamless installation and customization within existing pneumatic systems.

Technical Parameters:

Applications:

This product is widely applied in general industrial automated production lines that utilize pneumatic systems. It plays a key role in ensuring efficient and reliable operation of pneumatic automation.

It offers precise pressure control for pneumatic cylinders and actuators, helping to maintain optimal performance and extend the lifespan of these components.

Additionally, it is used for regulating pressure in various air tools and air-operated equipment, ensuring consistent and safe operation across different applications.

The product finds its use in a range of machinery including machine tools, packaging machines, and textile machinery, adapting to the specific requirements of each industry.

It also helps in stabilizing the pressure within factory compressed air supply circuits, contributing to overall system reliability and efficiency.

Furthermore, it is suitable for automotive assembly equipment and material handling systems, supporting critical manufacturing and logistics processes.

For specialized process equipment, there is an option available with the X218 modified specification, catering to unique or customized operational demands.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air flow. To maintain the efficiency of your FRL product, regular inspection and maintenance are recommended.

For technical support, please ensure you have the model number and specifications of your FRL unit available. Our support team can assist with installation guidance, troubleshooting common issues such as pressure drops, air leaks, or lubrication problems, and provide advice on replacement parts.

We offer comprehensive services including product installation assistance, routine maintenance schedules, and performance optimization. Our experts can also help customize FRL solutions to meet specific application requirements or environmental conditions.

To maximize the lifespan of your Pneumatic Filter Regulator Lubricator, it is important to regularly check the filter element for contamination and replace it as needed, monitor the regulator for correct pressure settings, and ensure the lubricator has the appropriate type and level of lubricant.

Our commitment is to provide reliable and efficient pneumatic components supported by expert technical service to keep your operations running smoothly. Please refer to the product manual for detailed instructions and safety information.

Packing and Shipping:

Our Pneumatic Filter Regulator Lubricator (FRL) units are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in a custom-fitted foam insert within a sturdy corrugated cardboard box to prevent damage from shocks and vibrations. The packaging materials are chosen to be environmentally friendly and recyclable.

For shipping, we offer multiple options including standard ground, expedited, and freight services to meet your delivery needs. All shipments are tracked and insured to guarantee safe and timely arrival. International orders are handled with proper documentation and compliance to customs regulations to avoid delays.
