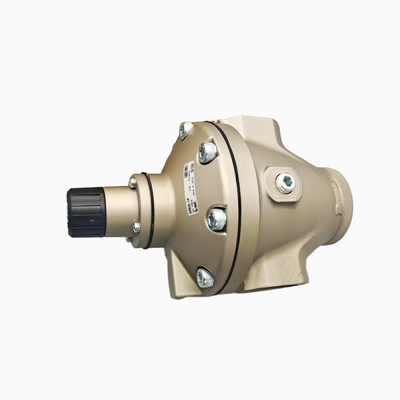

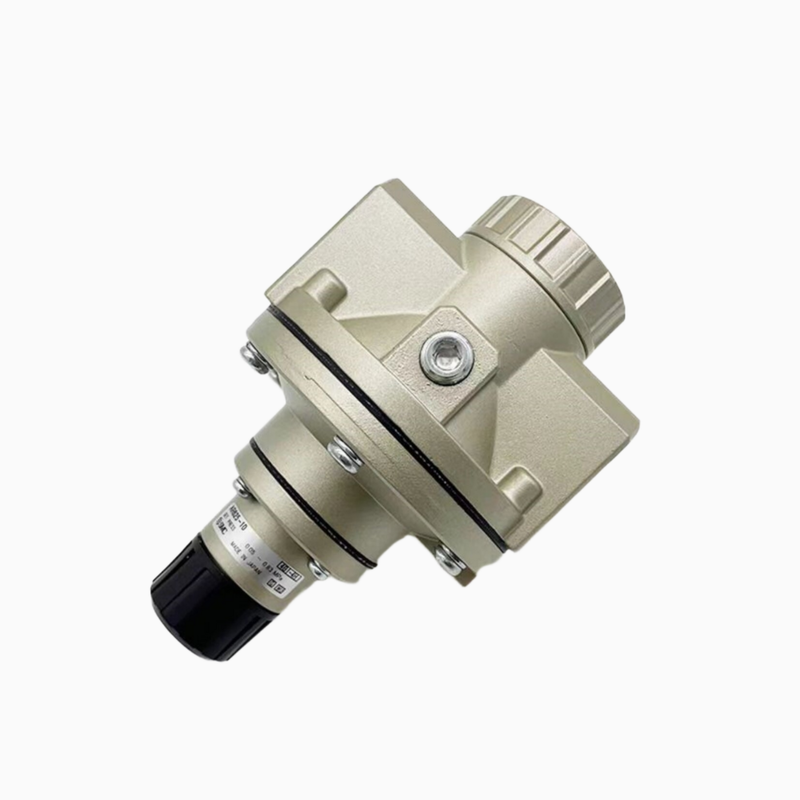

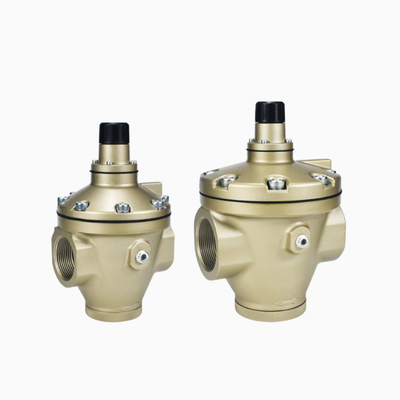

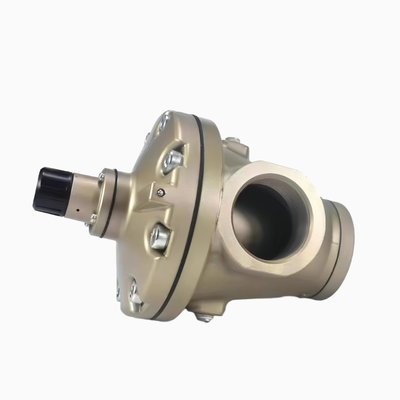

SMC AR835‑12 AR835‑14 AR835 Series Air Pressure Regulator Reliable Diaphragm Assembly Good Setting Repeatability Simple Maintenance For Large Factory Pneumatic Module Assembly Setup

Product Description:

The SMC AR series pneumatic air pressure regulators are specially designed to stabilize and reduce compressed air pressure within industrial pneumatic systems. These regulators come in a variety of port sizes, including 06, 10, 12, 14, and 20, to accommodate different installation requirements. Models featuring the suffix G are equipped with an integrated pressure gauge, allowing for real-time monitoring of the pressure. Additionally, the designation -X218 indicates a special custom specification tailored for unique working condition demands.

This series includes several variants such as AR625, AR635, AR825, AR835, AR925, and AR935. Each model provides a high flow capacity and stable pressure output, ensuring excellent pressure regulation performance even when the inlet pressure fluctuates. The compact and sturdy design of the housing makes these regulators well-suited for heavy-duty industrial environments, offering reliable operation under demanding conditions.

The AR series regulators are widely utilized to maintain consistent operating pressure for pneumatic actuators, cylinders, air tools, and automated production lines. The various model codes are designed to meet diverse flow rate requirements and port connection specifications, making the series versatile and adaptable to a broad range of applications.

Features:

This product offers precise control over compressed air pressure reduction, ensuring a consistently stable output pressure. It is designed to handle large flow capacities, making it ideal for use with heavy-duty pneumatic equipment.

The version with the suffix "G" includes a built-in pressure gauge, allowing for direct and convenient pressure monitoring. Additionally, a special custom specification, labeled as -X218, is available to meet the needs of unique application scenarios.

Constructed from a robust aluminum alloy, the body provides long service life, capable of withstanding continuous industrial operation. The device also demonstrates excellent resistance to pressure fluctuations, maintaining stable outlet pressure even when the inlet pressure varies.

To accommodate different pipeline requirements, multiple port size options are offered, including 06, 10, 12, 14, and 20. Pressure adjustment is straightforward, facilitated by a simple turning knob that enables easy on-site operation.

Moreover, the modular design allows for seamless installation together with SMC pneumatic filter and lubricator units, enhancing overall system compatibility and performance.

Technical Parameters:

Applications:

Our solutions are widely used in general industrial automated production lines that utilize pneumatic systems. These lines benefit from reliable and efficient automation powered by compressed air technology.

Pressure control is critical in pneumatic cylinders and actuators, ensuring precise and consistent operation. We provide advanced pressure regulation to optimize the performance of these components.

Additionally, our equipment supports air tools and various air-operated machinery by maintaining stable pressure levels, enhancing the safety and efficiency of these tools.

The machinery sectors we serve include machine tools, packaging machinery, and textile machinery, where exact pressure control contributes to product quality and operational reliability.

In factory environments, we focus on stabilizing the pressure within compressed air supply circuits to maintain consistent performance across different systems and stages of production.

Our technologies are also implemented in automotive assembly lines and material handling systems, where precise pneumatic control is essential for efficient and safe operations.

For specialized industrial processes, we offer equipment conforming to the modified X218 specification, catering to unique requirements that demand customized pneumatic solutions.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air flow. To maintain peak efficiency, regular maintenance and proper installation are essential.

When installing the FRL unit, ensure that it is mounted vertically and upstream of any pneumatic equipment. Use appropriate fittings and avoid excessive tightening to prevent damage to the unit. Confirm that the air supply is clean and dry before entering the filter to maximize filter element life.

Periodic maintenance includes checking and draining the filter bowl to remove accumulated water and contaminants. Replace the filter element as recommended or when a noticeable drop in air pressure occurs. The regulator should be adjusted to the desired pressure setting and checked regularly to maintain consistent output pressure.

The lubricator reservoir should be filled with the recommended pneumatic oil, and the drip rate adjusted to suit the application requirements. Avoid over-lubrication, which can cause contamination and damage to downstream equipment.

If the FRL unit exhibits signs of malfunction such as pressure fluctuations, air leaks, or inadequate filtration, inspect all components for wear or damage and replace parts as necessary. Use only genuine replacement parts to ensure compatibility and performance.

For detailed troubleshooting, maintenance schedules, and part replacement procedures, refer to the product manual provided with your FRL unit. Proper care and timely servicing will extend the life of your pneumatic system and enhance operational reliability.

Packing and Shipping:

Product Packaging:

The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, high-quality cardboard box to prevent damage during transit. Inside the box, the product is cushioned with protective foam inserts to absorb shocks and vibrations. All components are individually wrapped in anti-static and moisture-resistant materials to maintain product integrity. The packaging includes clear labeling with product details, handling instructions, and safety warnings to ensure proper care.

Shipping:

Our Pneumatic Filter Regulator Lubricator is shipped using reliable carriers with tracking options for secure and timely delivery. The packaging is designed to withstand various shipping conditions, including handling, stacking, and environmental factors. We offer multiple shipping options to meet your needs, including standard, expedited, and international delivery services. Each shipment is carefully inspected before dispatch to guarantee the product arrives in perfect condition.
