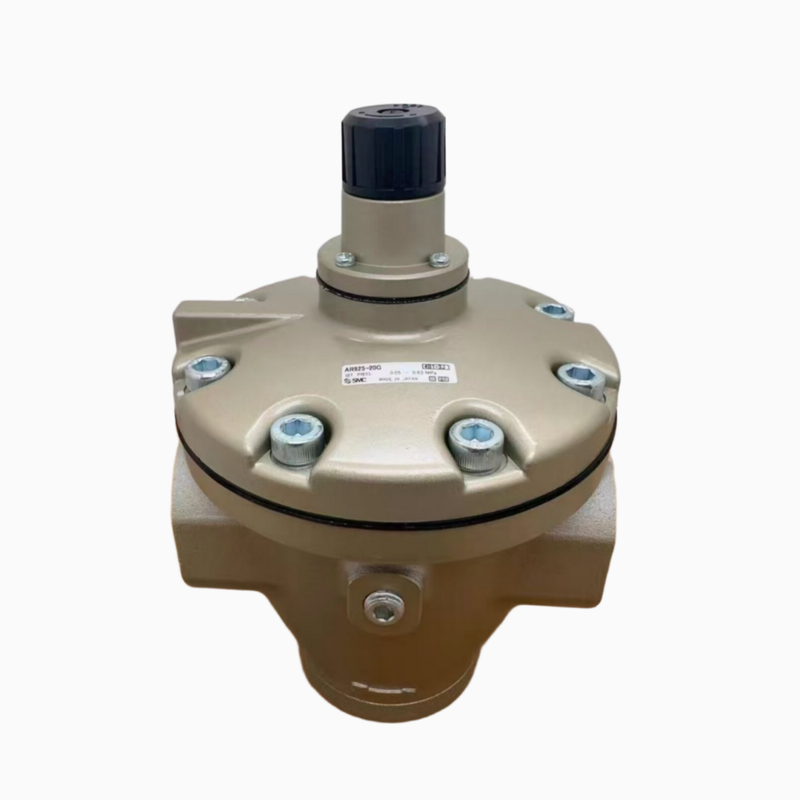

SMC AR925‑20G AR935‑20G Internal Pilot Pressure Regulator G2 Port With Built‑In Pressure Gauge Lock Adjust Knob For Large Bore Main Line Compressed Air Control On Heavy Duty Pneumatic Equipment

Product Description:

The SMC AR series pneumatic air pressure regulator is specifically engineered to stabilize and reduce compressed air pressure within industrial pneumatic circuits. It is offered in a variety of port sizes, including 06, 10, 12, 14, and 20. Models that feature the suffix G come equipped with an integrated pressure gauge, allowing for real-time pressure monitoring. Additionally, the designation ‑X218 indicates special custom specifications tailored for unique working conditions.

This AR series encompasses several variants, such as AR625, AR635, AR825, AR835, AR925, and AR935, each designed to provide a large flow capacity along with a stable pressure output. They excel in maintaining excellent pressure regulation performance even when faced with fluctuating inlet pressures. The compact yet robust housing ensures durability and suitability for heavy-duty industrial environments.

Widely used across various applications, these regulators help maintain a consistent operating pressure for pneumatic actuators, cylinders, air tools, and automated production lines. The different model codes are intended to meet diverse flow rate requirements and port connection specifications, making the AR series a versatile choice for many pneumatic system needs.

Features:

This product offers precise compressed air pressure reduction, ensuring a stable output pressure. It is designed to maintain consistent performance even under varying operational conditions.

Equipped with a large flow capacity, it is suitable for heavy-duty pneumatic equipment, providing reliable airflow to meet demanding industrial needs.

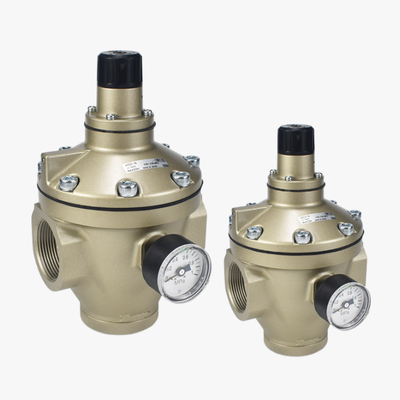

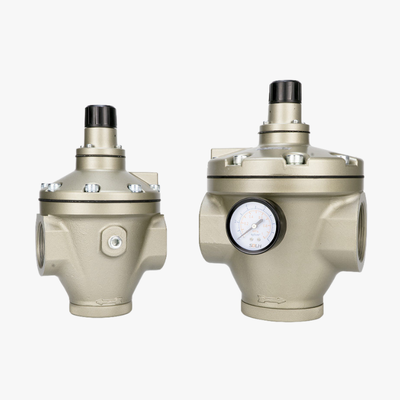

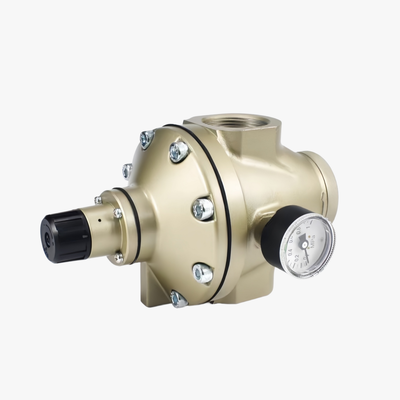

The version with the suffix "G" includes a built-in pressure gauge, allowing for direct and convenient pressure monitoring without the need for additional instruments.

For specialized application scenarios, a custom specification identified as "-X218" is available, catering to unique requirements with tailored features.

Constructed from a robust aluminum alloy body, this product guarantees a long service life, making it ideal for continuous operation in industrial environments.

It exhibits excellent resistance to pressure fluctuations, maintaining a stable outlet pressure despite variations in the inlet pressure, which enhances reliability.

Multiple port size options are offered, including sizes 06, 10, 12, 14, and 20, to accommodate various pipeline configurations and installation needs.

Pressure adjustment is straightforward and user-friendly; simply turning the adjustment knob allows for easy on-site modifications without specialized tools.

The design supports modular installation, ensuring compatibility with SMC pneumatic filter and lubricator units, simplifying system integration and maintenance.

Technical Parameters:

Applications:

Our expertise encompasses general industrial automated pneumatic production lines, ensuring efficient and reliable operations across various sectors. We specialize in the precise control of pneumatic cylinders and actuator pressures, which are critical for maintaining optimal system performance.

Additionally, we provide regulation solutions for air tools and air-operated equipment, enabling consistent pressure levels that enhance tool efficiency and longevity. Our services extend to machinery used in different industries, including machine tools, packaging machinery, and textile machinery, supporting diverse manufacturing needs.

We also focus on stabilizing the pressure within factory compressed air supply circuits, which is essential for maintaining uniform performance and protecting sensitive equipment. This expertise is vital for automotive assembly equipment and material handling systems, where precise pressure control ensures smooth operation and improved productivity.

Moreover, we offer specialized solutions tailored to unique process equipment requiring the X218 modified specification, addressing specific operational requirements and customization demands.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air. For technical support, please ensure your system is installed according to the manufacturer's guidelines, including proper mounting orientation and connection of input and output ports.

Regular maintenance is essential for the efficient operation of the FRL unit. This includes periodic draining of accumulated water and contaminants from the filter bowl, inspection and replacement of filter elements, and checking the lubricator oil level to ensure proper lubrication of downstream components.

When troubleshooting, verify that the air supply pressure is within the specified range and that the regulator is adjusted correctly. Check for any air leaks or blockages in the system that could affect performance. If the lubricator is not delivering oil properly, ensure that the oil reservoir contains the recommended lubricant and that the drip rate is adjusted according to your equipment requirements.

For replacement parts and accessories, use only genuine components recommended by the manufacturer to maintain system integrity and warranty coverage. If you experience any issues beyond routine maintenance and adjustment, please refer to the detailed product manual for advanced diagnostics and servicing instructions.

Our technical support team is committed to assisting you with installation, operation, and maintenance guidance to maximize the reliability and efficiency of your pneumatic systems utilizing our Filter Regulator Lubricator units.

Packing and Shipping:

Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, impact-resistant box to ensure protection during transit. Inside, the product is cushioned with foam inserts to prevent any movement or damage. The packaging includes all necessary installation accessories, a user manual, and warranty information. Each box is clearly labeled with the product name, model number, and handling instructions for easy identification.

Shipping: We offer reliable shipping options to deliver the Pneumatic Filter Regulator Lubricator promptly and safely to your location. Products are shipped via trusted carriers with tracking available for all orders. Packaging is designed to withstand handling during transportation, ensuring the product arrives in perfect condition. Expedited shipping options are available upon request to meet urgent requirements.
