Product Description:

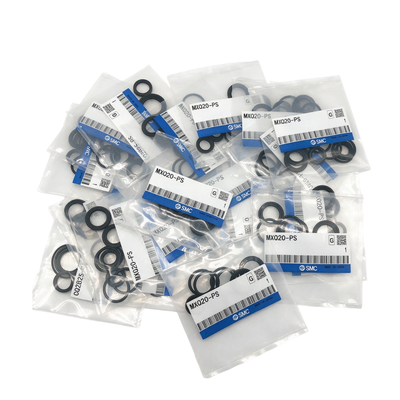

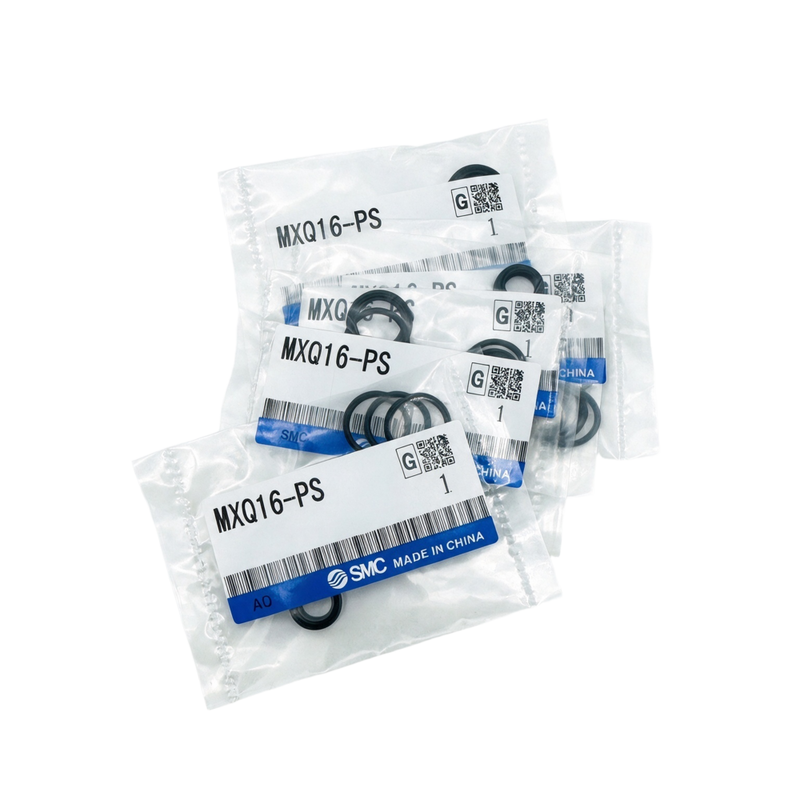

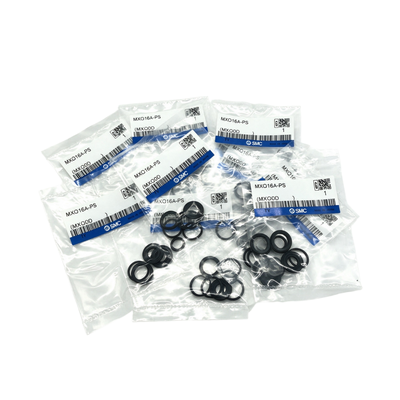

The air slide table seal kits are meticulously crafted replacement sets, specifically designed for the maintenance and refurbishment of MXQ series precision pneumatic slide tables. These kits cater to a range of bore sizes from 6mm to 25mm and include all the necessary sealing components to perform a full rebuild of the slide table. Each kit contains a piston seal, a rod seal, and an O-ring.
Made from high-quality NBR (nitrile rubber), the seals provide exceptional resistance against wear, oil, and abrasion, ensuring dependable operation within pneumatic systems. The MXQ series slide tables are engineered with an integrated guide rail and table, featuring a circulation-type linear guide that guarantees high rigidity and precision. This makes them particularly suitable for applications such as precision assembly, pick and place, and material handling.
Replacing seals regularly using these kits helps restore the performance of the slide table, prevents air leakage, and extends the lifespan of existing actuators. This maintenance approach offers a cost-effective alternative to full replacement. Please note that the seal kit does not come with a grease pack, which must be purchased separately.
Features:
Complete Seal Kit for Slide Table Rebuild
This comprehensive seal kit includes all necessary components for a full slide table rebuild: piston seal, rod seal, and O-ring. It is designed to ensure a complete restoration of your slide table’s performance.
The kit is available in multiple bore sizes including 6mm, 8mm, 12mm, 16mm, 20mm, and 25mm, catering to a variety of applications. All seals are made from NBR (nitrile rubber), which provides excellent resistance to oil and wear, ensuring durability and long-lasting operation.
These seals are specifically compatible with MXQ series precision air slide tables that have integrated guide rails. By replacing worn seals, the kit helps to restore the slide table’s force, speed, and guidance accuracy by effectively eliminating air leakage.
Choosing this seal kit offers a cost-effective solution compared to replacing the entire slide table, significantly extending the life of your actuator. Installation is quick and easy, requiring only standard tools, making maintenance straightforward and efficient.
The seals are designed to operate within a temperature range of -10°C to +60°C and can withstand operating pressures from 0.15 to 0.7 MPa. Additionally, the kit complies with RoHS standards, ensuring it meets environmental and safety regulations.
For simplified inventory management, each bore size is assigned a unique kit number. Furthermore, a grease pack is available separately to provide proper lubrication during installation, enhancing seal performance and longevity.
Technical Parameters:
| Action Type |
Double Acting |
| Seal Material |
NBR |
| Proof Pressure |
1.05 MPa |
| Kit Contents |
Piston Seal, Rod Seal, O-ring |
| Series |
MXQ |
| Bore Sizes |
6mm, 8mm, 12mm, 16mm, 20mm, 25mm |
Applications:
Pick and Place Units
Maintenance of slide tables plays a crucial role in ensuring precision positioning within pick and place units. Regular servicing helps maintain accuracy and smooth operation in these systems.
Factory Automation
In automated production lines, repair and upkeep of slide tables are essential to keep the manufacturing process running efficiently. Timely repairs minimize downtime and enhance productivity.
Material Handling
Seal replacement for slide tables is vital in conveyors and handling systems. Proper sealing ensures durability and prevents contamination, contributing to reliable material transport.
Packaging Machinery
Maintenance of slide tables within packaging and filling equipment ensures smooth and precise movements. This upkeep supports the overall efficiency and accuracy of packaging operations.
Electronic Component Manufacturing
Repairing slide tables in precision assembly equipment is critical in the production of electronic components. It helps maintain the high standards required for assembling intricate parts.
General Industrial Pneumatics
Across various applications that demand reliable and precise slide table sealing, general industrial pneumatics benefit from specialized maintenance and repair services to ensure consistent performance.
Customization:
Our SMC MXQ6-PS Piston Pneumatic Cylinder offers comprehensive product customization services to meet your specific needs. Manufactured in China and CE certified, this double acting cylinder from the MXQ series is available with bore sizes of 6mm, 8mm, 12mm, 16mm, 20mm, and 25mm, ensuring a perfect fit for your application.
We provide customized kit contents including piston seals, rod seals, and O-rings made from high-quality NBR seal material, ensuring durability and optimal performance. Whether you require a norgren service kit, norgren overhaul kit, or norgren cylinder repair kit, we can tailor the components to suit your maintenance and repair requirements.
Our minimum order quantity is 1 unit, with pricing available upon negotiation. Products are carefully packaged in cartons or according to client specifications to ensure safe delivery. We guarantee delivery within 1-7 work days after payment confirmation.
Payment terms are flexible, accepting T/T, Western Union, and Paypal. With a supply ability of 5000 pieces per month, we are well equipped to handle orders of various sizes efficiently. Trust our customization service to provide you with reliable and high-quality piston pneumatic cylinders and repair kits that meet your exact demands.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective film to prevent scratches and corrosion. It is then securely placed in a custom-fit foam insert within a sturdy cardboard box to minimize movement and absorb shocks.
For bulk orders, individual units are packed in separate compartments within larger boxes to avoid damage from contact between cylinders. All packaging materials are chosen to be environmentally friendly and recyclable.
Shipping is handled through reliable carriers with tracking options available. We ensure timely dispatch and provide customers with tracking information to monitor the shipment progress. For international orders, all necessary export documentation is included to facilitate smooth customs clearance.
Special packaging requests and expedited shipping options are available upon request to meet specific customer needs.
