Product Description:

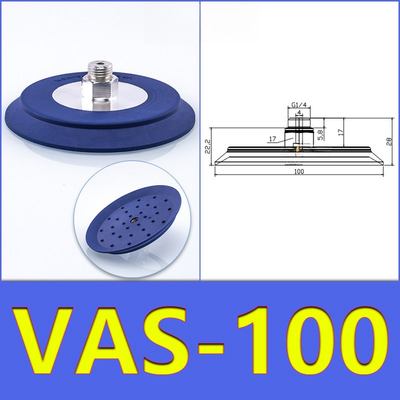

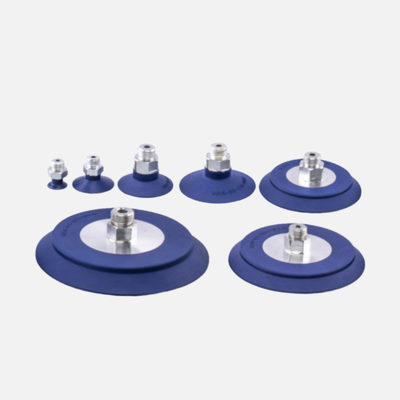

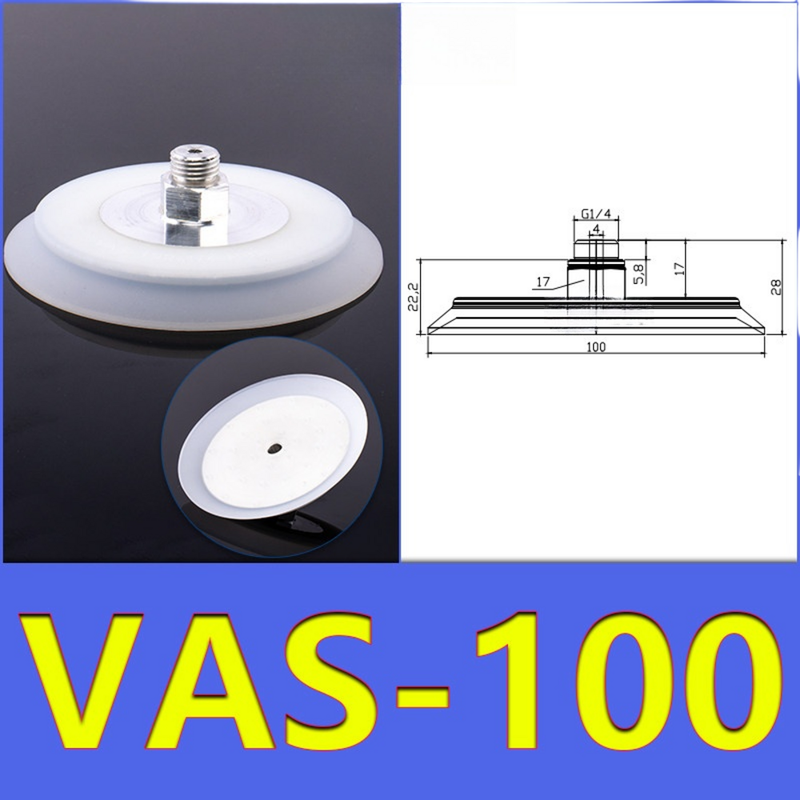

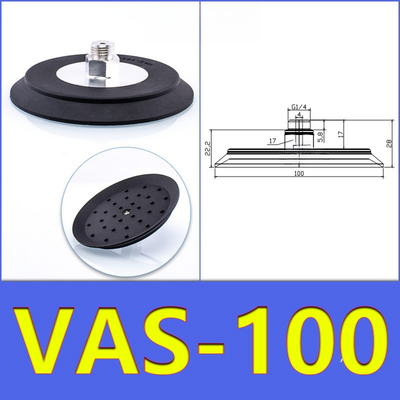

The VAS series consists of industrial vacuum suction cups that are engineered to provide reliable gripping, lifting, and handling of workpieces within both automated and semi-automated production environments. These suction cups are available in seven different diameters, ranging from 15 mm to 125 mm, accommodating a broad spectrum of workpiece sizes and weights. Each suction cup is equipped with a fixed threaded connection—either G1/8, G1/4, or G3/8 depending on the size—for direct attachment to vacuum generators, grippers, and various handling systems.
To adapt to diverse workpiece surfaces and environmental conditions, the VAS series offers three distinct suction cup materials. NBR (nitrile rubber) serves as a versatile option ideal for general industrial use, delivering excellent resistance to oils, abrasion, and wear. PUR (polyurethane) is characterized by its softer texture, which not only extends the service life but also ensures gentle handling of delicate surfaces. Silicone (SI) suction cups stand out with their high-temperature resistance, making them especially suitable for food industry applications and other scenarios that demand elevated temperature tolerance.
The series features two suction cup designs. The round flat shape, referred to as VAS, is perfect for smooth, flat workpieces that have a well-finished surface. Alternatively, the protective bellows shape, known as VASB, offers height compensation and is tailored for uneven, curved, or textured surfaces where enhanced flexibility and shock absorption are necessary. Additionally, all suction cups comply with RoHS standards and operate using atmospheric air in accordance with ISO 8573-1:2010.
Typical uses of the VAS series include a wide range of handling tasks such as lifting, equipping, moving, inserting, conveying, gripping, holding, stacking, clamping, transporting, repositioning, and turning components within flexible automation systems. Their versatility and reliability make them an essential component in modern industrial production.
Features:
Vacuum Suction Cup Features and Specifications
The product offers seven different diameter options ranging from 15 mm to 125 mm. This extensive variety ensures compatibility with a broad spectrum of workpiece sizes and weight requirements, making it versatile for numerous industrial applications.
Customers can choose from three types of materials tailored to specific needs: NBR, which is suitable for universal industrial use; PUR, designed for long service life and gentle handling of workpieces; and silicone, ideal for applications involving high temperatures and the food industry.
Two distinct suction cup shapes are available. The round flat design (VAS) works best on smooth surfaces, while the protective bellows model (VASB) is intended for uneven or curved surfaces, providing height compensation to ensure a secure grip.
The suction cups come with fixed threaded connections in various sizes—G1/8, G1/4, or G3/8—depending on the diameter. This allows for direct mounting without the need for adapters, simplifying installation and improving reliability.
Built with sturdy and reliable construction, these suction cups are engineered to withstand demanding industrial gripping and handling tasks, offering durability and consistent performance over time.
Material Hardness and Properties
The NBR material has a Shore hardness of 70 ± 5, striking a good balance between flexibility and wear resistance, making it suitable for general-purpose gripping applications.
PUR material features a Shore hardness of 60 ± 5, which is softer and provides gentle treatment for sensitive or delicate workpieces.
Silicone material comes with a Shore hardness of 55 ± 5, offering a soft yet highly temperature-resistant solution especially suited for food-related or heat-exposed environments.
Compliance and Environmental Considerations
These suction cups comply with LABS (PWIS) standards under VDMA24364-A1-L, ensuring suitability for applications sensitive to paint-wetting impairments.
With a corrosion resistance classification of CRC 2, the design tolerates moderate corrosion stress, making it appropriate for various industrial environments.
Furthermore, the products are RoHS compliant, reflecting their environmentally friendly construction and adherence to hazardous substance restrictions.
Operating Conditions
The standard NBR suction cups operate efficiently within a temperature range of -20°C to +80°C. Silicone versions extend this capability, permitting usage in higher temperature scenarios.
The nominal operating pressure is set at -0.7 bar, optimizing the balance between vacuum generation and holding force, ensuring effective gripping performance.
Technical Parameters:
| Corrosion Resistance Class |
CRC 2 (moderate Corrosion Stress) |
| Suction Cup Diameters |
15 mm, 30 mm, 40 mm, 55 mm, 75 mm, 100 mm, 125 mm |
| Connection Threads |
G1/8 (15–40 mm), G1/4 (55–100 mm), G3/8 (125 mm) |
| Series |
VAS (round Flat) |
| Operating Medium |
Atmospheric Air Based On ISO 8573-1:2010 |
| Suction Cup Materials |
NBR (nitrile Rubber), PUR (polyurethane), Silicone (SI) |
Applications:
Flexible automation encompasses a wide range of tasks including lifting, equipping, moving, inserting, conveying, gripping, holding, stacking, clamping, transporting, repositioning, and turning components. This versatility allows for seamless integration in various automated processes.
In the realm of material handling, systems such as pick-and-place units, robotic end-effectors, and automated transfer lines play a crucial role. These technologies enhance efficiency and accuracy in moving materials throughout production lines.
Packaging machinery benefits greatly from advanced gripping and placement solutions. These systems are designed to handle cartons, films, and packaged goods with precision, ensuring that packaging operations remain smooth and reliable.
The manufacturing of electronic components demands meticulous handling of items like printed circuit boards (PCBs), small parts, and delicate assemblies. Specialized equipment ensures these sensitive components are managed carefully to prevent damage.
In food and beverage processing, silicone-based variants are available that meet stringent requirements for food contact and high-temperature operations. These versions provide safe and effective performance in hygienic environments.
Automotive manufacturing relies on robust handling solutions for body panels, glass, and various components used on assembly lines. Automated systems improve throughput while maintaining quality and precision.
General industrial gripping applications require dependable vacuum gripping technologies capable of handling both flat and uneven workpieces. Such solutions ensure consistent and secure handling across diverse manufacturing sectors.
Support and Services:
Product Technical Support and Services for Vacuum Suction Cup
Our Vacuum Suction Cup is designed to provide reliable and efficient handling solutions for a variety of applications. To ensure optimal performance and longevity of the product, please follow the guidelines below.
Installation and Usage:
1. Inspect the suction cup before use to ensure it is free from cracks, tears, or any damage.
2. Clean the surface where the suction cup will be applied to remove dust, grease, and other contaminants.
3. Ensure the surface is smooth, non-porous, and compatible with the suction cup material for maximum holding power.
4. Attach the suction cup firmly by pressing it against the surface and applying the necessary vacuum pressure according to the product specifications.
5. Avoid exposing the suction cup to extreme temperatures or aggressive chemicals that may degrade the material.
Maintenance:
1. Regularly clean the suction cup with mild soap and water to maintain its flexibility and sealing ability.
2. Inspect the suction cup periodically for signs of wear and replace it if any damage is detected.
3. Store suction cups in a cool, dry place away from direct sunlight when not in use.
Troubleshooting:
If you experience reduced suction or slipping during use, consider the following:
- Check if the contact surface is clean and smooth.
- Verify that the suction cup is not damaged or worn out.
- Ensure that the vacuum pressure is adequate and maintained properly.
- Confirm that the operating environment is within the recommended temperature and chemical exposure limits.
For further assistance, please refer to the product manual or support documentation provided with your Vacuum Suction Cup.
Packing and Shipping:
Product Packaging: Each Vacuum Suction Cup is carefully packaged in a sturdy, eco-friendly box to ensure protection during transit. The packaging includes a molded insert to securely hold the suction cup in place, preventing any movement or damage. Clear instructions and safety information are provided inside the package for easy reference.
Shipping: We offer reliable and fast shipping options worldwide. All orders are processed within 1-2 business days. The Vacuum Suction Cup is shipped in a reinforced outer carton to withstand handling during delivery. Tracking information will be provided once your order has been dispatched, ensuring you can monitor your shipment every step of the way.
