Shock-Free 270° Swivel Angle Double-Acting Rotary Vane Semi-Rotary Actuator Rotary Pneumatic Module for Wax Injection Mold Turnover

Product Description:

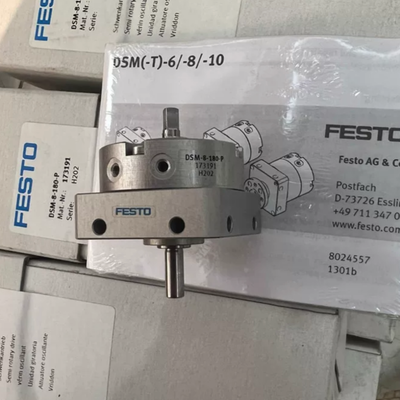

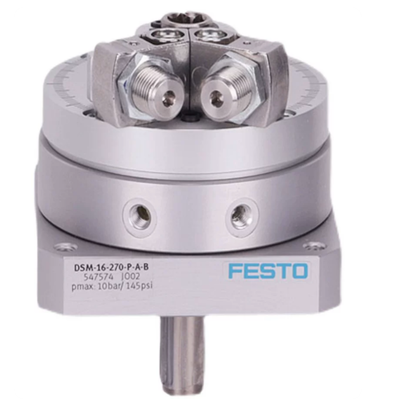

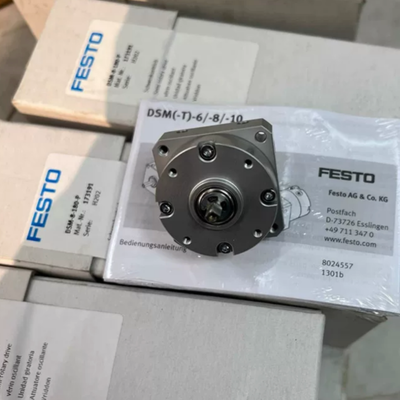

The FESTO DSM series is a double-acting vane type semi-rotary actuator designed to convert compressed air into angular motion. By driving the rotary vane, it achieves precise angular rotation, making it a versatile component in various automation applications.

This actuator offers an infinitely adjustable swivel angle within a full range of up to 270 degrees. It is equipped with fixed metal stops to ensure high positioning accuracy. Additionally, users can select from multiple cushioning options, shaft types, and mounting styles to best suit their specific needs.

Thanks to its modular design, the DSM series supports position sensing through proximity switches. Certain models in the series adhere to the ATEX explosion-proof standards, enhancing safety in hazardous environments. The tandem vane variant is capable of delivering a higher torque, up to 80 Nm, catering to demanding applications.

With its compact construction, splash-proof and dust-proof features, the DSM series is widely utilized for operations such as rotating, flipping, indexing, and positioning in automated production lines, providing reliable and efficient performance.

Features:

The vane double-acting structure features an infinitely adjustable swivel angle that covers the entire range, allowing for easy and precise fine-tuning of the angle. This design ensures smooth and flexible movement.

Incorporating a fixed metal stop, the device maintains a stable stop position even under heavy loads. This results in outstanding repeat positioning accuracy, enhancing reliability during operation.

To accommodate various impact loads, multiple cushioning options are available. These include an elastic cushion, an adjustable elastic cushion, and a hydraulic shock absorber, providing adaptability to different application requirements.

Technical Parameters:

Applications:

In the realm of automated assembly lines, several key operations are essential for efficient production. These include the flipping of workpieces, the rotation of fixtures, and the indexing of various stations to ensure smooth workflow transitions.

Material handling also plays a significant role in automation. This involves the use of rotary grippers on manipulators to efficiently grasp and move items. Additionally, diverting mechanisms are commonly employed to sort materials accurately within the system.

The packaging industry benefits from automation through tasks such as screwing caps onto containers, redirecting materials along conveyor paths, and positioning cartons precisely for further processing or shipment.

In the context of machine tools and processing equipment, automation facilitates operations like jig rotation and the adjustment of clamping units to different angles, thereby enhancing flexibility and precision in manufacturing.

Robotics applications often utilize small rotary joints and precise angular positioning to achieve complex movements and accurate handling in diverse tasks, contributing to smarter and more adaptable robotic systems.

Automotive automation involves functions such as clamping and rotating parts, as well as executing swing motions for test stations, all of which contribute to improving production throughput and quality control.

Lastly, light industry automation incorporates components like conveyor stoppers, mechanisms for changing the direction of materials, and sorting systems, optimizing the flow and organization of products during manufacturing.
