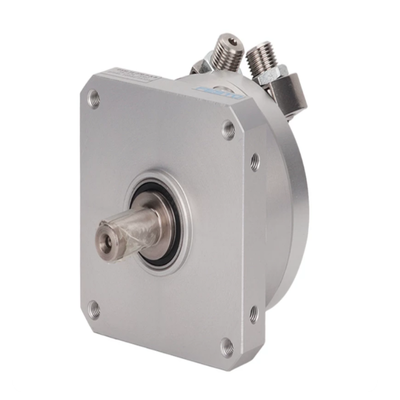

Double Acting Vane Rotary Drive with 270 Degree Swivel Angle and Shock Absorbing End Stop for Rotary Vane Actuator Sorting

Product Description:

The FESTO DSM series is a double-acting, vane-type semi-rotary actuator designed to provide precise angular movement. It operates by using compressed air to drive the rotary vane, enabling controlled rotation within a specified range.

This actuator offers an infinitely adjustable swivel angle, which can extend up to 270°. It features fixed metal stops that ensure high positioning accuracy, making it suitable for applications requiring precise control.

Various options are available with the DSM series, including multiple cushioning configurations, different shaft types, and a range of mounting styles. Its modular design allows for easy integration of position sensing using proximity switches.

Certain selected models of the DSM series comply with the ATEX explosion-proof standard, making them suitable for use in hazardous environments. Additionally, the tandem vane version delivers a higher torque output, reaching up to 80 Nm.

The compact and robust design of the actuator makes it splash-proof and dust-proof. Due to these features, it is widely used in automated production lines for applications such as rotating, flipping, indexing, and positioning tasks.

Features:

The vane features a double-acting structure, allowing for an infinitely adjustable swivel angle across the entire range. This design enables easy and precise fine-tuning of the angle to meet various operational requirements.

Equipped with a fixed metal stop, the stop position remains stable even under load conditions. This ensures excellent repeatability and high positioning accuracy during repeated operations.

There are multiple cushioning options available to accommodate different impact loads, including elastic cushions, adjustable elastic cushions, and hydraulic shock absorbers. These options provide flexibility to optimize performance and durability based on specific application needs.

Technical Parameters:

Applications:

The use of automated assembly lines has revolutionized manufacturing processes by incorporating various mechanical movements. These include flipping workpieces, rotating fixtures, and indexing stations to ensure efficient and precise assembly.

In the field of material handling, rotary grippers attached to manipulators play a crucial role. Additionally, diverting mechanisms are commonly employed to sort materials effectively, enhancing workflow and productivity.

The packaging industry benefits greatly from automation technologies such as cap screwing, material redirection, and accurate carton positioning. These automated functions streamline packaging operations, improving speed and consistency.

Machine tools and processing equipment also incorporate automation features like jig rotation and angle switching of clamping units. These capabilities allow for greater flexibility and precision during manufacturing and processing tasks.

Robotics applications frequently utilize small rotary joints and angular positioning systems. These components enable robots to perform complex movements with high accuracy, expanding their range of functionality.

In automotive automation, the manipulation of parts often involves clamping and rotation to prepare components for assembly or testing. Swing motions are also employed in test stations to facilitate comprehensive evaluation of automotive parts.

Light industry automation utilizes conveyor stoppers, direction changes, and material sorting mechanisms. These systems help maintain order and efficiency on production lines by controlling the movement and distribution of materials.

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, users can refer to the detailed installation and operation manuals provided with the product. The manuals include guidelines on mounting, air supply requirements, maintenance procedures, and troubleshooting tips to ensure optimal functionality.

We offer comprehensive services including product selection assistance, custom configurations, and after-sales support to help you maximize the benefits of your pneumatic cylinder. Our technical team is equipped to provide expert advice on integration with existing systems, performance optimization, and resolving any technical issues that may arise during operation.

Regular maintenance is recommended to extend the lifespan of the piston pneumatic cylinder. This includes periodic inspection of seals, lubrication of moving parts, and checking for air leaks. Replacement parts and accessories are available to support ongoing maintenance and repairs.

For enhanced support, training sessions and detailed technical documentation can be provided upon request, ensuring that your team is well-equipped to operate and maintain the pneumatic cylinder effectively.

Packing and Shipping:

Product Packaging and Shipping for Piston Pneumatic Cylinder

Each piston pneumatic cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam or bubble wrap to prevent any surface damage. It is then placed in a sturdy cardboard box with additional cushioning materials such as foam inserts or air pillows to minimize movement inside the box.

The packaging is designed to withstand shocks, vibrations, and moisture exposure during shipping. All boxes are clearly labeled with handling instructions, product details, and shipping information for easy identification.

For bulk orders, cylinders are packed in custom-sized cartons or crates, with each unit securely separated to avoid contact and potential damage. Palletizing is done using stretch wrap and corner protectors to ensure stability throughout the shipping process.

We offer multiple shipping options including standard ground, expedited air freight, and international shipping. Tracking information is provided once the order has been dispatched, enabling customers to monitor their shipment in real time.

Our commitment to quality packaging and reliable shipping ensures that your piston pneumatic cylinders arrive safely and ready for immediate use.
