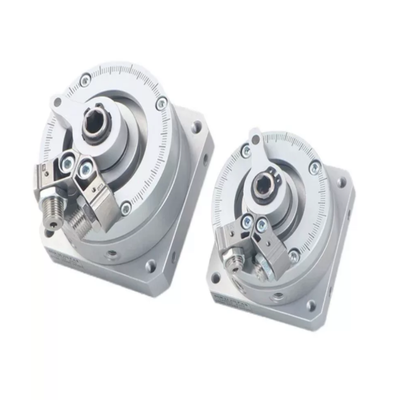

FESTO DSM-32-270-P-A-B Rotary Vane Actuator Semi-Rotary Drive with 270° Swivel Angle and Proximity Switch Mounting

Product Description:

The FESTO DSM series consists of double-acting vane type semi-rotary actuators. These actuators utilize compressed air to drive the rotary vane, enabling precise angular rotation.

The swivel angle can be infinitely adjusted throughout the entire range, reaching up to 270°. Additionally, fixed metal stops are incorporated to ensure high positioning accuracy during operation.

There are various options available, including multiple cushioning variations, different shaft types, and diverse mounting styles. The modular design also supports position sensing through the use of proximity switches.

Certain models within the DSM series meet the ATEX explosion-proof certification, making them suitable for hazardous environments. For applications requiring greater torque, the tandem vane version offers up to 80 Nm of torque.

Featuring a compact body that is both splash-proof and dust-proof, these actuators are widely utilized for tasks such as rotating, flipping, indexing, and precise positioning in automated production lines.

Features:

The vane features a double-acting structure, allowing for an infinitely adjustable swivel angle across the entire range. This design facilitates easy and precise fine-tuning of the angle to meet specific requirements.

Equipped with a fixed metal stop, the stop position remains consistently stable even under load. This ensures excellent repeatability and high positioning accuracy during operation.

There are multiple cushioning options available to suit various impact loads. These include an elastic cushion, an adjustable elastic cushion, and a hydraulic shock absorber, providing versatility for different applications.

Technical Parameters:

This Aluminum alloy pneumatic rotary cylinder is a FESTO DSM swing cylinder, also known as a pneumatic semi rotary cylinder, designed for versatile industrial applications.

Applications:

In the realm of automated assembly lines, various rotary mechanisms play crucial roles such as flipping workpieces, rotating fixtures, and indexing stations. These motions help in enhancing operational efficiency and precision during the manufacturing process.

Material handling systems often employ rotary grippers attached to manipulators that facilitate the secure grasp and movement of parts. Additionally, diverting mechanisms are used for sorting items effectively, enabling streamlined workflow in distribution and production lines.

Within the packaging industry, rotary technologies are widely utilized for tasks like cap screwing, redirecting materials on conveyor belts, and accurately positioning cartons for filling or sealing. These functions contribute to the high-speed and reliable packaging of products.

Machine tools and processing equipment rely on rotary elements such as jigs that can rotate and clamping units capable of switching angles. These features assist in accommodating different machining operations and improving the flexibility of manufacturing systems.

In the field of robotics, small rotary joints and precise angular positioning mechanisms are essential components. They enable robots to perform complex movements and tasks with high accuracy, expanding the range of possible automation applications.

Automotive automation benefits from components that allow parts to be clamped and rotated securely. Swing motion systems for test stations are also implemented to simulate different conditions and ensure the quality of automotive parts.

Light industry automation incorporates rotary mechanisms such as conveyor stoppers, devices for changing the direction of items, and equipment for sorting materials. These elements optimize production lines by managing material flow efficiently.
