Product Description:

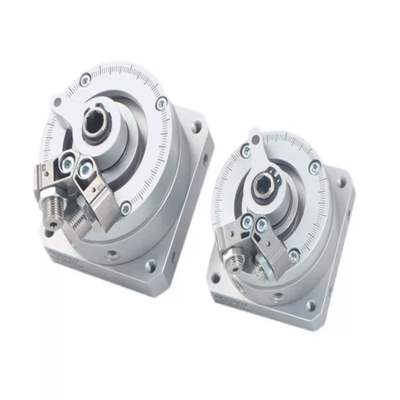

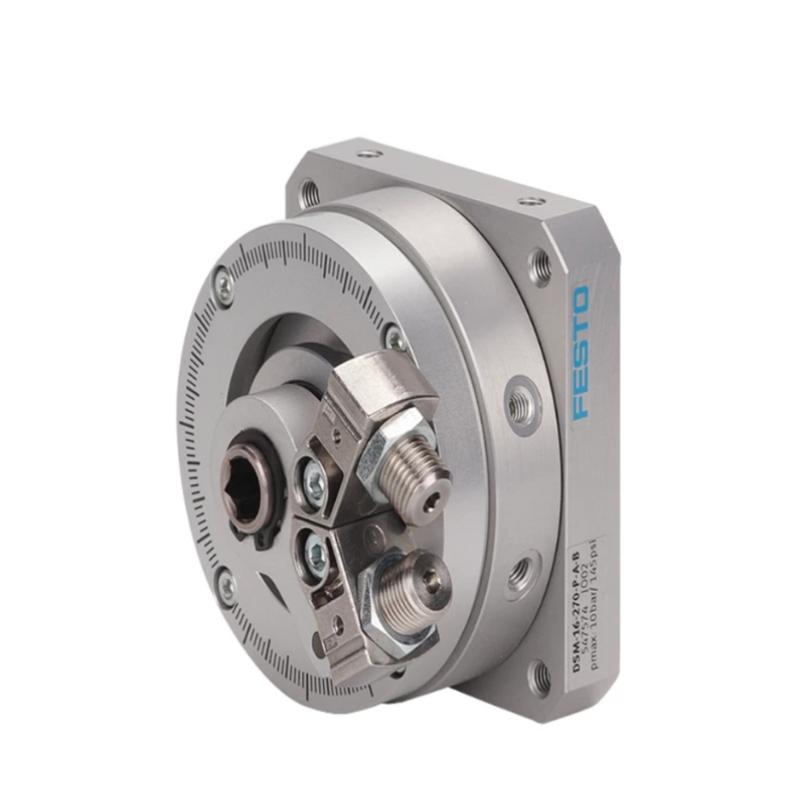

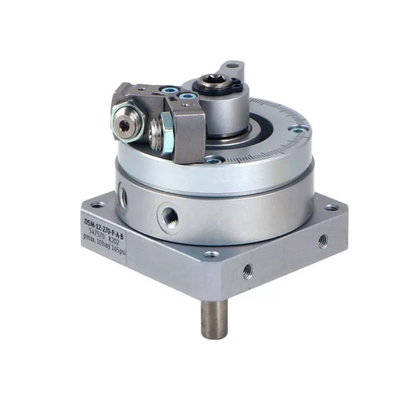

The FESTO DSM series consists of double-acting, vane-type semi-rotary actuators. These devices operate by using compressed air to drive a rotary vane, enabling angular rotation. The swivel angle can be adjusted infinitely throughout the entire range, reaching up to 270 degrees.
Designed with fixed metal stops, the actuator ensures high positioning accuracy during operation. It offers a variety of cushioning options, shaft types, and mounting styles to suit different application needs. The modular design also supports position sensing by integrating proximity switches.
Select models of the DSM series meet the ATEX explosion-proof standards, making them suitable for use in hazardous environments. Additionally, the tandem vane variant provides increased torque, delivering up to 80 Newton-meters for more demanding applications.
Featuring a compact and robust body, the actuator is both splash-proof and dust-proof. Its versatility makes it ideal for tasks such as rotating, flipping, indexing, and positioning within automated production lines.
Features:
The vane double-acting structure allows for an infinitely adjustable swivel angle across the entire range, enabling precise fine-angle adjustments with ease.
Equipped with a fixed metal stop design, the stop position remains stable even under load, ensuring excellent repeat positioning accuracy.
Various cushioning options are available to suit different impact loads, including elastic cushions, adjustable elastic cushions, and hydraulic shock absorbers.
Technical Parameters:
| Mode of operation |
Double-acting |
| Size |
25 |
| Swivel angle |
0° - 270° |
| Ambient temperature |
-10 °C ... 60 °C |
| Mounting position |
Any |
| Structural design |
Rotary Vane |
Applications:
Automated Assembly Lines
In automated assembly lines, operations such as workpiece flipping, fixture rotation, and station indexing play a crucial role in enhancing efficiency and accuracy. These processes ensure seamless handling and precise positioning of components throughout the production cycle.
Material Handling
Material handling systems often utilize rotary grippers attached to manipulators along with diverting mechanisms designed for sorting purposes. These technologies enable smooth and reliable movement and organization of materials within various industrial environments.
Packaging Industry
The packaging sector benefits from automation techniques such as cap screwing, material redirection, and carton positioning. These automated tasks streamline packaging lines, improving speed and consistency in product handling.
Machine Tools and Processing Equipment
Machine tools and processing equipment incorporate functions like jig rotation and angle switching of clamping units. Such capabilities contribute to flexible machining processes by allowing adjustment and repositioning of workpieces with ease.
Robotics
Within robotics, small rotary joints and angular positioning mechanisms are essential for achieving precise movement and control. These components enable robots to perform complex tasks with high levels of accuracy.
Automotive Automation
In the automotive industry, automation includes operations such as parts clamping and rotation, as well as swing motions used in testing stations. These functions assist in efficient assembly processes and quality assurance.
Light Industry Automation
Automation in light industries typically involves conveyor stoppers, direction changes, and material sorting mechanisms. These tools help maintain smooth workflow and sorting accuracy in smaller-scale manufacturing setups.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for high performance and durability in various industrial applications. For technical support, please ensure you have the model number and specifications ready to facilitate efficient assistance.
If you encounter any issues with the Piston Pneumatic Cylinder, first refer to the user manual for troubleshooting tips and maintenance guidelines. Regular maintenance, including lubrication and inspection of seals and piston rods, is essential to ensure optimal performance and longevity.
For installation, make sure the cylinder is mounted securely and aligned properly to avoid undue stress or wear. Use the recommended fittings and avoid exceeding the specified pressure limits.
Our technical support team can provide guidance on selecting the right cylinder size and type for your application, as well as advice on integration with existing pneumatic systems.
We also offer maintenance services and replacement parts to keep your pneumatic cylinders operating efficiently. Regular servicing by certified technicians is recommended to prevent unexpected downtime and extend the life of your equipment.
For more detailed technical documentation, including CAD drawings, performance charts, and installation instructions, please refer to the product resources available on our website.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder

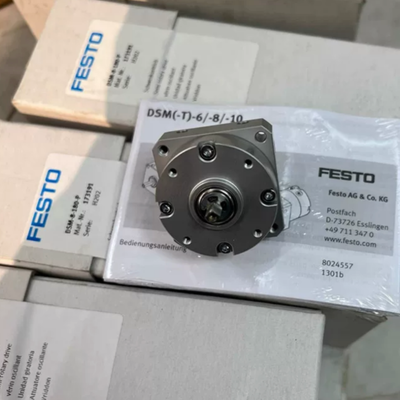

Each piston pneumatic cylinder is carefully packaged to ensure protection during transit. The cylinder is first wrapped in anti-static foam or bubble wrap to prevent any surface damage or scratches. It is then placed in a custom-fitted cardboard box to minimize movement inside the package.
For additional protection, the boxed cylinder is placed inside a sturdy outer carton with cushioning materials such as foam peanuts or air pillows to absorb shocks. All packaging materials used are environmentally friendly and recyclable.
Shipping options include standard ground shipping, expedited air freight, and international courier services. Each shipment is labeled with handling instructions, including “Fragile” and “Handle with Care” to ensure proper treatment during transit.
Tracking information is provided once the shipment is dispatched, allowing customers to monitor their order until delivery. We ensure timely delivery and safe arrival of all piston pneumatic cylinders to meet customer satisfaction.
