Product Description:

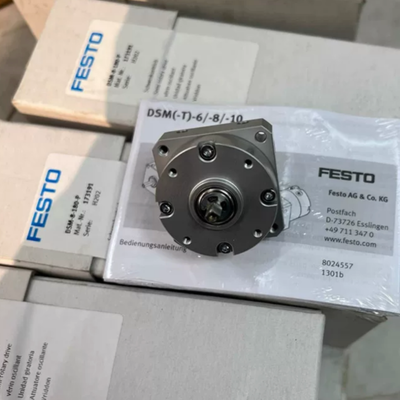

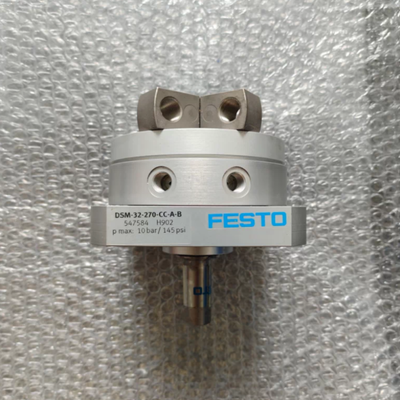

The FESTO DSM series is a double-acting, vane-type semi-rotary actuator. It operates by using compressed air to drive the rotary vane, enabling precise angular rotation. This allows for smooth and controlled motion, making it suitable for various industrial applications.
One of the standout features of this actuator is its infinitely adjustable swivel angle, which can be set anywhere within a full range of up to 270°. To ensure high positioning accuracy, it comes equipped with fixed metal stops. Additionally, users can choose from multiple cushioning options, different shaft types, and a variety of mounting styles to best suit their operational needs.
Designed with a modular structure, the FESTO DSM series supports position sensing through the integration of proximity switches. Certain selected models meet the ATEX explosion-proof standards, making them suitable for use in hazardous environments. For applications requiring greater torque, the tandem vane version can deliver up to 80 Nm.
The compact design of the actuator’s body is both splash-proof and dust-proof, ensuring durability and reliability in demanding conditions. Its versatility makes it widely used for tasks such as rotating, flipping, indexing, and positioning within automated production lines.
Features:
The vane features a double-acting structure, allowing for an infinitely adjustable swivel angle across the entire range. This design makes it simple to perform precise fine-angle adjustments with ease.
Incorporating a fixed metal stop design ensures that the stop position remains stable even under various load conditions. This results in excellent repeat positioning accuracy, enhancing overall performance reliability.
There are multiple cushioning options available to suit different impact load requirements. These include elastic cushions, adjustable elastic cushions, and hydraulic shock absorbers, providing versatile solutions for various applications.
Technical Parameters:
| Product Name |
FESTO DSM swing cylinder |
| Type |
Automation indexing cylinder |
| Material |
Aluminum alloy pneumatic rotary cylinder |
| Ambient Temperature |
-10 °C ... 60 °C |
| Mounting Position |
Any |
| Mode of Operation |
Double-acting |
| Size |
16 |
| Structural Design |
Rotary Vane |
| Swivel Angle |
0 Deg - 270 Deg |
Applications:
Automated Assembly Lines
In automated assembly lines, processes such as workpiece flipping, fixture rotation, and station indexing are essential operations that enhance efficiency and precision in manufacturing.
Material Handling
Material handling systems utilize rotary grippers on manipulators along with diverting mechanisms designed for sorting tasks, ensuring smooth and accurate movement of components.
Packaging Industry
The packaging sector makes extensive use of automation for tasks like cap screwing, redirecting materials, and positioning cartons to streamline the packaging workflow.
Machine Tools and Processing Equipment
Automation in machine tools involves functions such as jig rotation and switching the angles of clamping units to facilitate various machining processes with improved flexibility.
Robotics
In robotics, small rotary joints and angular positioning mechanisms are critical components that enable precise and flexible movement.
Automotive Automation
The automotive industry benefits from automation through parts clamping and rotation, as well as swing motions utilized in test stations to enhance production accuracy and efficiency.
Light Industry Automation
In light industry, automation solutions include conveyor stoppers along with systems for changing directions and sorting materials to optimize production lines.
