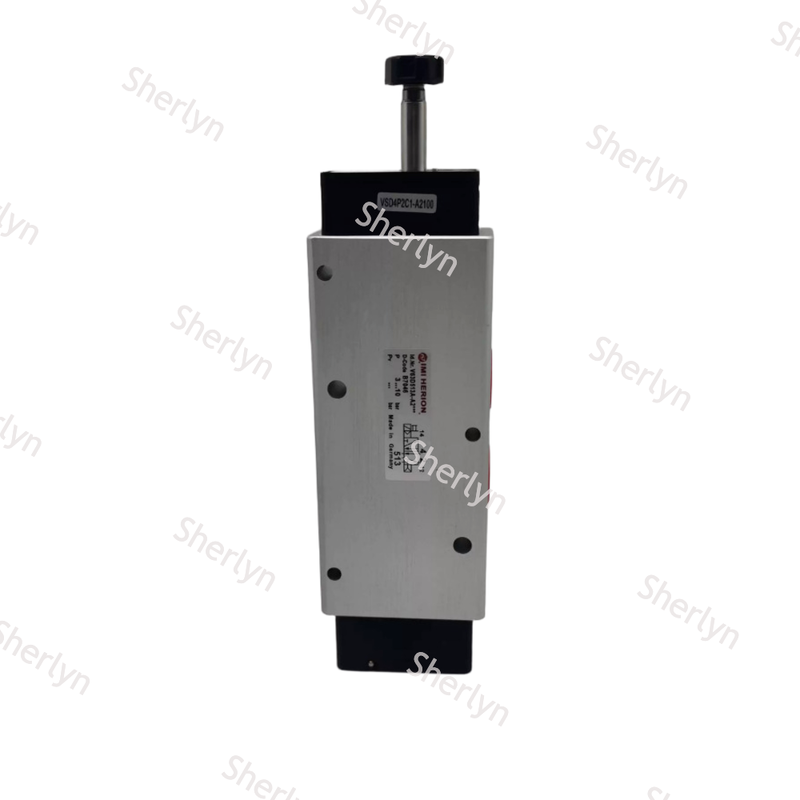

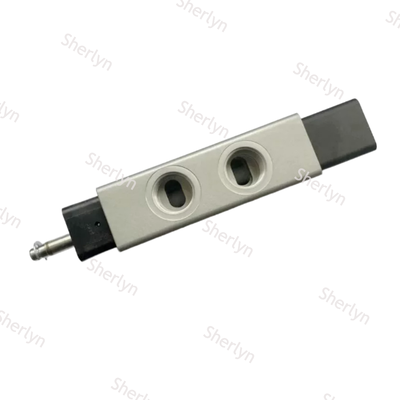

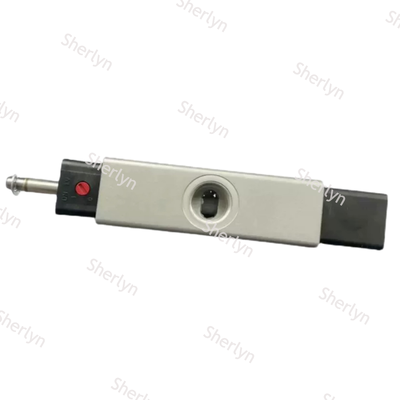

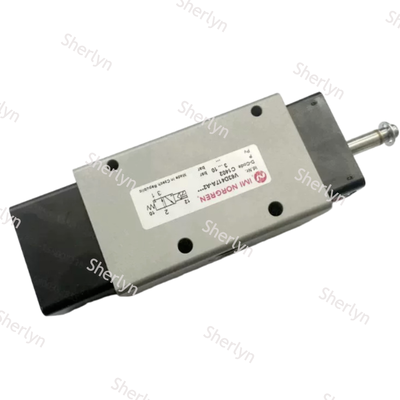

Industrial Pneumatic 5/2 Way Pilot Solenoid Valve V63D513A-A213J, NORGREN V63 Single Solenoid Spring Return Valve

Product Description:

The NORGREN V63 series 5/2 single solenoid pilot operated solenoid valve (spring return) is part of the XF inline pilot directional control valve family. This valve features a spring return design, allowing the main spool to shift according to the pilot air signal. When the power is turned off, the spool automatically resets to its original position.

Equipped with a G1/2 port and offering high flow capacity, the valve supports both internal and external pilot supply options. Its construction includes a die-cast aluminium body combined with NBR seals, making it suitable for use with filtered, lubricated, or non-lubricated compressed air systems.

The modular manifold base system provides flexible mounting solutions, enhancing installation convenience. Due to its robust design and reliable performance, the NORGREN V63 series valve is widely utilized for controlling double-acting cylinders in various industrial automation applications.

Features:

The solenoid valve features a single solenoid design with spring return and pilot actuation. It operates with a low power coil rated at 2 watts, which helps minimize heat generation. This makes it suitable for direct control by PLC systems, ensuring efficient and reliable operation.

Constructed with a die-cast aluminium body, the valve offers excellent corrosion resistance, enhancing its durability. It incorporates a proven, reliable sealing system that requires no maintenance, contributing to a long service life.

The valve is equipped with a standard G thread, making it compatible with commonly used pneumatic piping systems. Additionally, it supports modular manifold bases, allowing easy integration for multi-valve assemblies in complex installations.

Technical Parameters:

Applications:

The V63 5/2 single solenoid pilot valve is primarily designed to control the extension and retraction of double-acting cylinders. This valve plays a critical role in various pneumatic systems by managing the flow of air to achieve precise movement.

It finds extensive use in a wide range of industrial applications. Among these, automatic assembly machines, pneumatic clamps, and fixtures rely heavily on this valve for efficient operation. Additionally, it is commonly utilized in packaging machinery, filling machines, as well as palletizing and conveyor lines.

The automotive industry also benefits from this valve through its implementation in production lines, welding jigs, and spraying equipment. Moreover, it supports textile machinery, woodworking machines, and machine tool pneumatic systems by ensuring reliable and accurate control.

Beyond manufacturing equipment, the valve is also employed in material handling systems, sorting lines, and mechanisms involved in lifting and positioning. Its versatility extends to sectors such as water treatment, HVAC systems, and pneumatic circuits within the food and light industries.

Support and Services:

Norgren is committed to providing comprehensive technical support and services for our Solenoid Valve products to ensure optimal performance and customer satisfaction. Our expert team is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice. We offer detailed product documentation, including datasheets, installation manuals, and application notes to support your needs.

For any technical inquiries, our specialists can provide assistance with valve configuration, compatibility, and integration into your systems. We also provide training resources and workshops to help you maximize the efficiency and reliability of your Norgren Solenoid Valves.

In addition, Norgren offers repair and refurbishment services to extend the life of your solenoid valves, as well as customized solutions tailored to specific application requirements. Our commitment is to deliver high-quality support that helps you maintain continuous and efficient operation of your pneumatic systems.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is enclosed in a sturdy, custom-designed box with protective padding to prevent damage from shocks and vibrations. The packaging materials are chosen to safeguard the product from moisture, dust, and other environmental factors.

For shipping, the packaged solenoid valves are placed in larger cartons or crates depending on the order size. All shipments are handled with care and labeled appropriately to indicate fragile contents. Norgren partners with reliable logistics providers to ensure timely and safe delivery to customers worldwide.

Special packaging options are available upon request for bulk orders or specific shipping requirements, including anti-static materials and temperature-controlled packaging to maintain product integrity.
