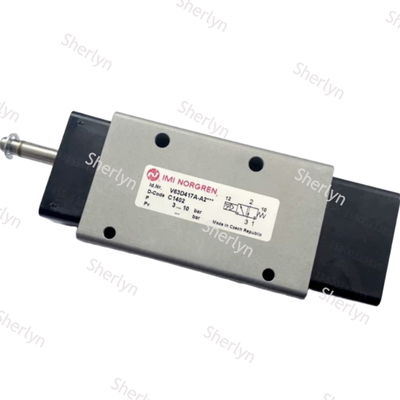

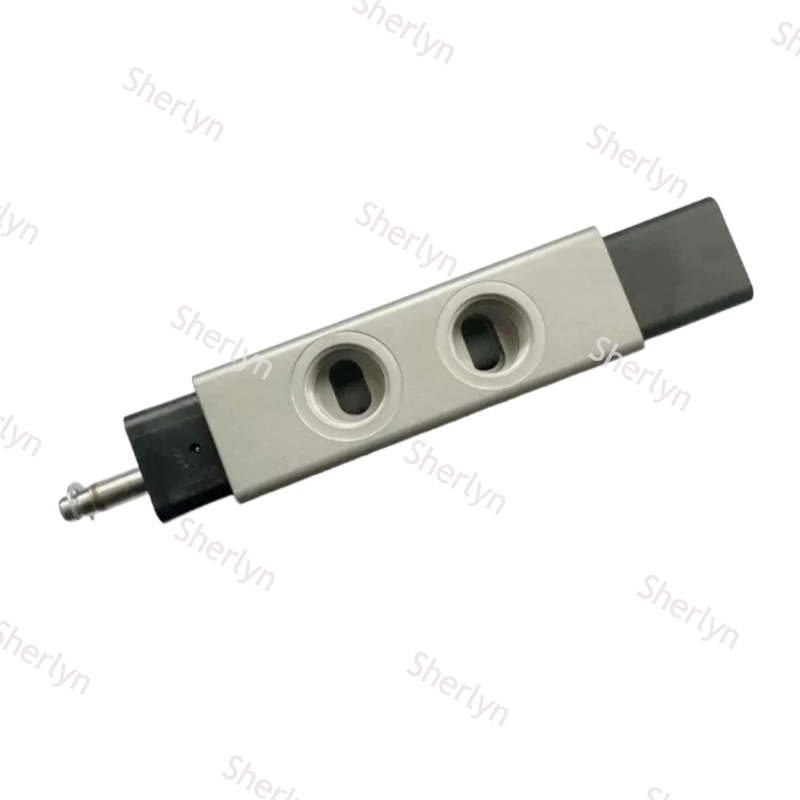

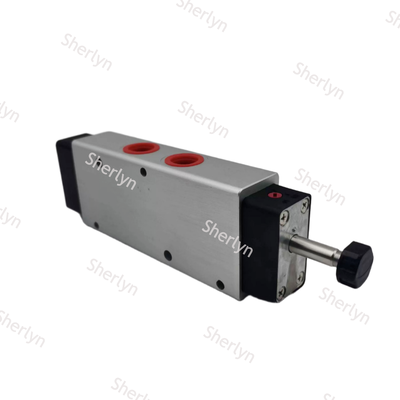

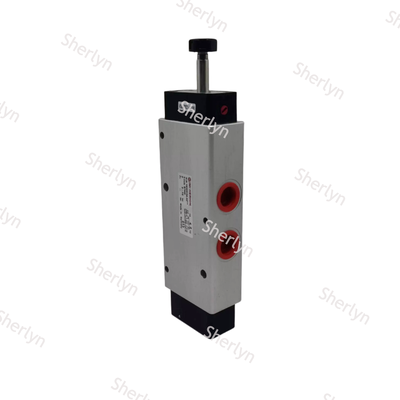

G1/2 Port 5/2 Way Pilot Valve V63D513A-A212J, NORGREN V63 Single Solenoid Pneumatic Solenoid Valve

Product Description:

The NORGREN V63 series 5/2 single solenoid pilot operated solenoid valve features a spring return mechanism and is part of the XF inline pilot directional control valve family. This valve utilizes a spring return design, ensuring reliable operation and automatic reset functionality.

The main spool within the valve shifts in response to a pilot air signal and returns to its original position automatically when the power is turned off. Equipped with a G1/2 port and designed for high flow capacity, the valve can accommodate either internal or external pilot air supply options, enhancing its versatility.

Constructed with a die-cast aluminium body and fitted with NBR seals as standard, the valve is suitable for use with filtered compressed air, whether lubricated or non-lubricated. Additionally, the modular manifold base system allows for flexible and convenient mounting configurations.

This solenoid valve is extensively employed in industrial automation applications, particularly for controlling double-acting cylinders, thanks to its robust design and reliable performance.

Features:

This valve features a single solenoid design with spring return and pilot actuation, ensuring efficient and reliable operation. It is equipped with a low power coil consuming only 2 watts, which minimizes heat generation and makes it suitable for direct control by PLC systems.

The body is constructed from die-cast aluminium, providing excellent corrosion resistance for enhanced durability. It incorporates a proven, reliable sealing system that requires no maintenance, thereby guaranteeing a long service life under various operating conditions.

Designed with a standard G thread, this valve is compatible with commonly used pneumatic piping systems. Additionally, it includes a modular manifold base that supports multi-valve integrated installations, allowing for flexible and scalable configurations.

Technical Parameters:

This indirect solenoid valve is part of the NORGREN Stainless steel pilot explosion-proof solenoid valve series, providing reliable and safe operation in demanding conditions.

Applications:

The V63 5/2 single solenoid pilot valve is primarily designed for controlling the extension and retraction of double-acting cylinders. Its reliable operation makes it an essential component in various pneumatic systems.

This valve finds widespread use in automatic assembly machines, as well as in pneumatic clamps and fixtures. Its precise control capabilities contribute significantly to the efficiency of these applications.

In addition, the V63 5/2 valve is commonly employed in packaging machinery, filling machines, palletizing systems, and conveyor lines, where consistent and accurate movement is crucial for productivity.

The automotive industry benefits from this valve through its integration in production lines, welding jigs, and spraying equipment, ensuring smooth and dependable pneumatic operations.

Furthermore, it is utilized in textile machinery, woodworking machines, and machine tool pneumatic systems, supporting various manufacturing and machining processes.

Other typical applications include material handling, sorting lines, lifting and positioning mechanisms, as well as pneumatic circuits in water treatment, HVAC systems, and the food and light industries.

Support and Services:

Norgren is committed to providing comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our expert team offers assistance in product selection, installation guidance, troubleshooting, and maintenance advice tailored to your specific application requirements.

We provide detailed product documentation, including datasheets, installation manuals, and technical specifications, to help you understand the features and capabilities of our solenoid valves. Additionally, our support team is available to answer technical queries and provide solutions to any operational challenges you may encounter.

For maintenance and repair, Norgren offers authorized service centers equipped to handle product inspections, repairs, and replacements using genuine parts to maintain product integrity and reliability. We also provide training sessions and workshops to enhance your team's knowledge and skills in handling and maintaining Norgren solenoid valves effectively.

By choosing Norgren solenoid valves, you benefit from a global network of technical support and after-sales services designed to maximize your system’s uptime and efficiency.
