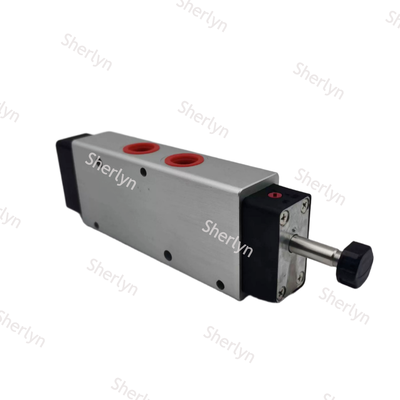

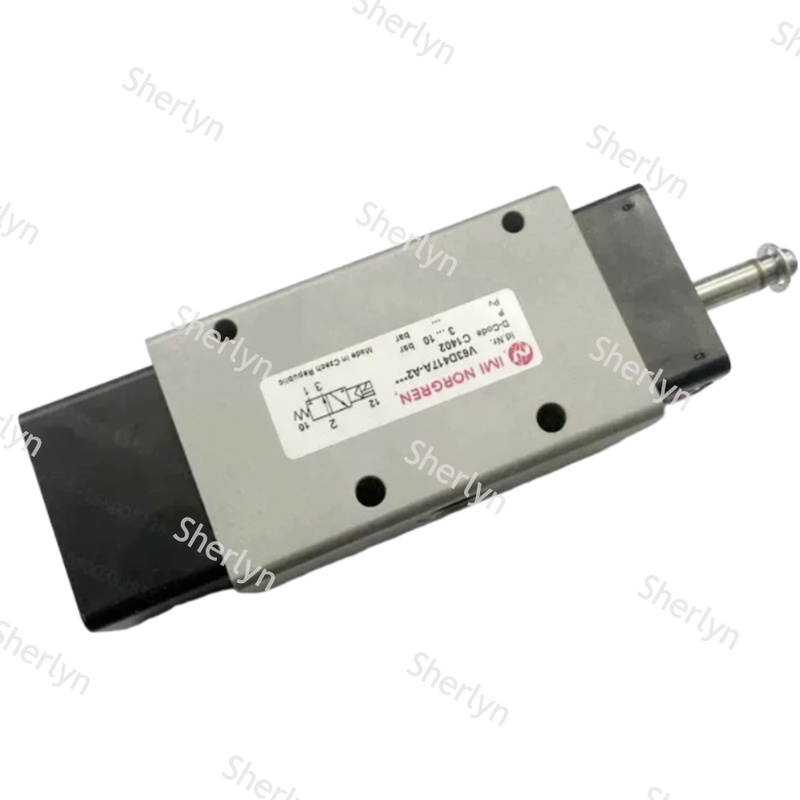

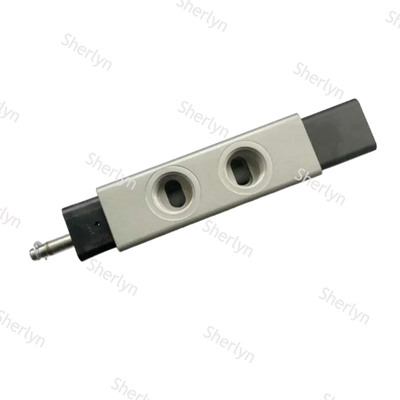

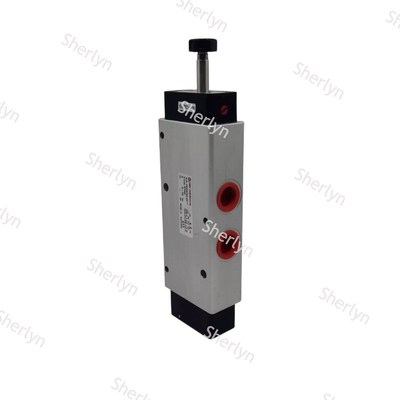

IMI NORGREN V63D517A-A212J V63 Series 5/2 Way Single Solenoid Pilot Pneumatic Directional Control Valve

Product Description:

The NORGREN V63 series 5/2 single solenoid pilot operated solenoid valve with a spring return mechanism is part of the XF inline pilot directional control valve family. This valve features a spring return design, ensuring that the valve returns to its original position automatically when power is turned off.

The operation of the main spool is controlled by a pilot air signal, which causes it to shift accordingly. Once the power supply is interrupted, the spring mechanism resets the spool to its default position without external intervention. The valve is equipped with a G1/2 port and offers high flow capacity, making it versatile for various applications. It can be used with either internal or external pilot air supply, providing flexibility in system design.

Constructed with a die-cast aluminium body and NBR seals as standard components, this valve is well-suited for use with filtered, lubricated, or non-lubricated compressed air. The modular manifold base system allows for flexible and convenient mounting options. Due to its reliable performance and adaptability, the NORGREN V63 series valve is widely utilized for controlling double-acting cylinders in industrial automation settings.

Features:

This valve features a single solenoid design with spring return and pilot actuation, ensuring efficient and reliable operation. It utilizes a low power coil rated at 2 watts, which minimizes heat generation and allows for direct control by PLC systems.

The body is made from die-cast aluminum, offering excellent corrosion resistance and durability. Equipped with a proven, reliable sealing system, the valve is maintenance-free and built to provide a long service life.

Designed with a standard G thread, it is fully compatible with common pneumatic piping systems. Additionally, the modular manifold base supports integrated installation of multiple valves, enhancing system flexibility and ease of maintenance.

Technical Parameters:

Applications:

The V63 5/2 single solenoid pilot valve is primarily designed for controlling the extension and retraction of double-acting cylinders. This valve is essential in various industrial automation applications where precise and reliable pneumatic actuation is required.

Its typical uses include automatic assembly machines as well as pneumatic clamps and fixtures. It also plays a crucial role in packaging machinery, filling equipment, palletizing systems, and conveyor lines, ensuring smooth and efficient operation across these processes.

In addition, the valve is widely employed in automotive production lines, welding jigs, and spraying apparatus. It is equally important for textile machinery, woodworking equipment, and pneumatic systems used in machine tools, highlighting its versatility across different manufacturing fields.

Furthermore, the V63 valve is utilized in material handling, sorting lines, and mechanisms involving lifting and positioning. Its application extends to industries such as water treatment, HVAC systems, and the food and light industrial sectors, where reliable pneumatic control is essential.
