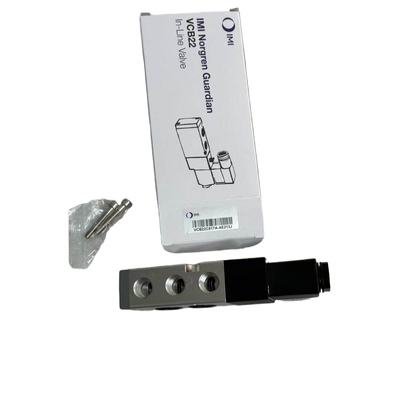

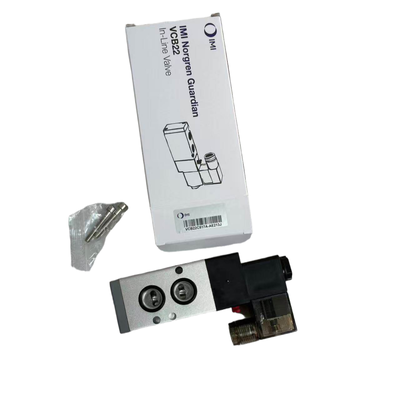

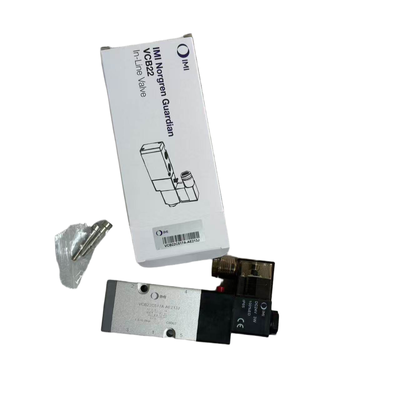

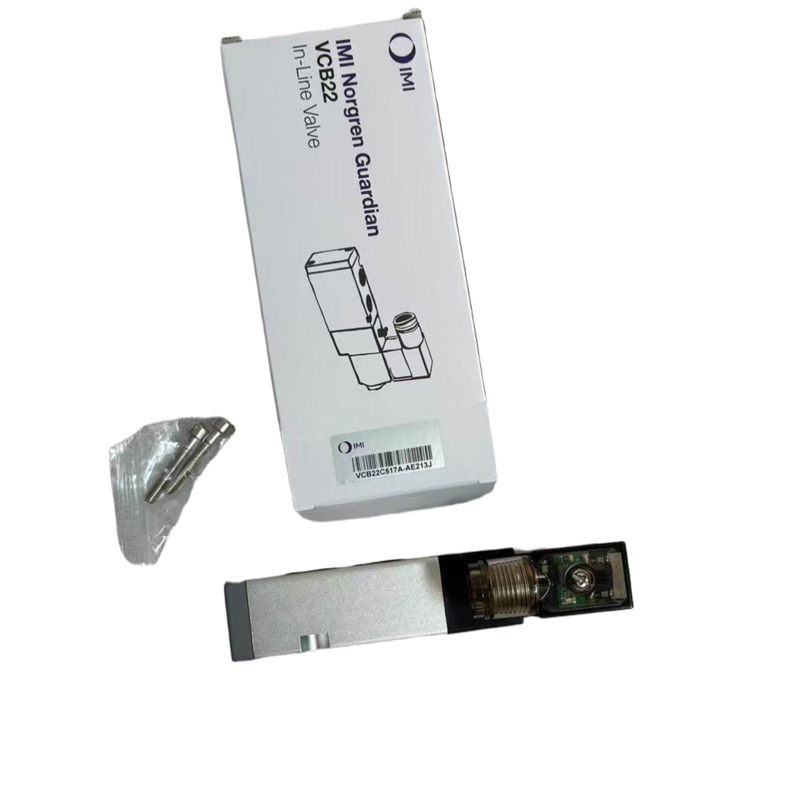

Product Description:
The IMI Norgren VCB22 Series is a high-performance solenoid-actuated spool valve designed to provide 3/2, 5/2, and 5/3 directional control functions. It is suitable for a broad spectrum of industrial pneumatic automation tasks, delivering reliable and efficient operation across various applications.
Constructed with a compact aluminum housing, the VCB22 Series includes standard LED indicator lights for easy status monitoring. It features an internal pilot air supply and supports flow rates ranging from 245 to 3350 liters per minute, making it adaptable to both miniature pneumatic circuits and high-flow requirements.
The series is available in four valve widths—18mm, 22mm, 27mm, and 34mm—with corresponding port sizes including M5, G1/8, G1/4, G3/8, and G1/2. Additionally, it offers NAMUR mounting options and a sub-base system, facilitating straightforward assembly and maintenance of manifolds.
Due to its versatility and robust design, the VCB22 Series is extensively utilized in various industries such as packaging machinery, automotive manufacturing, food and beverage production, textile equipment, chemical processing, and general industrial automation.
Features:
Experience the reliability of Genuine IMI Norgren industrial solenoid valves, a brand known for its trusted quality in the industry. These valves come in various directional control configurations, including 3/2, 5/2, and 5/3 options, catering to diverse application needs.
They are offered in four valve widths to suit different installation requirements: 18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D). Along with this, there is a wide range of port options available such as M5, G1/8, G1/4, G3/8, and G1/2, as well as specialized NAMUR G1/4 and G3/8 ports for flexible connectivity.
These valves boast a high flow capacity , ranging from 245 to 3350 liters per minute at 6 bar inlet pressure with a 1 bar pressure drop, ensuring efficient performance under demanding conditions. An LED indicator light is standard on all models, providing a clear and convenient display of power status.
Designed for ease of use, the valves include a push and turn to lock manual override , facilitating straightforward commissioning and maintenance. They feature a 100% continuous duty rating , making them suitable for prolonged operation without compromising reliability.
Built to withstand tough environments, these solenoid valves come with an IP65 protection class , ensuring resistance to dust and water ingress. The aluminum housing offers a lightweight yet durable construction, complemented by NBR seals optimized for compressed air service.
Installation is simplified thanks to a sub-base mounting system that eases piping and allows for efficient manifold assembly. These valves require an internal pilot air supply , eliminating the need for external pilot lines and reducing complexity.
Versatility in electrical performance is assured with a ±10% voltage tolerance , accommodating typical industrial power fluctuations. Customers can choose between single solenoid (spring return) or double solenoid configurations to best suit their system needs.
For the 5/3 directional control valves, three center functions are available: All Ports Blocked (APB) , Center Open Exhaust (COE) , and Center Open Pressure (COP) , providing additional flexibility for various pneumatic circuit designs.
Technical Parameters:
| Operating Pressure |
1.5 To 8 Bar |
| Brand |
IMI Norgren |
| Valve Type |
Solenoid Actuated Spool Valve |
| Medium |
Compressed Air, Filtered To 40 μm, Lubricated Or Non-lubricated |
| Pilot Supply |
Internal |
| Functions |
3/2 NO, 3/2 NC, 5/2, 5/3 APB, 5/3 COE, 5/3 COP |
| Flow Rate |
245 To 3350 L/min |
| Voltage Options |
24VDC, 24VAC, 110VAC, 220VAC, 240VAC |
| Series |
VCB22 |
| Ambient/Media Temp. |
-5°C To +70°C |
Applications:
The Norgren VCB22 series solenoid valves find extensive application across various industrial sectors due to their reliability and precision.
In the field of Packaging Machinery , these valves are utilized for pneumatic actuation control in processes such as food packaging, carton forming, and filling lines. They help ensure smooth and efficient operation throughout the packaging workflow.
Within Automotive Manufacturing , the VCB22 series valves are employed for air circuit switching in welding fixtures, assembly lines, and robotic workcells, enhancing automation and process control.
The Food and Beverage industry leverages these solenoid valves for automated control in filling equipment, labeling machines, and sorting systems, contributing to improved productivity and accuracy.
For Textile Machinery , these valves provide pneumatic drive capabilities for looms, dyeing equipment, and fabric handling lines, ensuring precise and reliable operations.
In the Chemical and Pharmaceutical sectors, the valves play a critical role in pneumatic isolation within process control fluid circuits, though it is important to verify media compatibility before use.
The Electronics and Semiconductor industry benefits from the VCB22 series through precision pneumatic control in cleanroom equipment, PCB assembly, and inspection systems, which demand high standards of cleanliness and accuracy.
Across General Industrial Automation , these solenoid valves facilitate directional control for activities such as machine loading and unloading, conveyor systems, lifts, and rotary tables, supporting a wide range of automated processes.
They are also suitable for NAMUR Applications , where they can be directly mounted on pneumatic actuators like cylinders and control valves following the NAMUR standard, ensuring compatibility and ease of integration.
Finally, the Norgren VCB22 valves are designed for use in Manifold Systems , enabling a multi-valve centralized setup via sub-bases for optimized and integrated piping solutions.
