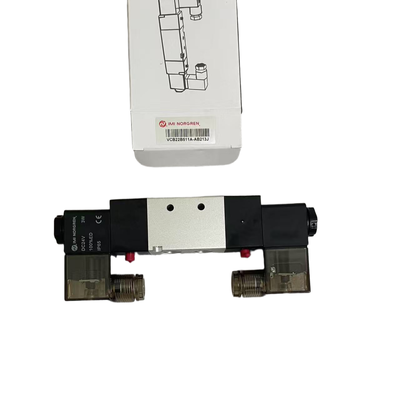

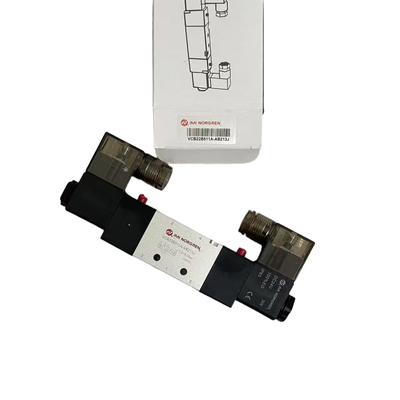

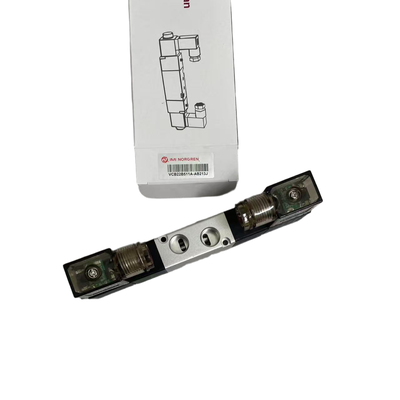

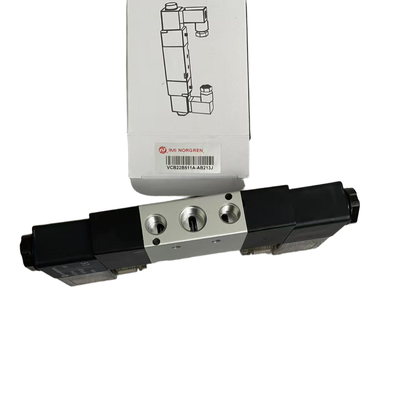

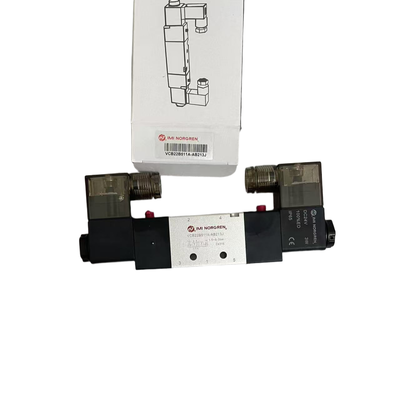

G1/4 AC220V Double Directional Valve VCB22B511A-AB219J NORGREN 5/2 Pneumatic Solenoid Valve for Textile Machinery Dual Coil

Product Description:

The IMI Norgren VCB22 Series represents a high-performance solenoid actuated spool valve designed to deliver 3/2, 5/2, and 5/3 directional control functions. It is suitable for a broad spectrum of industrial pneumatic automation applications, ensuring reliable and efficient operation in various settings.

This series features a compact aluminum housing that incorporates standard LED indicator lights for easy status monitoring. It also includes an internal pilot air supply and supports flow rates ranging from 245 to 3350 liters per minute. These capabilities allow the VCB22 series to meet pneumatic circuit demands from small-scale to high-flow requirements.

The VCB22 valves are available in four different widths: 18mm, 22mm, 27mm, and 34mm. They offer multiple port sizes, including M5, G1/8, G1/4, G3/8, and G1/2, along with NAMUR mounting options. Additionally, the series supports a sub-base system which facilitates easy manifold assembly and ongoing maintenance.

Due to their versatility and robust design, VCB22 valves are extensively employed in various industries. Common applications include packaging machinery, automotive manufacturing, food and beverage production, textile equipment, chemical processing, and general industrial automation tasks.

Features:

Our solenoid valves come from the trusted IMI Norgren brand, renowned for their industrial-grade quality and reliability. These valves are designed to meet demanding industrial applications with performance and durability.

They are available in multiple directional control configurations, including 3/2, 5/2, and 5/3, to accommodate various pneumatic circuit requirements.

Choose from four different valve widths: 18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D). Comprehensive port options are also offered, such as M5, G1/8, G1/4, G3/8, G1/2, in addition to NAMUR-standard ports G1/4 and G3/8, providing flexibility for diverse piping setups.

These valves deliver impressive high flow rates ranging from 245 to 3350 liters per minute at 6 bar inlet pressure with a 1 bar pressure drop. A built-in LED indicator light allows clear visualization of the power status, enhancing operational convenience.

The innovative push-and-turn manual override mechanism makes commissioning and maintenance tasks straightforward, while the 100% continuous duty rating ensures reliable operation even during extended use.

Constructed with a lightweight yet sturdy aluminum housing, the valves feature NBR seals specifically designed for compressed air applications. The IP65 protection class makes them suitable for harsh industrial environments, safeguarding against dust and water ingress.

A sub-base mounting system simplifies piping work and allows easy manifold assembly, streamlining the installation process. The internal pilot air supply design eliminates the need for an external pilot source.

Voltage tolerance of ±10% ensures the valves can handle typical industrial power fluctuations without compromising performance.

The valves are available as either single solenoid (spring return) or double solenoid types to suit different application requirements. For the 5/3 valves, three center functions are offered: All Ports Blocked (APB), Center Open Exhaust (COE), and Center Open Pressure (COP), providing versatile control options.

Technical Parameters:

Applications:

The Norgren VCB22 series solenoid valves are extensively utilized across a diverse range of industrial sectors due to their reliability and precision.

In the packaging machinery industry, these valves facilitate pneumatic actuation control essential for food packaging processes, carton forming, and filling lines. Their role ensures smooth and efficient operation in high-speed packaging environments.

Within automotive manufacturing , the valves are vital for air circuit switching applications, supporting welding fixtures, assembly lines, and robotic workcells. This contributes to enhanced automation and productivity in vehicle assembly.

The food and beverage sector benefits from these solenoid valves through automated control of filling equipment, labeling machines, and sorting systems, helping maintain sanitary standards and process accuracy.

In textile machinery , the valves provide pneumatic drive capabilities for looms, dyeing equipment, and fabric handling lines, enabling precise motion control and improving overall manufacturing efficiency.

For the chemical and pharmaceutical industries, Norgren VCB22 valves serve as pneumatic isolation components within process control fluid circuits. Users are advised to verify media compatibility to ensure optimal performance and safety.

The electronics and semiconductor field relies on these valves for precision pneumatic control in cleanroom equipment, printed circuit board (PCB) assembly, and inspection systems, supporting the delicate requirements of high-tech manufacturing.

In general industrial automation , the valves provide directional control necessary for machine loading and unloading, conveyors, lifts, and rotary tables, thus enhancing operational flexibility and automation capabilities.

The series is also suitable for NAMUR applications , allowing direct mounting on pneumatic actuators such as cylinders and control valves, following the NAMUR standard to facilitate modular and compact designs.

Finally, in manifold systems , the VCB22 valves enable multi-valve centralized installation through sub-bases, allowing for integrated and streamlined piping setups that simplify maintenance and reduce footprint.
