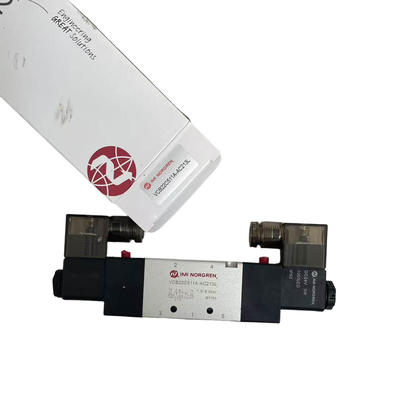

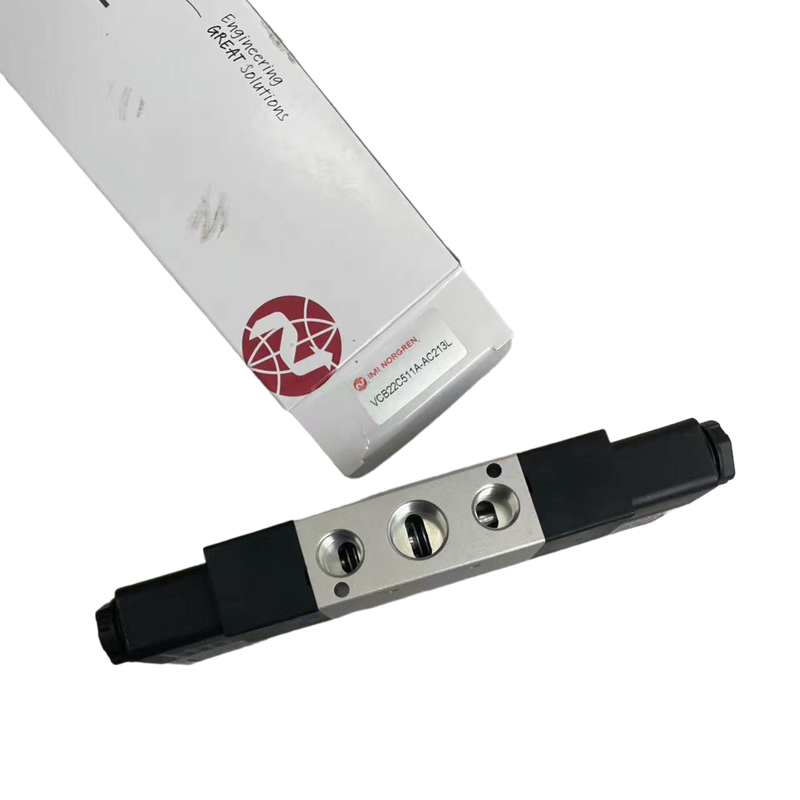

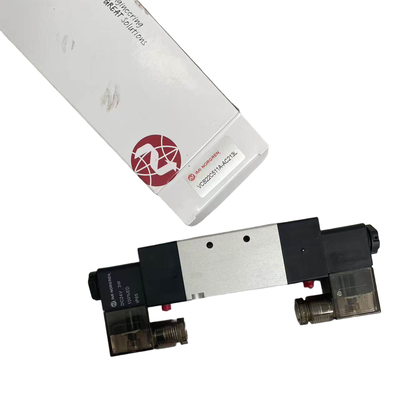

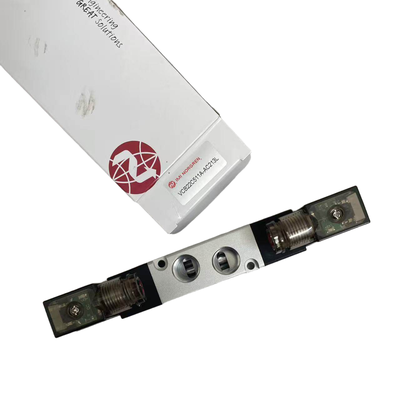

Product Description:
The IMI Norgren VCB22 Series is a high-performance solenoid-operated spool valve designed to deliver versatile directional control functions, including 3/2, 5/2, and 5/3 configurations. It caters to a broad spectrum of industrial pneumatic automation needs, making it an essential component for various applications.
This series features a compact aluminum housing, which incorporates standard LED indicator lights for easy status monitoring. It also includes an internal pilot air supply, enabling efficient operation. The valves support flow rates ranging from 245 to 3350 liters per minute, effectively meeting pneumatic circuit demands that span from miniature setups to high-flow systems.
The VCB22 Series is offered in four different valve widths — 18mm, 22mm, 27mm, and 34mm — accommodating a variety of port sizes such as M5, G1/8, G1/4, G3/8, and G1/2. Additionally, the series supports NAMUR mounting options, providing flexibility in installation. Its sub-base system design facilitates straightforward manifold assembly and simplifies maintenance processes.
Due to its robust design and adaptability, the VCB22 Series is commonly employed across numerous industries, including packaging machinery, automotive manufacturing, food and beverage processing, textile equipment, chemical processing, and general industrial automation.
Features:
Experience premium quality with Genuine IMI Norgren industrial solenoid valves, a trusted name in the industry. These valves are designed to deliver reliable performance and durability for various industrial applications.
They come in multiple directional control configurations including 3/2, 5/2, and 5/3 types, providing versatile solutions to meet your specific control needs. Additionally, you can choose from four distinct valve widths: 18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D), ensuring a perfect fit for your setup.
The valves offer a wide range of port options such as M5, G1/8, G1/4, G3/8, and G1/2, along with NAMUR-standard ports G1/4 and G3/8 to accommodate different connection requirements. This flexibility adds to their adaptability across various systems.
With a high flow capacity ranging from 245 to 3350 liters per minute at 6 bar inlet pressure (and a 1 bar pressure drop), these solenoid valves are capable of handling demanding flow conditions effectively.
Each valve is equipped with a standard LED indicator light for easy visual confirmation of power status. The inclusion of a push-and-turn manual override allows for straightforward commissioning and maintenance operations without hassle.
Designed for continuous use, these valves feature a 100% duty rating, ensuring reliable functionality during prolonged operation periods. Their IP65 protection class makes them suitable for harsh industrial environments, resisting dust and water ingress.
The robust yet lightweight aluminum housing enhances durability while keeping the overall weight manageable. NBR seals are employed to optimize performance in compressed air applications, guaranteeing effective sealing and longevity.
Installation is streamlined thanks to the sub-base mounting system, which simplifies piping arrangements and supports manifold assembly. An internal pilot air supply eliminates the need for an external pilot, reducing complexity and installation time.
The valves accommodate industrial power variations with a voltage tolerance of ±10%, ensuring stable operation despite fluctuations. Customers can select between single solenoid (spring return) models or double solenoid variants, according to their control preferences.
For the 5/3 directional valves, three center functions are available: All Ports Blocked (APB), Center Open Exhaust (COE), and Center Open Pressure (COP), providing additional control flexibility for complex pneumatic circuits.
Technical Parameters:
| Brand |
IMI Norgren |
| Functions |
3/2 NO, 3/2 NC, 5/2, 5/3 APB, 5/3 COE, 5/3 COP |
| Pilot Supply |
Internal |
| Operating Pressure |
1.5 To 8 Bar |
| Ambient/Media Temperature |
-5°C To +70°C |
| Flow Rate |
245 To 3350 L/min |
| Series |
VCB22 |
| Medium |
Compressed Air, Filtered To 40 μm, Lubricated Or Non-lubricated |
| Voltage Options |
24VDC, 24VAC, 110VAC, 220VAC, 240VAC |
| Valve Type |
Solenoid Actuated Spool Valve |
Applications:
The Norgren VCB22 series solenoid valves find extensive application across a variety of industrial sectors. Their robust design and versatile functionality make them ideal for numerous pneumatic control tasks.
In the packaging machinery industry, these valves are essential for controlling pneumatic actuators involved in food packaging, carton forming, and filling line operations. Their reliable performance ensures smooth and efficient packaging processes.
The automotive manufacturing sector relies on the VCB22 series for air circuit switching in welding fixtures, assembly lines, and robotic workcells. These valves contribute to precise and automated production workflows.
Within the food and beverage industry, the solenoid valves are used to automate controls on filling equipment, labeling machines, and sorting systems. Their application aids in maintaining high throughput and accuracy in processing.
Textile machinery also benefits from the VCB22 series through pneumatic drives for looms, dyeing equipment, and fabric handling lines. This enhances the automation and reliability of textile production.
In chemical and pharmaceutical fields, the valves provide pneumatic isolation within process control fluid circuits. It is important to verify media compatibility when using these valves in such environments to ensure safe and effective operation.
Electronics and semiconductor industries utilize the VCB22 solenoid valves for precision pneumatic control in cleanroom equipment, PCB assembly, and inspection systems. This supports high standards of cleanliness and accuracy in manufacturing.
For general industrial automation, these valves facilitate directional control in various machinery such as loading and unloading systems, conveyors, lifts, and rotary tables. Their integration helps streamline industrial processes.
The VCB22 series is also designed for NAMUR applications, allowing direct mounting on pneumatic actuators including cylinders and control valves according to NAMUR standards, ensuring standardized and simplified installation.
Finally, in manifold systems, the valves support multi-valve centralized installation via sub-bases, which enables integrated and efficient piping configurations in complex pneumatic setups.
