Product Description:

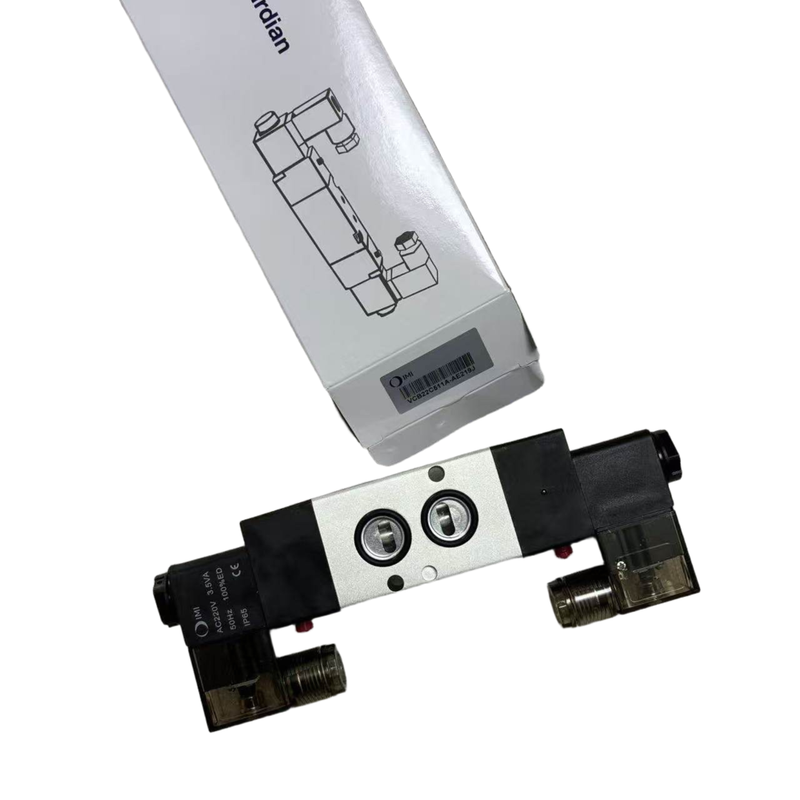

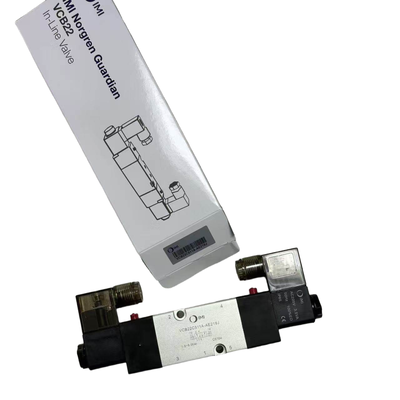

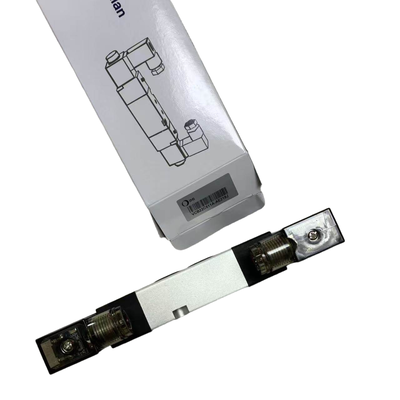

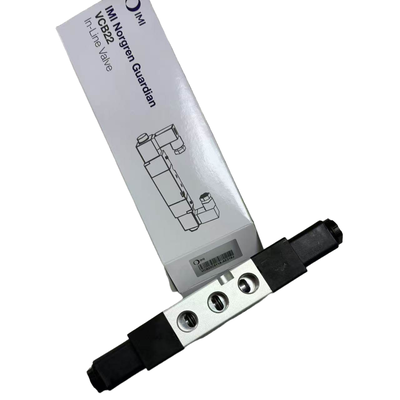

IMI Norgren VCB22 Series Solenoid Valves
The IMI Norgren VCB22 Series represents a high-performance line of solenoid actuated spool valves. Designed to provide 3/2, 5/2, and 5/3 directional control functions, these valves cater to a broad spectrum of pneumatic automation needs in industrial environments. Its compact aluminum housing is equipped with standard LED indicator lights, an internal pilot air supply, and supports flow rates ranging from 245 to 3350 liters per minute. This range makes the VCB22 series suitable for applications requiring anything from miniature circuits to high-flow pneumatic control.
The series is available in four different valve widths: 18mm, 22mm, 27mm, and 34mm. Users can select from multiple port sizes including M5, G1/8, G1/4, G3/8, and G1/2, with added flexibility through the NAMUR mounting options. Additionally, the VCB22 valves come with a sub-base system that facilitates straightforward manifold assembly and simplifies maintenance tasks.
Due to their versatility and robust design, these valves find widespread application across various industries. They are commonly employed in packaging machinery, automotive manufacturing, food and beverage processing, textile equipment, chemical processing, as well as general industrial automation projects.
Features:
Introducing the Genuine IMI Norgren industrial solenoid valves, a trusted name known for superior brand quality and reliability. These valves come in a variety of directional control configurations including 3/2, 5/2, and 5/3 to meet diverse operational requirements.
The product lineup offers four different valve widths —18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D)—allowing for precise selection based on installation needs. Additionally, the valves feature an extensive range of port options such as M5, G1/8, G1/4, G3/8, and G1/2, including specialized NAMUR ports G1/4 and G3/8 for enhanced compatibility.
Engineered for performance, these valves provide a high flow capacity ranging from 245 to 3350 liters per minute at 6 bar inlet pressure with a 1 bar pressure drop. Each unit is equipped with a standard LED indicator light for clear and immediate power status feedback, facilitating easier monitoring during operation.
For convenience in commissioning and maintenance, a push and turn to lock manual override is incorporated. The valves support 100% continuous duty rating , making them suitable for prolonged industrial operations. To withstand challenging environments, they conform to the IP65 protection class , ensuring resistance to dust and water ingress.
Constructed with a durable yet lightweight aluminum housing , these valves employ NBR seals optimized specifically for compressed air applications. Installation is simplified through a sub-base mounting system , which streamlines piping and enables straightforward manifold assembly.
The design incorporates an internal pilot air supply , eliminating the need for any external pilot sources. Furthermore, the valves feature a voltage tolerance of ±10% , accommodating typical variations in industrial power supplies without compromising performance.
Customers can choose between single solenoid (spring return) or double solenoid configurations. For the 5/3 directional control valves, three center functions are available: All Ports Blocked (APB) , Center Open Exhaust (COE) , and Center Open Pressure (COP) , providing flexibility for various operational scenarios.
Technical Parameters:
| Flow Rate |
245 To 3350 L/min |
| Operating Pressure |
1.5 To 8 Bar |
| Valve Type |
Solenoid Actuated Spool Valve |
| Ambient/Media Temperature |
-5°C To +70°C |
| Functions |
3/2 NO, 3/2 NC, 5/2, 5/3 APB, 5/3 COE, 5/3 COP |
| Brand |
IMI Norgren |
| Series |
VCB22 |
| Pilot Supply |
Internal |
| Voltage Options |
24VDC, 24VAC, 110VAC, 220VAC, 240VAC |
| Medium |
Compressed Air, Filtered To 40 μm, Lubricated Or Non-lubricated |
Applications:
The Norgren VCB22 series solenoid valves find extensive applications across a variety of industrial fields. These valves are designed to provide reliable and precise pneumatic control, making them suitable for diverse operational requirements.
In the packaging machinery sector, the VCB22 valves are utilized for pneumatic actuation control in processes such as food packaging, carton forming, and filling lines. Their efficiency ensures smooth and automated packaging operations.
Within automotive manufacturing, these solenoid valves facilitate air circuit switching for welding fixtures, assembly lines, and robotic workcells. This capability enhances production line automation and accuracy.
The food and beverage industry benefits from the VCB22 series by implementing them in automated control systems for filling equipment, labeling machines, and sorting systems. Such integration improves operational speed and consistency.
Textile machinery operations employ these valves to drive pneumatic systems for looms, dyeing equipment, and fabric handling lines. This contributes to improved automation and fabric processing efficiency.
In chemical and pharmaceutical sectors, the valves serve as pneumatic isolators within process control fluid circuits. It is important, however, to verify media compatibility to ensure safe and effective use.
Electronics and semiconductor industries rely on the VCB22 series for precision pneumatic control in cleanroom equipment, PCB assembly, and inspection systems, supporting delicate and high-accuracy manufacturing tasks.
The valves also play a critical role in general industrial automation by providing directional control for various machinery such as loading and unloading systems, conveyors, lifts, and rotary tables, thereby enhancing workflow automation.
Moreover, the VCB22 series meets NAMUR standards, allowing direct mounting on pneumatic actuators like cylinders and control valves. This compatibility simplifies installation and improves system integration.
Finally, these solenoid valves can be deployed in manifold systems through multi-valve centralized installations using sub-bases, which streamline the piping and control arrangements in complex setups.
Support and Services:
Norgren Solenoid Valves are designed to offer reliable and efficient control of fluid and air flow in a wide range of industrial applications. Our technical support team is dedicated to providing comprehensive assistance to ensure optimal performance and longevity of your solenoid valve.
We offer expert guidance on product selection, installation, operation, and maintenance to help you maximize the value of your Norgren solenoid valve. Our services include troubleshooting support, replacement part identification, and advice on system integration.
For any technical inquiries, we provide detailed product documentation, including datasheets, wiring diagrams, and installation manuals to facilitate proper setup and use. Our support team is also available to assist with custom solutions tailored to your specific application requirements.
Norgren is committed to delivering high-quality products backed by responsive and knowledgeable technical support to ensure your operations run smoothly and efficiently.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. Each valve is individually sealed in anti-static packaging to prevent damage from moisture and electrostatic discharge. The product is then placed in a custom-fit foam insert within a sturdy corrugated cardboard box designed to absorb shocks and vibrations.
For shipping, the packaged solenoid valves are securely packed into larger cartons with adequate cushioning material to prevent movement. All shipments are clearly labeled with handling instructions and product information to facilitate efficient processing and delivery. Norgren ensures that all shipments comply with international shipping regulations to guarantee timely and safe arrival at the destination.
