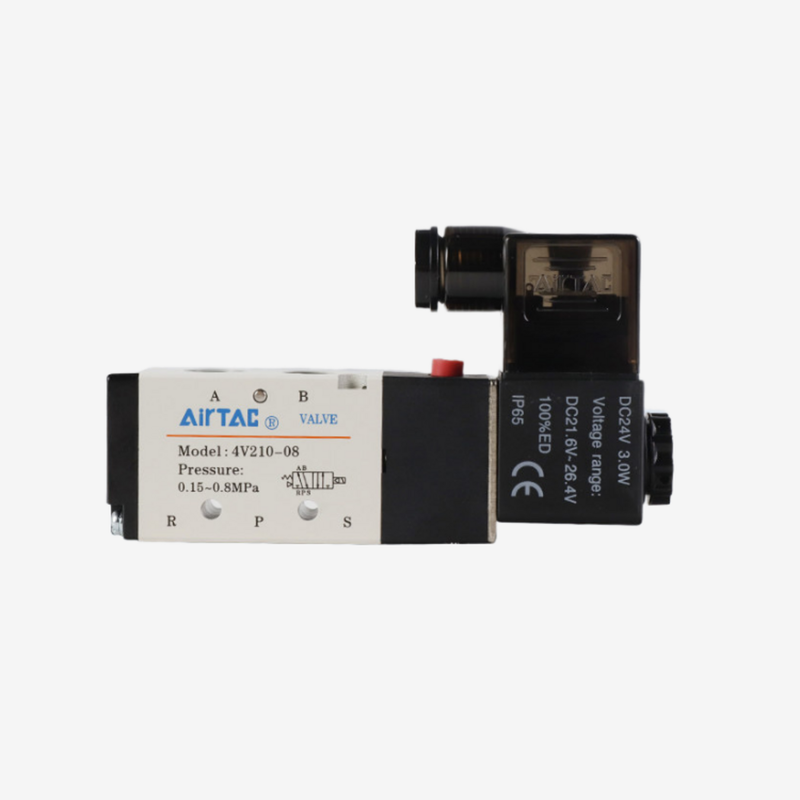

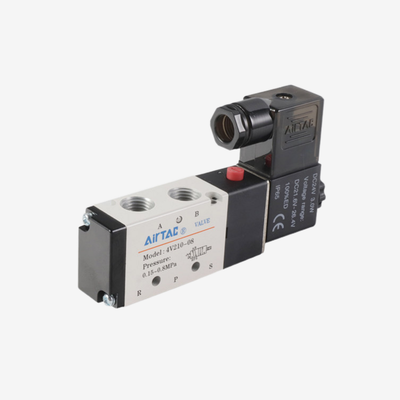

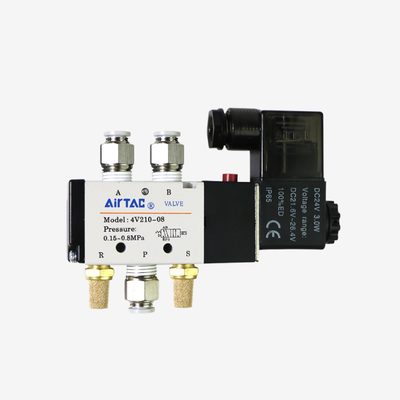

Airtac 4V110-06 Sliding Spool Air Solenoid Valve Aluminum Alloy Body No Lubrication Required Manual Override For Cylinder Pneumatic Circuit Drive

Product Description:

The 4V series offers a comprehensive selection of pilot-operated 5/2-way pneumatic solenoid valves, along with individual replacement coils and pre-assembled multi-station manifold kits. These products are engineered to provide dependable directional control of compressed air within industrial automation systems. The valve sizes range from 1/8″ to 1/2″ ports, with flow capacities (Cv) varying from approximately 0.56 up to 2.80. This variety ensures compatibility with different actuator sizes and varying speed demands.

Available configurations include complete single or double solenoid valve assemblies, valve bodies intended for manifold integration or replacements, and standalone replacement coils rated for either AC220V or DC24V power supplies—ideal for field maintenance. The multi-station manifold kits come pre-configured in arrangements spanning 2 to 10 stations, specifically for the 4V210-08 and 4V110-06 models. There are also dedicated kits for the 4V310-08 and 4V310-10 series. Their design centralizes the P (inlet) and R/S (exhaust) ports, which reduces the need for external fittings and decreases potential leak points by more than 70% compared to individual valve piping installations.

Additionally, independent wiring for each station enables the combination of AC and DC voltages within a single manifold block. This flexibility supports systems that incorporate PLC control alongside manual safety switches. The valve body is crafted from aluminum alloy and features a sliding column design that ensures a sensitive response with minimal friction. These valves do not require oil lubrication; however, if lubricated air is used, it must be supplied continuously, with ISO VG32 or an equivalent lubricant recommended.

A manual override is integrated as a standard feature to facilitate installation and troubleshooting without electrical power. The coils are rated IP65 for protection and consume roughly 3 VA (AC) or 3 W (DC), depending on the version. The valves operate within a standard pressure range of 0.15 to 0.8 MPa (21 to 114 psi), and their proof pressure ranges from 1.2 to 1.5 MPa, varying by the specific source.

Features:

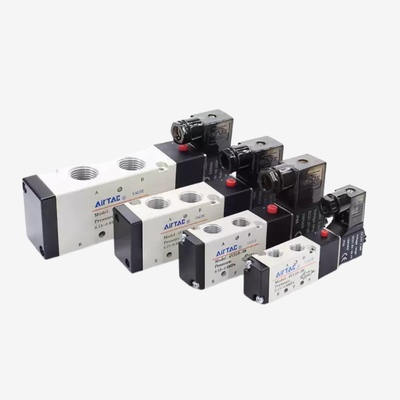

The port size ranges from 1/8″ to 1/2″, accommodating several models including 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15. This variety ensures compatibility with a wide selection of pneumatic systems and applications.

Featuring a 5/2-way pilot-operated directional control, these valves offer dependable switching functionality designed specifically for double-acting cylinders and pneumatic actuators. They provide reliable performance across diverse industrial tasks.

Users can choose between single and double solenoid options. The double solenoid models come with a memory function that maintains the valve’s position, allowing for enhanced operational control. Additionally, a valve body only option is available for situations requiring manifold integration or replacement where coils and wiring are already installed.

For maintenance and servicing needs, individual replacement coils are offered in AC220V and DC24V variants. This allows for easy field repairs without the necessity to replace the entire valve assembly, thereby reducing downtime and costs.

The product lineup includes multi-station manifold kits that come pre-assembled in configurations ranging from 2 to 10 stations. These are available for models such as 4V210-08 and 4V110-06, with additional kits for 4V310-08 and 4V310-10. These kits significantly cut down installation space requirements and assembly labor.

Centralized air logistics are streamlined through the use of unified large-diameter P and R/S ports. This design reduces the number of external fittings and potential leak points by more than 70%, enhancing system reliability and efficiency.

The design supports voltage blending on a single manifold by enabling independent station wiring. This flexibility allows a mix of AC and DC voltages to be integrated within one compact block, providing considerable convenience and adaptability.

Modular expansion is facilitated through the use of blank plates, which seal unused stations. These can be upgraded later without the need to re-plumb the main air supply, offering a scalable solution that accommodates future system growth.

Constructed from aluminum alloy, the valve body is both lightweight and durable, making it well-suited for demanding industrial environments. The sliding column structure ensures excellent sealing performance, responsive operation, and low friction.

The valves operate without the need for lubrication, simplifying maintenance procedures and preventing oil-mist contamination—a crucial feature for applications in food processing and electronics assembly. A manual override is provided as a standard feature to facilitate installation, testing, and emergency operation.

Coils are protected to IP65 standards, rendering them dust-tight and resistant to water jets, thus capable of withstanding harsh environmental conditions. The operating pressure range is from 0.15 to 0.8 MPa, making these valves suitable for a broad spectrum of pneumatic systems.

With a proof pressure rating between 1.2 and 1.5 MPa, the valves offer a reliable safety margin to handle pressure surges, ensuring durability and safe operation under challenging circumstances.

Technical Parameters:

Applications:

The 5/2-way function enables efficient extend and retract operations of pneumatic actuators, providing precise control over double-acting cylinders.

Manifold kits are designed to centralize both air supply and wiring, allowing the creation of compact control cabinets that can accommodate up to ten valve stations. This integration simplifies system layout and maintenance.

A single manifold is capable of supporting a combination of DC 24V PLC-driven stations alongside AC 220V manual safety stations, offering flexibility in control system design.

Directional control valves are extensively used in manufacturing, assembly, and packaging machinery to enhance accuracy and productivity.

Pneumatic control systems effectively manage the operation of grippers, clamps, and positioning actuators, ensuring reliable handling of materials.

The lube-free operation design prevents oil contamination on production lines, making these systems ideal for sensitive environments such as food processing and electronics assembly.

Replacement coils and valve body only options enable targeted repairs, allowing maintenance personnel to service parts of the manifold assembly without needing to replace the entire unit.

Customization:

Our AirTac 4V110-M5 pneumatic solenoid valve offers comprehensive product customization services to meet your specific requirements. As a high-quality NAMUR Solenoid Valve manufactured in China, this 5/2-way pilot-operated directional control valve features a durable aluminum alloy body and coil protection rated at IP65, ensuring reliable performance in various industrial applications.

We provide multiple coil voltage options, including DC12V, DC24V, AC110V, and AC220V, allowing you to select the ideal power supply for your system. The valve comes with a standard manual override for added operational flexibility. This G1/4 pneumatic solenoid valve is CE certified, guaranteeing compliance with international quality standards.

Our minimum order quantity is just 1 piece, with pricing available upon negotiation to suit your budget. Packaging is done carefully in cartons to ensure safe delivery. We maintain a supply ability of 5000 pieces per month and offer fast delivery within 1-7 work days after payment. Payment terms include T/T, Western Union, and PayPal for your convenience.

Whether you require customization in coil voltage, manual override options, or specific packaging needs, our team is ready to assist you in tailoring the NAMUR Solenoid Valve to your exact specifications, ensuring optimal integration and performance in your pneumatic systems.
