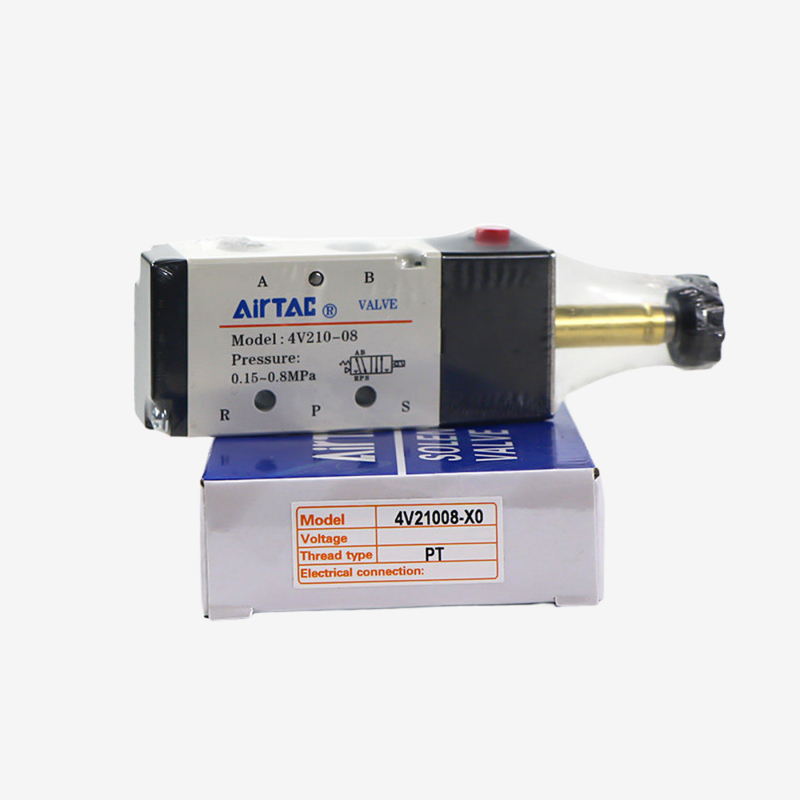

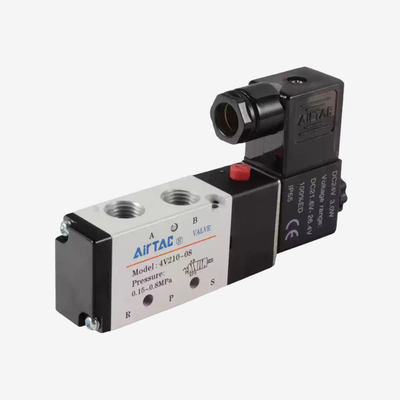

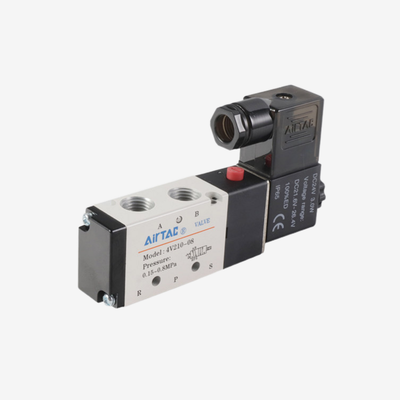

Airtac 4V210-08 Single Valve Body 5/2 Way Pneumatic Directional Valve 1/4 Inch Thread Port Aluminum Alloy Sliding Spool For Separate Coil Assembly Replacement

Product Description:

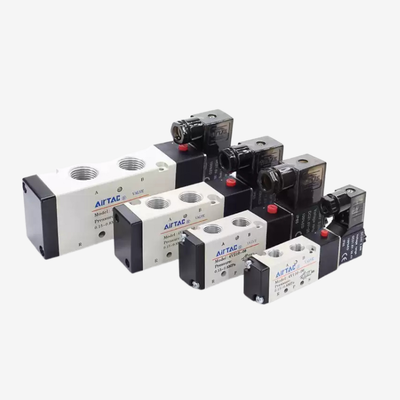

The 4V series offers a comprehensive selection of pilot-operated 5/2-way pneumatic solenoid valves, along with individual replacement coils and pre-assembled multi-station manifold kits. These components are engineered to provide reliable directional control of compressed air in various industrial automation applications. The valves come in a range of port sizes, from 1/8″ up to 1/2″, and feature flow capacities (Cv) that increase from about 0.56 to 2.80. This variety ensures compatibility with different actuator sizes and meets diverse speed requirements.

These valves are available in several configurations, including complete single or double solenoid assemblies, valve bodies for manifold integration or replacement, and standalone AC220V or DC24V coils for field servicing. The multi-station manifold kits are offered in pre-configured arrangements ranging from 2 to 10 stations for the 4V210-08 and 4V110-06 models. Dedicated kits are also accessible for the 4V310-08 and 4V310-10 series. The manifold design optimizes the placement of the P (inlet) and R/S (exhaust) ports, significantly reducing external fittings and potential leak points by over 70% compared to individual valve piping.

The wiring for each station is independent, allowing the integration of both AC and DC voltages on a single manifold block. This flexibility supports systems that combine PLC control with manual safety switches seamlessly. The valve body is crafted from aluminum alloy and features a sliding column structure that ensures sensitive responsiveness and minimal friction. Notably, these valves do not require oil lubrication. If lubricated air is used, it should be supplied continuously, with ISO VG32 or an equivalent lubricant recommended.

For installation and debugging without the need for electrical power, a manual override is included as a standard feature. The coils have an IP65 rating and consume approximately 3 VA for AC variants or 3 W for DC versions, depending on the specific coil type. The valves operate within a standard pressure range of 0.15 to 0.8 MPa (21 to 114 psi), with a proof pressure varying between 1.2 and 1.5 MPa depending on the source.

Features:

The port sizes available range from 1/8″ to 1/2″, accommodating models such as 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15. This wide range ensures compatibility across various pneumatic systems.

This series features 5/2-way pilot-operated directional control valves, which guarantee reliable switching performance for double-acting cylinders and pneumatic actuators. Both single and double solenoid variants are offered. Notably, double solenoid models provide a memory function, allowing the valve to maintain its position when power is off.

Options include only the valve body, designed for manifold integration or replacements where the coils and wiring are already installed. Additionally, individual replacement coils are available in AC220V and DC24V, facilitating field servicing without the need to replace the entire valve unit.

For streamlined installation, multi-station manifold kits are provided. These pre-assembled configurations support from 2 to 10 stations for models 4V210-08 and 4V110-06, as well as kits for 4V310-08 and 4V310-10. This approach helps reduce installation space and assembly time significantly.

The design includes centralized air logistics with unified large-diameter P and R/S ports, which cut down on external fittings and potential leak points by over 70%. Furthermore, independent station wiring enables voltage blending on a single manifold, allowing AC and DC voltages to coexist efficiently on one compact block.

Modularity is enhanced through the use of blank plates that seal unused stations. These can be easily upgraded later without the need to re-plumb the main air supply, ensuring flexible expansion capabilities.

The valve body is constructed from aluminum alloy, combining light weight with durability suitable for demanding industrial environments. Its sliding column structure ensures excellent sealing and sensitive response while maintaining low friction.

This product operates without lubrication, simplifying maintenance and preventing issues such as oil-mist contamination in sensitive settings like food or electronics assembly. A manual override is included as standard, aiding installation, debugging, and emergency operations.

Coils are protected to IP65 standards, making them dust-tight and resistant to water jets, ensuring reliable performance in harsh conditions. The operating pressure range spans 0.15 to 0.8 MPa, making it compatible with a wide array of industrial pneumatic systems, with proof pressure rated between 1.2 and 1.5 MPa to provide a safety margin against pressure surges.

Technical Parameters:

Applications:

The 5/2-way function enables precise extend and retract operations for pneumatic actuators, ensuring efficient control of double-acting cylinders. This setup allows for smooth and reliable movement, essential in various industrial applications.

Manifold kits are designed to centralize air supply and wiring, creating compact control cabinets that can accommodate up to ten valve stations. This integration simplifies installation and maintenance, streamlining automation processes involving multiple cylinders.

A single manifold is capable of supporting both DC 24V PLC-driven stations and AC 220V manual safety stations. This flexibility enables seamless integration of diverse control requirements within a unified system, enhancing overall operational efficiency.

Directional control solutions are widely used in manufacturing, assembly, and packaging machinery. These technologies contribute to enhanced precision and productivity across various stages of industrial production.

Control systems effectively manage grippers, clamps, and positioning actuators involved in material handling tasks. Such control ensures accurate and safe manipulation of materials throughout logistical operations.

The lube-free operation of these pneumatic control systems prevents oil contamination on production lines, which is critical in food processing and electronics assembly environments. This feature maintains product quality and meets stringent cleanliness standards.

Replacement options such as coils and valve bodies enable targeted repairs without the need to replace the entire manifold assembly. This approach reduces downtime and maintenance costs during field servicing and system retrofitting.

Customization:

Our AirTac 4V110-M5 NAMUR Solenoid Valve offers exceptional product customization services to meet your specific pneumatic control needs. Manufactured in China and CE certified, this G1/4 pneumatic solenoid valve supports a minimum order quantity of just 1 piece, making it ideal for both small and large scale applications.

We provide flexible coil voltage options including DC12V, DC24V, AC110V, and AC220V to suit various power requirements. The valve is designed for filtered air (40 μm) with an operating pressure range of 0.15–0.8 MPa (21–114 Psi), ensuring reliable performance under diverse conditions.

Featuring an IP65 coil protection rating and a standard manual override, this NAMUR Solenoid Valve guarantees durability and ease of maintenance. Our packaging details include secure carton packaging to ensure safe delivery within 1-7 work days after payment.

We accept multiple payment terms such as T/T, Western Union, and Paypal, and offer competitive pricing through negotiation. With a supply ability of 5000 pieces per month, we are well-equipped to fulfill your orders promptly.

Choose our AirTac 4V110-M5 G1/4 pneumatic solenoid valve for reliable, customizable pneumatic solutions tailored to your operational needs.
