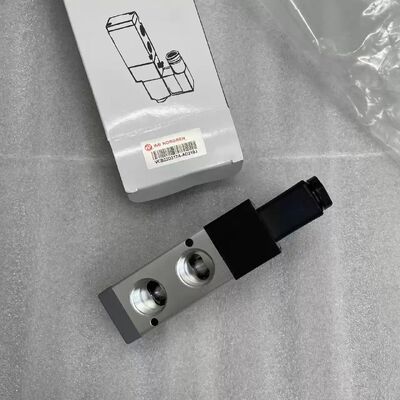

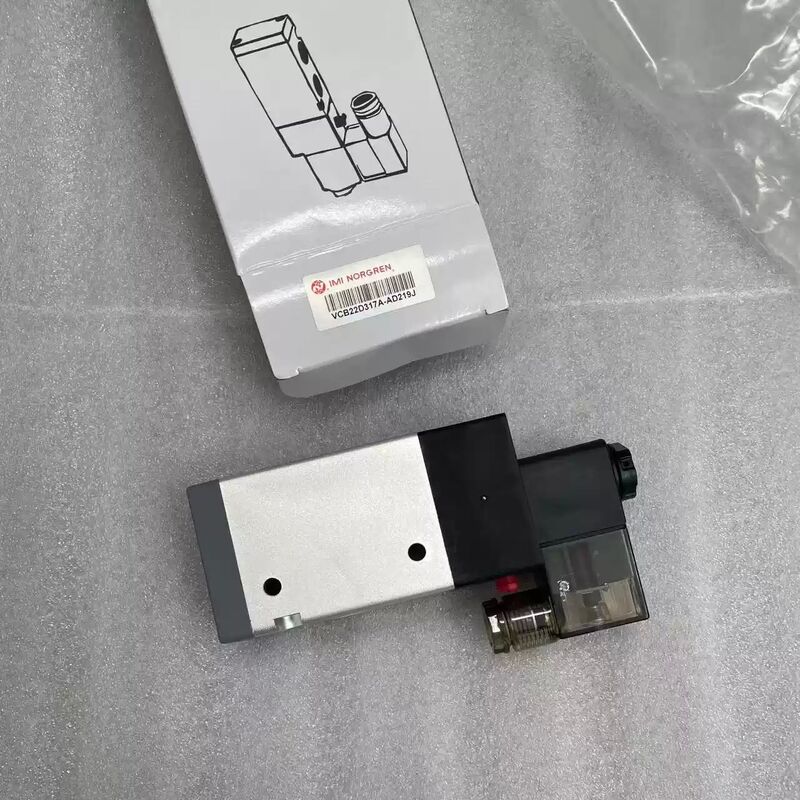

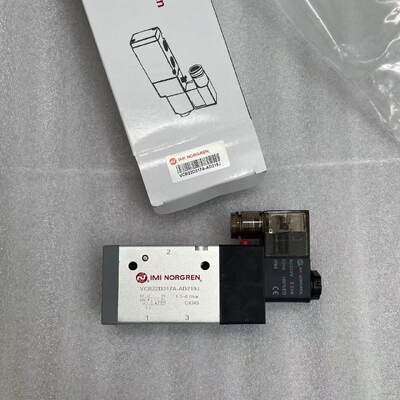

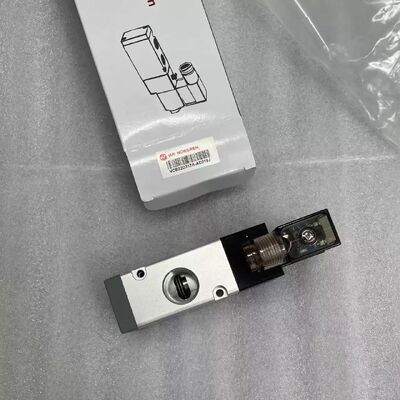

Product Description:
The IMI Norgren VCB22 Series is a high-performance solenoid-operated spool valve designed to deliver reliable directional control for various pneumatic automation applications. It offers versatile configurations including 3/2, 5/2, and 5/3 control functions, making it suitable for a broad spectrum of industrial uses.
Constructed with a compact aluminum housing, the VCB22 Series comes equipped with standard LED indicator lights and an internal pilot air supply. It supports flow rates ranging from 245 to 3350 liters per minute, effectively meeting the needs of pneumatic circuits from small-scale to high-flow operations.
This series is available in four different valve widths—18mm, 22mm, 27mm, and 34mm—along with various port sizes such as M5, G1/8, G1/4, G3/8, and G1/2. Additionally, NAMUR mounting options are offered, enhancing its compatibility. The valves also feature a sub-base system that facilitates straightforward manifold assembly and simplifies maintenance processes.
IMI Norgren VCB22 valves are commonly utilized across a range of industries, including packaging machinery, automotive manufacturing, food and beverage processing, textile equipment, chemical processing, and general industrial automation, reflecting their adaptability and robust performance.
Features:
Introducing the authentic IMI Norgren industrial solenoid valves, renowned for their reliable and trusted brand quality. These valves are designed to meet stringent industrial requirements, ensuring superior performance and durability.
They come in various directional control configurations, including 3/2, 5/2, and 5/3 options, allowing for versatile application across different pneumatic systems. Additionally, there are four valve widths available to suit your specific needs: 18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D).
A wide range of port sizes enhances compatibility, featuring M5, G1/8, G1/4, G3/8, G1/2 , along with NAMUR G1/4 and G3/8 port options. These valves provide a high flow capacity, ranging from 245 to 3350 liters per minute at 6 bar inlet pressure with a 1 bar pressure drop, making them suitable for demanding industrial applications.
For user convenience, an LED indicator light is standard to clearly show power status. The manual override feature is designed with a push and turn to lock mechanism, facilitating easy commissioning and maintenance tasks.
These solenoid valves boast a 100% continuous duty rating , allowing for long-lasting operation without performance degradation. Their robust construction includes an IP65 protection class , making them ideal for use in harsh industrial environments.
The housing is made from lightweight yet sturdy aluminum , and the valves are sealed with NBR seals specifically engineered for compressed air service. A sub-base mounting system simplifies piping arrangements and enables convenient manifold assembly.
An internal pilot air supply is incorporated, eliminating the need for any external pilot source. The valves also tolerate voltage variations of ±10%, accommodating fluctuations commonly encountered in industrial power supplies.
Available in both single solenoid (spring return) and double solenoid versions, these valves offer flexibility to meet diverse control needs. Additionally, three different 5/3 center functions are offered: All Ports Blocked (APB) , Center Open Exhaust (COE) , and Center Open Pressure (COP) , catering to various operational requirements.
Technical Parameters:
| Functions |
3/2 NO, 3/2 NC, 5/2, 5/3 APB, 5/3 COE, 5/3 COP |
| Valve Type |
Solenoid Actuated Spool Valve |
| Operating Pressure |
1.5 To 8 Bar |
| Brand |
IMI Norgren |
| Medium |
Compressed Air, Filtered To 40 μm, Lubricated Or Non-lubricated |
| Series |
VCB22 |
Applications:
The Norgren VCB22 series solenoid valves find extensive usage across a variety of industrial sectors. These valves are designed to provide reliable pneumatic control in numerous applications, enhancing efficiency and automation in diverse environments.
In the packaging machinery industry, they are employed for pneumatic actuation control within food packaging processes, carton forming, and filling lines. Their precise control helps streamline production workflows and maintain consistent quality.
Within automotive manufacturing , the VCB22 valves manage air circuit switching for welding fixtures, assembly lines, and robotic workcells. This enables smooth operation of complex manufacturing processes and supports high-volume production.
The valves also serve the food and beverage sector by automating control for filling equipment, labeling machines, and sorting systems. Their application ensures accurate and hygienic handling of products.
In the realm of textile machinery , these solenoid valves drive pneumatic functions for looms, dyeing equipment, and fabric handling lines, contributing to enhanced production speed and fabric quality.
For chemical and pharmaceutical industries, the valves provide pneumatic isolation within process control fluid circuits. It is important to verify media compatibility to guarantee optimal performance and safety in handling various substances.
The electronics and semiconductor sectors utilize VCB22 valves for precision pneumatic control in cleanroom equipment, printed circuit board (PCB) assembly, and inspection systems, where exacting control standards are critical.
In general industrial automation , these solenoid valves offer directional control for functions such as machine loading and unloading, conveyor systems, lifts, and rotary tables, thereby facilitating seamless automation.
Additionally, the valves conform to NAMUR standards for direct mounting on pneumatic actuators, including cylinders and control valves, ensuring compatibility and standardized installation.
Finally, in manifold systems , multiple valves can be centrally installed via sub-bases to create integrated piping arrangements, optimizing space and simplifying maintenance.
