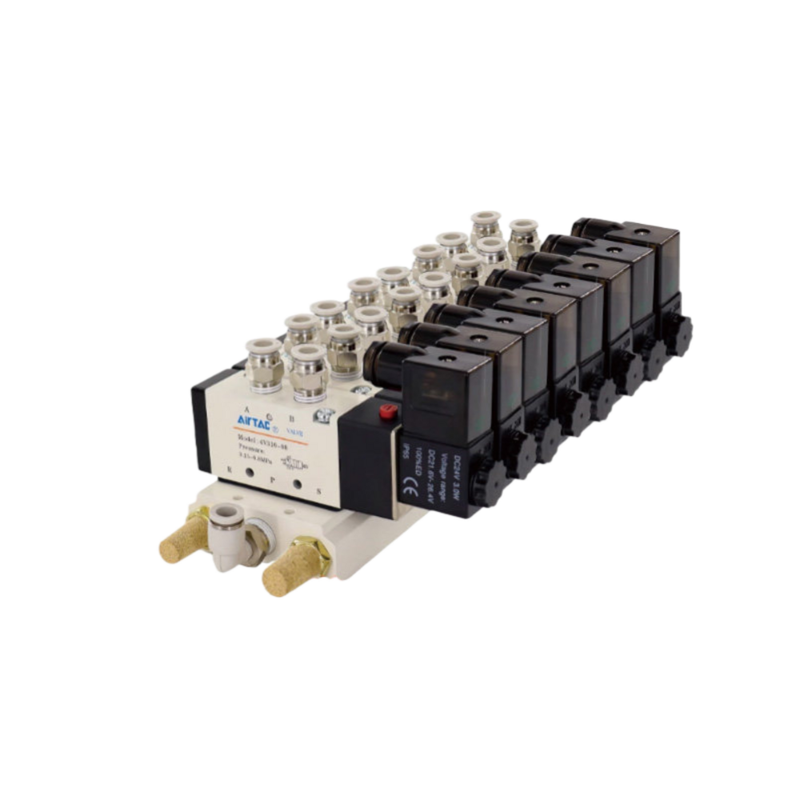

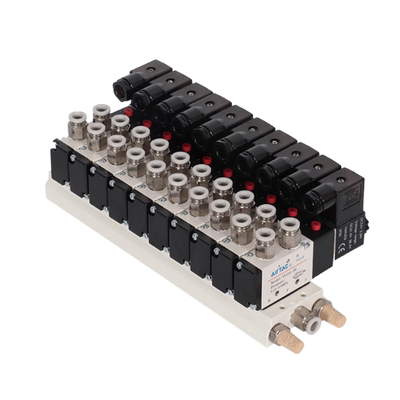

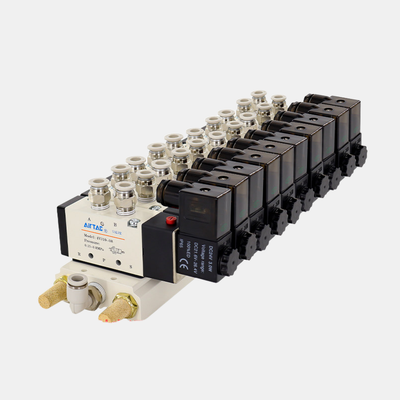

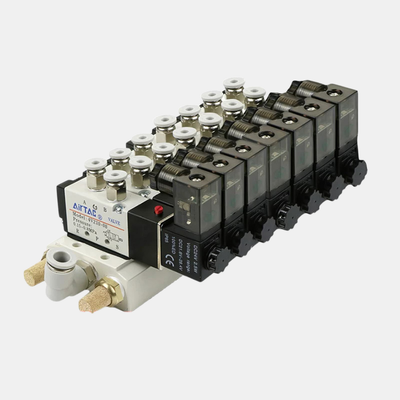

Airtac 4V310-08 Pneumatic Control Solenoid Valve Manifold Kit 7 8 9 10 Station Valve Island Manual Override Function Multiple Voltage Options For Machine Debugging

Product Description:

The 4V series features a broad selection of pilot-operated 5/2-way pneumatic solenoid valves, along with individual replacement coils and pre-assembled multi-station manifold kits. These components are designed to ensure dependable directional control of compressed air within various industrial automation applications. This valve lineup accommodates port sizes ranging from M5 and 1/8″ up to 1/2″. The effective cross-sectional area spans from 12 mm² to 50 mm², while the flow coefficients (Cv) vary between 0.56 and 2.80, enabling compatibility with different actuator dimensions and speed demands.

Available configurations include complete single or double solenoid valve assemblies, valve bodies for manifold integration or replacement purposes, as well as standalone replacement coils with AC220V or DC24V ratings designed for field maintenance. Multi-station manifold kits come pre-arranged to support 2 through 10 stations for models 4V210-08 and 4V110-06. Additionally, specialized kits exist for the 4V310-08 and 4V310-10 series. This integrated manifold design merges several valves onto one robust base, streamlining installation processes and conserving valuable space in compact control cabinets.

The system benefits from centralized supply and exhaust ports, which minimize the need for external fittings and reduce potential leak points compared to wiring individual valves separately. Moreover, independent wiring of each station allows mixing AC and DC voltages within a single manifold block. This capability offers increased flexibility when combining programmable logic controller (PLC) controls with manual safety stations in the same system.

Constructed from aluminum alloy, the valve body incorporates a sliding column structure that ensures effective sealing and a sensitive response. The internal bore undergoes specialized machining to lessen friction, resulting in a low starting pressure and extended service life. These valves do not require oil lubrication; however, if lubricated air is employed, it must be supplied continuously, with ISO VG32 or an equivalent lubricant recommended. A manual override feature is included as standard, facilitating installation and troubleshooting even in the absence of electrical power.

The coils are rated at IP65 protection level, consuming about 3 VA for AC versions or 3 W for DC versions, depending on the specific variant. Standard operating pressure ranges from 0.15 to 0.8 MPa (21 to 114 psi), with a proof pressure rating of 1.2 MPa (175 psi). The valves can operate effectively within a temperature span of -20°C to +70°C, making them suitable for a wide range of industrial environments.

Features:

The port size options range from M5 and 1/8″ up to 1/2″, accommodating various models such as 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15. This wide range ensures compatibility with diverse pneumatic systems.

Featuring a 5/2-way pilot-operated directional control design, these valves provide reliable switching capabilities for double-acting cylinders and pneumatic actuators. Both single and double solenoid variants are available, with the double solenoid models offering a memory function that helps maintain position holding.

For flexibility in installation, there is a valve body only option which is ideal for manifold integration or replacement situations where coils and wiring are already installed. Additionally, individual replacement coils are available in AC220V and DC24V variants, enabling field servicing without the need to replace the entire valve assembly.

Multi-station manifold kits come pre-assembled in configurations from 2 to 10 stations for models such as 4V210-08 and 4V110-06, as well as for 4V310-08 and 4V310-10. These kits help reduce installation space and assembly time, enhancing efficiency in system setup.

The integrated manifold base supports multiple valves consolidated on a single robust base, featuring centralized supply and exhaust ports. Additionally, the system allows voltage blending on a single manifold; independent station wiring makes it possible to mix AC and DC voltages within one compact block.

Constructed from aluminum alloy, the valve bodies offer a lightweight yet durable solution suitable for industrial environments. The sliding column structure ensures excellent sealing and sensitive response through low friction operation. The valves also operate without lubrication, which simplifies maintenance and prevents oil-mist contamination—particularly beneficial in food processing or electronics assembly.

Each valve includes a manual override as a standard feature, facilitating easier installation, debugging, and emergency operation. The coil protection rating of IP65 ensures the valves are dust-tight and resistant to water jets, making them suitable for demanding industrial conditions.

Operating pressure ranges between 0.15 and 0.8 MPa, making these valves compatible with a broad spectrum of pneumatic systems. A proof pressure rating of 1.2 MPa is provided to withstand pressure surges safely.

Designed to function within a wide temperature range from -20°C to +70°C, these valves meet the requirements of standard industrial ambient conditions.

Technical Parameters:

Applications:

The 5/2-way function enables precise extend and retract operations for pneumatic actuators, offering reliable control over double-acting cylinders in various industrial applications.

Manifold kits are designed to centralize air supply and wiring, allowing for compact control cabinets that can accommodate up to 10 valve stations. This centralization simplifies system integration and enhances efficiency.

A single manifold can be equipped to support both DC 24V PLC-driven valve stations and AC 220V manual safety stations. This flexibility helps in managing different voltage requirements within one integrated system.

Directional control valves are widely used in manufacturing, assembly, and packaging machinery, providing essential movement and positioning functions in automated processes.

Control systems are utilized for operating grippers, clamps, and positioning actuators, facilitating efficient and precise handling of materials within automated workflows.

The lube-free operation of these pneumatic components prevents oil contamination, ensuring cleanliness and safety on production lines, particularly important in food and electronics manufacturing.

Maintenance is simplified through options that allow replacement of coils or valve bodies only, enabling targeted repairs without the need to replace the entire manifold assembly, thereby reducing downtime and costs.

Customization:

Our AirTac 4V210-08 pneumatic solenoid valve offers comprehensive product customization services to meet your specific requirements. As a high-quality solenoid valve originating from China and CE certified, this G1/4 pneumatic solenoid valve is designed with an aluminum alloy body for durability and efficiency in various pneumatic valve applications.

We provide flexible coil voltage options including DC24V, AC110V, and AC220V to ensure compatibility with your system. The valve is engineered to handle filtered air (up to 40 μm) with a fast response time of ≤0.03 seconds, making it ideal for precise pneumatic control.

The standard seal material is NBR, but customization is available based on your operational needs. Packaging is done securely in cartons to protect the product during transit.

Our minimum order quantity is just 1 piece, with a supply ability of 5000 pieces per month, ensuring prompt delivery within 1-7 work days after payment. We accept multiple payment terms including T/T, Western Union, and Paypal, and pricing is negotiable to accommodate your budget.

Contact us today to customize your AirTac 4V210-08 solenoid valve and optimize your pneumatic valve system with reliable, high-performance components.

Support and Services:

Our Pneumatic Solenoid Valve product is designed for reliable and efficient control of pneumatic systems. To ensure optimal performance, we provide comprehensive technical support and services tailored to your needs.

Technical support includes assistance with installation, operation, troubleshooting, and maintenance of the solenoid valve. Our experts are available to guide you through the setup process and help resolve any issues that may arise during usage.

We offer detailed product documentation, including user manuals, wiring diagrams, and specification sheets, to help you understand the product features and capabilities thoroughly.

For maintenance, we recommend regular inspection of the valve components to prevent wear and ensure longevity. Replacement parts and repair services are available to minimize downtime and maintain system efficiency.

Additionally, we provide customized solutions and consultation services to help integrate the Pneumatic Solenoid Valve into your specific applications effectively.

Our commitment is to deliver high-quality support and services to maximize the performance and reliability of your pneumatic control systems.
